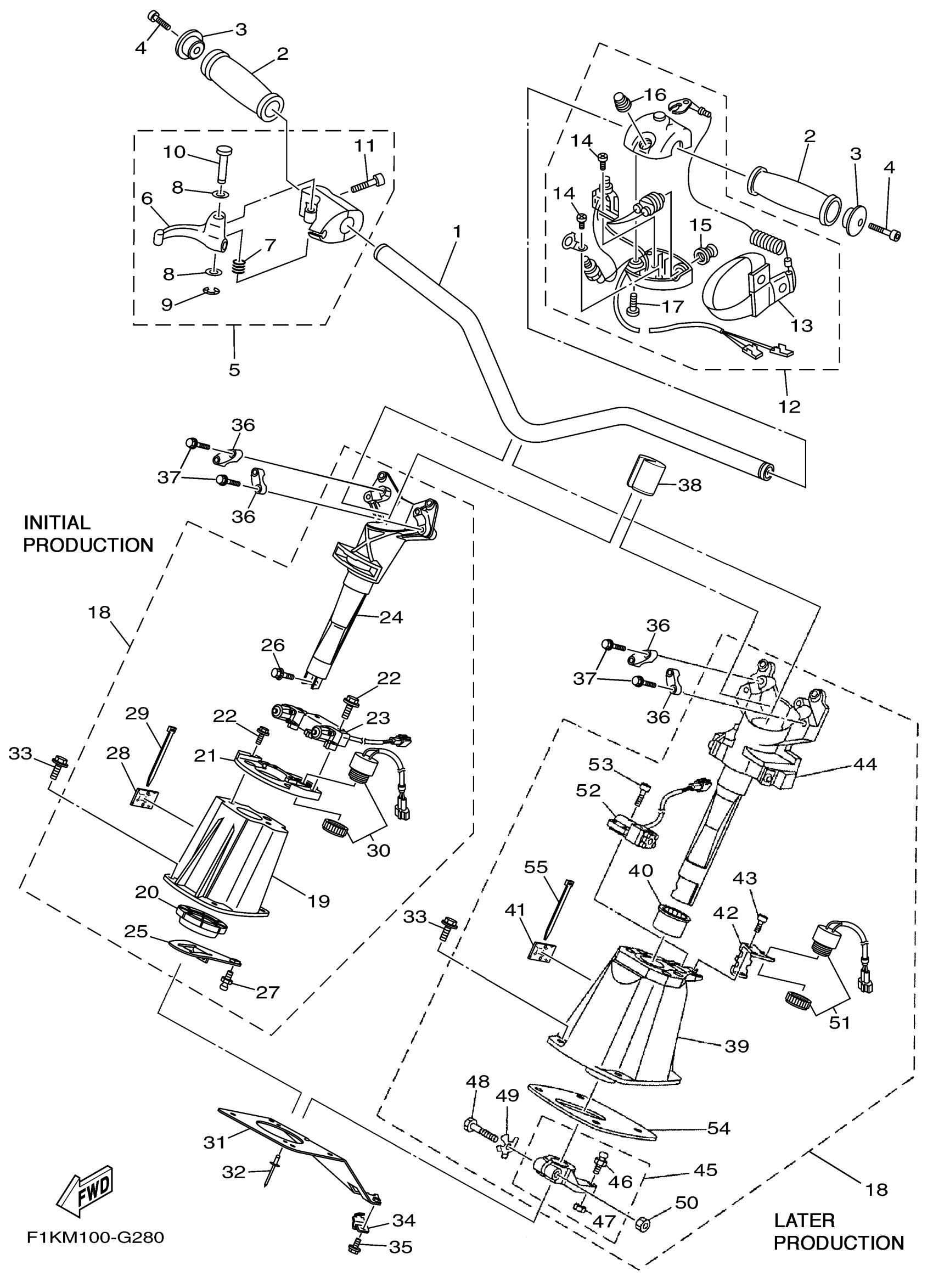

Yamaha VX1100G (WaveRunner VX) F1KV 2008 STEERING 1 Diagram
#
1
HANDLE
F2N-U1552-00-00
Unavailable
2
GRIP, HANDLE
GP7-U155D-01-00
Unavailable
3
GRIP, END
GP7-U155F-00-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-05908-00
Unavailable
5
THROTTLE LEVER ASSY
F0D-67250-10-00
Unavailable
6
LEVER, THROTTLE
F0D-67255-02-00
Unavailable
7
. SPRING
EW2-67256-00-00
Unavailable
8
WASHER, PLAIN (646)
92990-05600-00
$0.80
9
CIRCLIP (EU0)
99080-04600-00
Unavailable
10
. SHAFT
F0D-67257-00-00
Unavailable
11
. BOLT, THROTTLE
F1X-6725F-01-00
Unavailable
12
SWITCH BOX ASSY
FK7-68310-07-00
Unavailable
13
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
14
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
15
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
16
. START BUTTON COMP
FK7-68313-02-00
Unavailable
17
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
18
STEERING MASTER AS
F2X-61400-14-00
Unavailable
18
STEERING MASTER AS
F2X-61400-14-00
Unavailable
19
. HOUSING ASSY
F1K-6152M-00-00
Unavailable
20
. SEAL, RUBBER
F1K-U143C-00-00
Unavailable
21
. SPACER, BRACKET
F1K-U146H-01-00
Unavailable
22
BOLT, WITH WASHER
90119-08826-00
Unavailable
23
. SENSOR ASSY
F1B-68303-10-00
Unavailable
24
. COLUMN, STEERING
F1K-U1541-02-00
Unavailable
25
. ARM, STEERING
F1K-U151B-02-00
Unavailable
26
BOLT, WITH WASHER
90119-08826-00
Unavailable
27
STUD, JOINT BALL
GH3-U146E-00-00
Unavailable
28
BASE, CLAMP
90600-900U6-00
Unavailable
29
BAND
90601-200U1-00
Unavailable
30
BUZZER
F1S-68341-00-00
Unavailable
31
BRACKET,STOPPER CABLE
F1K-U1467-01-00
Unavailable
32
RIVET, BLIND
90267-48806-00
Unavailable
33
BOLT,WITH WASHER
90119-08870-00
Unavailable
34
STOPPER, CABLE
F1K-U1468-03-00
Unavailable
35
BOLT, WITH WASHER
90119-06830-00
Unavailable
36
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
37
BOLT, WITH WASHER
90119-089U1-00
Unavailable
38
PLUG
F1K-U1949-00-00
Unavailable
39
. HOUSING ASSY
F1K-6152M-00-00
Unavailable
40
. BUSH
F1K-6134M-00-00
Unavailable
41
. BASE, CLAMP
F1K-682M-00-00
Unavailable
42
. SPACER, BRACKET
F1K-6146H-00-00
Unavailable
43
SCREW
F1B-613C1-10-00
Unavailable
44
. SHAFT ASSY
F1K-67410-00-00
Unavailable
45
ARM ASSY.
F1K-6153R-01-00
Unavailable
46
STUD, JOINT BALL
EU0-61461-02-00
Unavailable
47
NUT, SELF-LOCKING
95720-06300-00
Unavailable
48
.. BOLT
F1K-61355-00-00
Unavailable
49
. PLATE, RETAINING
F1K-6142B-00-00
Unavailable
50
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
51
BUZZER
F1S-68341-00-00
Unavailable
52
. SENSOR ASSY
F1W-68303-00-00
Unavailable
53
BOLT
F1W-61516-10-00
Unavailable
54
. SEAL, RUBBER
F1K-6143C-00-00
Unavailable
55
BAND
90601-200U1-00
Unavailable
