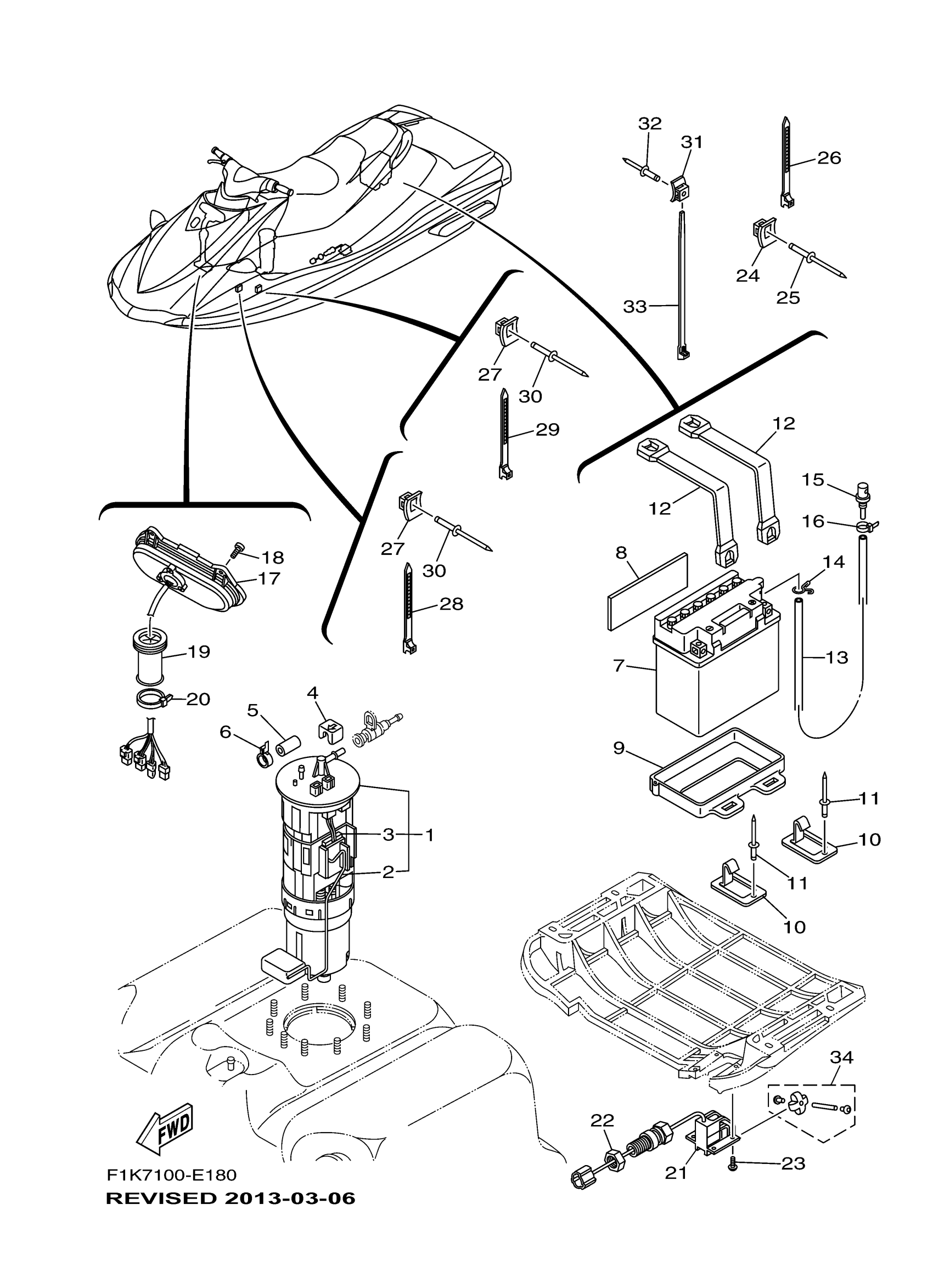

Yamaha VX1100G (WaveRunner VX) F1KV 2008 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

COVER

60E-24474-00-00

Unavailable

5

PLUG

6D3-24481-00-00

Unavailable

6

CLIP

6D3-24387-00-00

Unavailable

7

BATTERY ASSY

EU0-82110-08-00

Unavailable

8

PAD, BATTERY

F1K-U8221-00-00

Unavailable

9

CASE, BATTERY

F1K-U8211-01-00

Unavailable

10

HOOK A

F1K-U5772-01-00

Unavailable

11

RIVET (EU0)

90267-48938-00

Unavailable

12

BAND, BATTERY 1

F1K-U821D-01-00

Unavailable

13

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

14

CLIP

90467-089U1-00

Unavailable

15

NIPPLE

GJ3-6215F-00-00

Unavailable

16

CLAMP

90465-10098-00

Unavailable

17

METER ASSY

F1K-6820A-12-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

19

GROMMET

GU2-6822E-01-00

Unavailable

20

CLAMP

90464-32801-00

Unavailable

21

SENSOR SPEED

F1S-U8K31-03-00

Unavailable

22

. NUT, DRAIN 1

EU0-62241-30-00

Unavailable

23

SCREW, ROUND HEAD

90150-05807-00

Unavailable

24

CLAMP COMP (EU0)

90600-91736-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

Unavailable

26

CLAMP

90464-32801-00

Unavailable

27

CLAMP COMP (EU0)

90600-91736-00

Unavailable

28

CLAMP

90464-32801-00

Unavailable

29

BAND

90601-200U2-00

Unavailable

30

RIVET, BLIND

90267-489U6-00

Unavailable

31

CLAMP COMP (EU0)

90600-91736-00

Unavailable

32

RIVET, BLIND

90267-489U6-00

Unavailable

33

CLAMP

90464-32801-00

Unavailable

34

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

Unavailable
