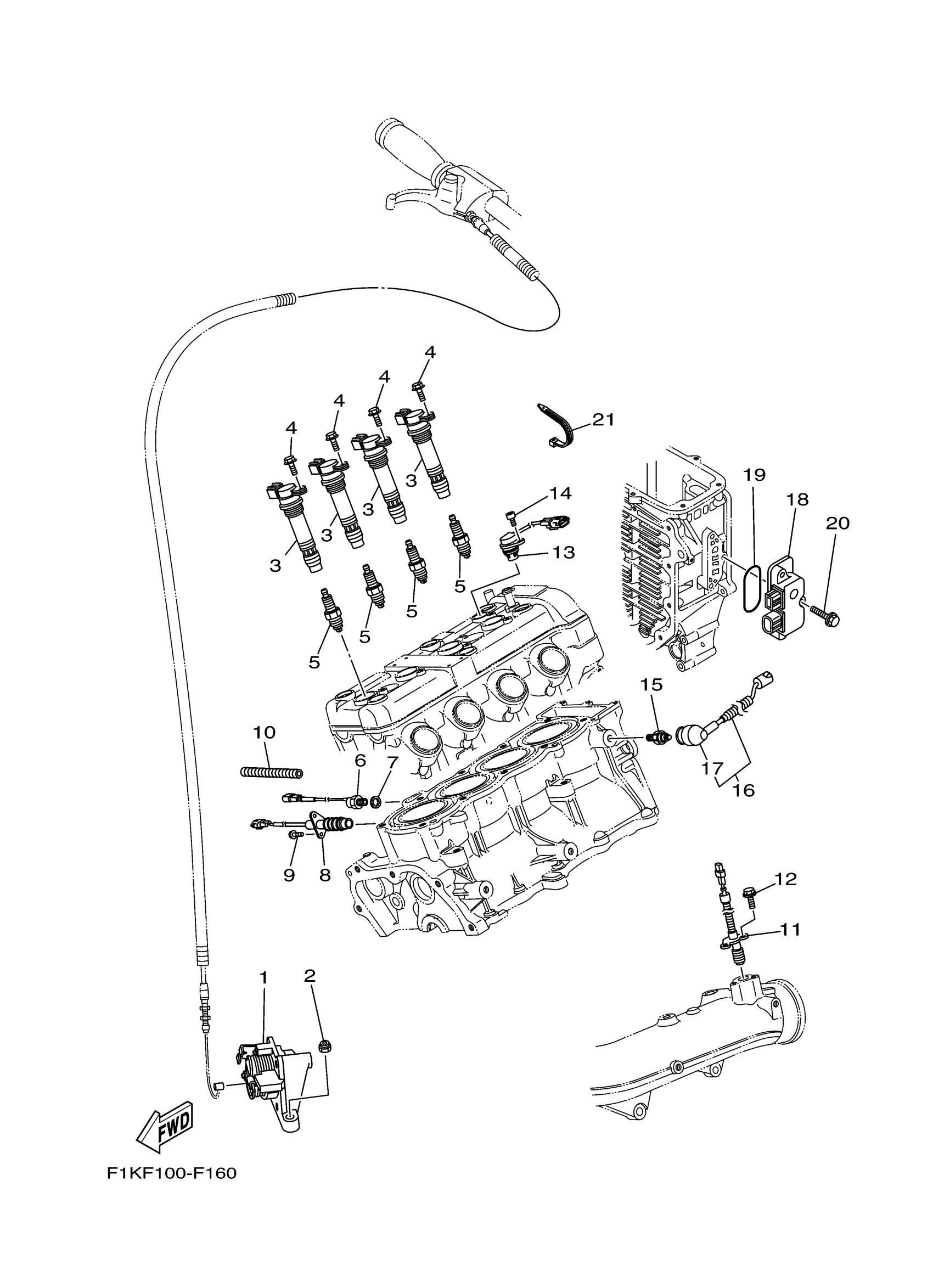

Yamaha VX1100G (WaveRunner VX) F1KV 2008 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

Unavailable

2

NUT, NYLON (6J8)

95780-08300-00

Unavailable

3

IGNITION COIL ASSY

6D3-82310-01-00

Unavailable

4

BOLT, FLANGE(JL8)

95880-06016-00

$4.55

5

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

6

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

7

WASHER, PLATE

92990-10600-00

Unavailable

8

THERMO SWITCH ASSY

60E-82560-A1-00

Unavailable

9

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

10

TUBE

EU0-67731-00-00

Unavailable

11

THERMO SWITCH ASSY

6D3-82560-01-00

Unavailable

12

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

13

SENSOR, CAM POSITION

6D3-85896-01-00

Unavailable

14

BOLT,SOCKET

91380-06016-00

Unavailable

15

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

16

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

17

CAP

60E-82532-01-00

Unavailable

18

EARTH PLATE COMP.

6D3-8273J-02-00

Unavailable

19

O-RING

93210-60ME8-00

Unavailable

20

BOLT, WITH WASHER

90119-06048-00

Unavailable

21

CLAMP

90465-13M18-00

Unavailable
