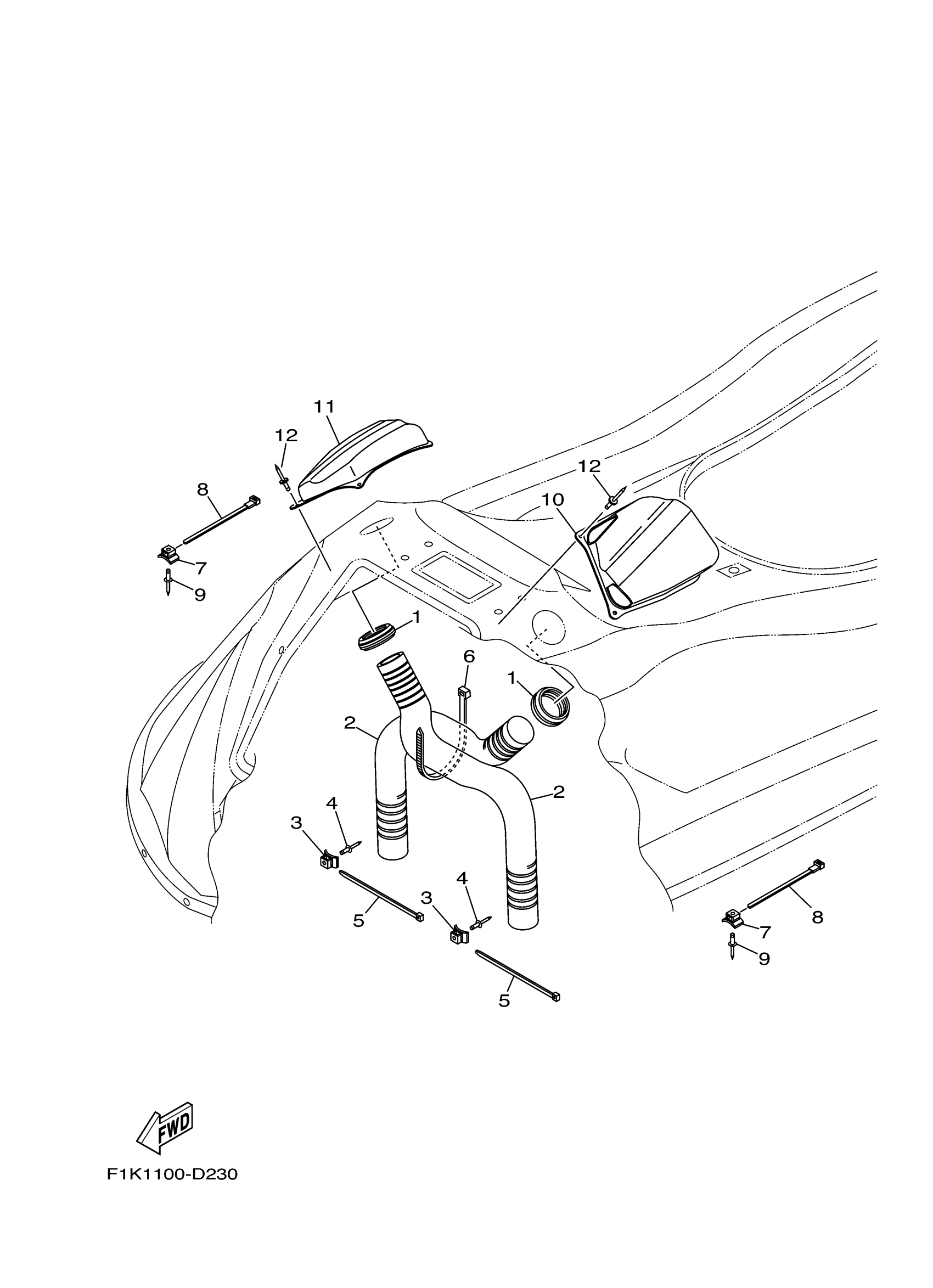

Yamaha VX1100F (WaveRunner VX) F1KK 2007 VENTILATION Diagram

#

Description
Price

1

BASE, AIR INTAKE

F1K-U2127-00-00

$12.11

2

HOSE, VENTILATOR 2

F2V-U213G-00-00

Unavailable

3

CLAMP COMP (EU0)

90600-91736-00

$6.22

4

RIVET, BLIND

90267-489U6-00

$1.37

5

CLAMP

90464-99804-00

$4.17

6

BAND

90601-200U7-00

$3.11

7

CLAMP COMP (EU0)

90600-91736-00

$6.22

8

CLAMP

90464-32801-00

$1.23

9

RIVET, BLIND

90267-489U6-00

$1.37

10

BOX, INDUCTION 1

F1K-U2187-00-00

Unavailable

11

BOX, INDUCTION 2

F1K-U2188-00-00

Unavailable

12

RIVET, BLIND

90267-48806-00

$2.00
