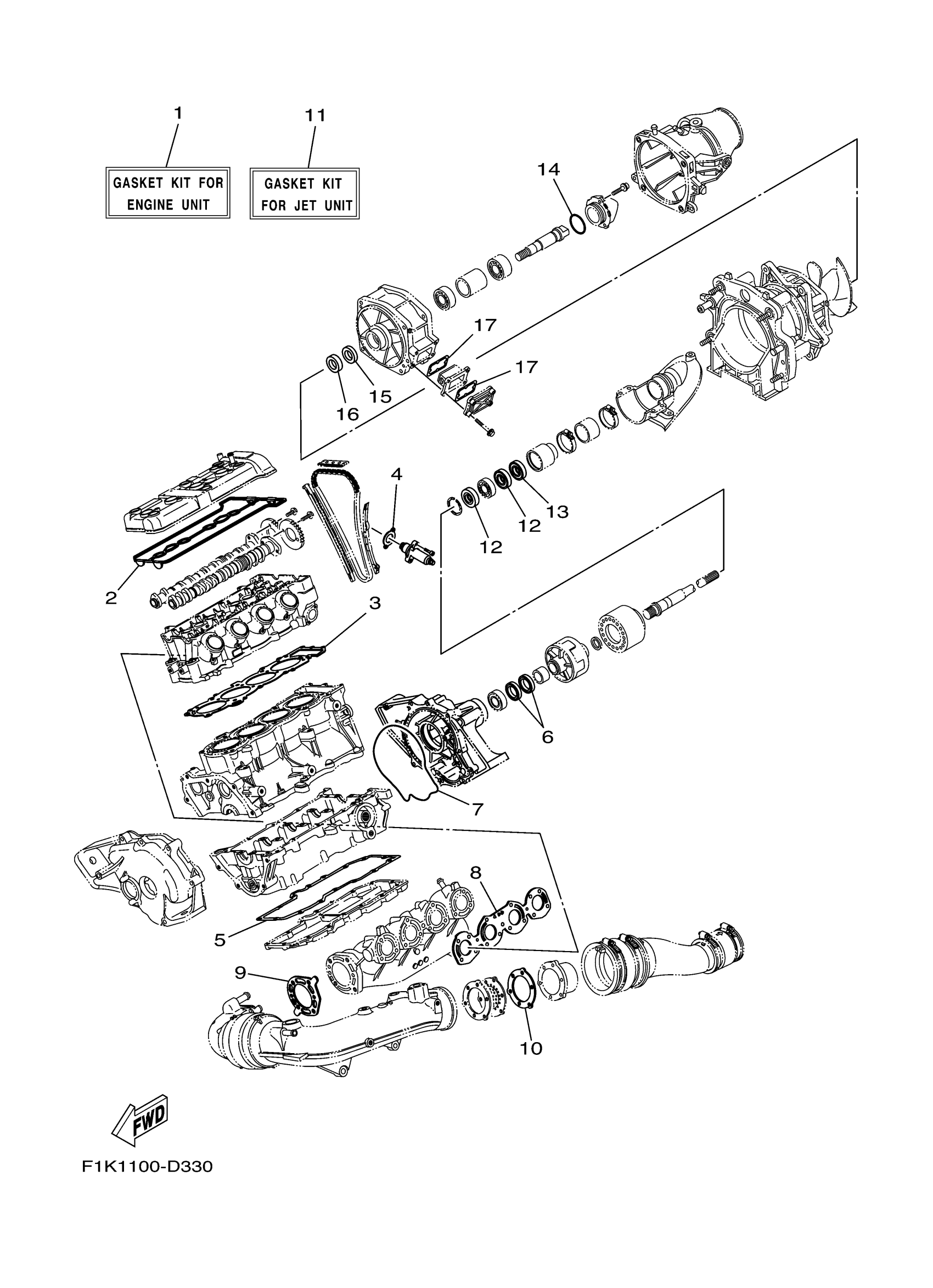

Yamaha VX1100F (WaveRunner VX) F1KK 2007 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

6D3-W0001-00-00

$203.02

2

GASKET, HEAD COVER 1

60E-11193-01-00

$53.70

3

. GASKET, CYLINDER HEAD 1

6D3-11181-00-00

$95.40

4

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

5

GASKET

6B6-13557-01-00

$38.49

6

OIL SEAL

93101-35004-00

$25.49

7

GASKET

6B6-13475-01-00

$25.27

8

GASKET, EXHAUST PIPE

6D3-14613-00-00

$29.88

9

GASKET, MUFFLER DAMPER 1

6D3-14739-01-00

$48.47

10

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

11

GASKET KIT FOR JET UNIT

6D3-W0001-20-00

$195.44

12

OIL SEAL(62T)

93101-25M55-00

$24.36

13

OIL SEAL

93101-24001-00

$30.69

14

. O-RING

93210-464A3-00

$2.95

15

. OIL SEAL

93101-21002-00

$19.63

16

. OIL SEAL

93101-21001-00

$19.63

17

. O-RING

66V-42414-00-00

$5.18
