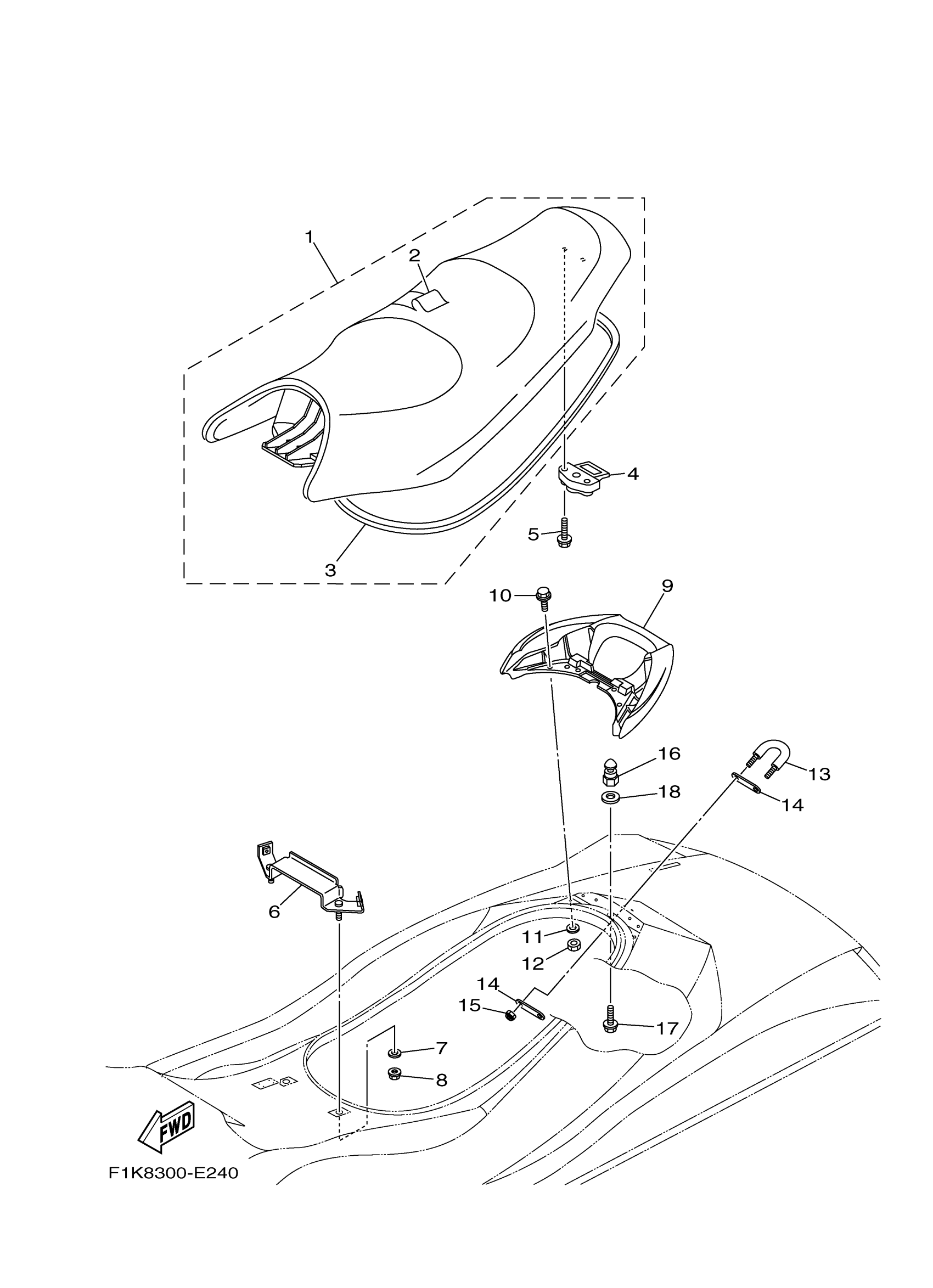

Yamaha VX1100F (WaveRunner VX) F1KK 2007 SEAT UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY(BLUE)

F1K-U371A-22-00

Unavailable

2

. COVER, SEAT 1

F1K-U371B-20-00

Unavailable

3

PACKING

F1K-U2664-01-00

Unavailable

4

SEAT LOCK ASSY

GJ3-63850-03-00

$69.68

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

STAY, SEAT 1

F1K-U378C-00-00

Unavailable

7

WASHER, PLATE

90201-099U3-00

$2.16

8

NUT, NYLON (6J8)

95780-08300-00

$10.55

9

GRIP, HAND

F1K-U271B-04-00

Unavailable

10

BOLT, WITH WASHER

90119-06820-00

$3.52

11

WASHER

9299R-06200-00

$0.43

12

NUT, NYLON

9572R-06300-00

$2.80

13

STERN EYE (BLACK)

F1K-61628-00-00

$39.38

14

PLATE A

GP7-U4953-10-00

$3.52

15

NUT, NYLON (6J8)

95780-08300-00

$10.55

16

PIN

F1K-U3774-00-00

$15.07

17

BOLT,WITH WASHER

90119-10815-00

$4.09

18

WASHER

9299R-10200-00

$1.63
