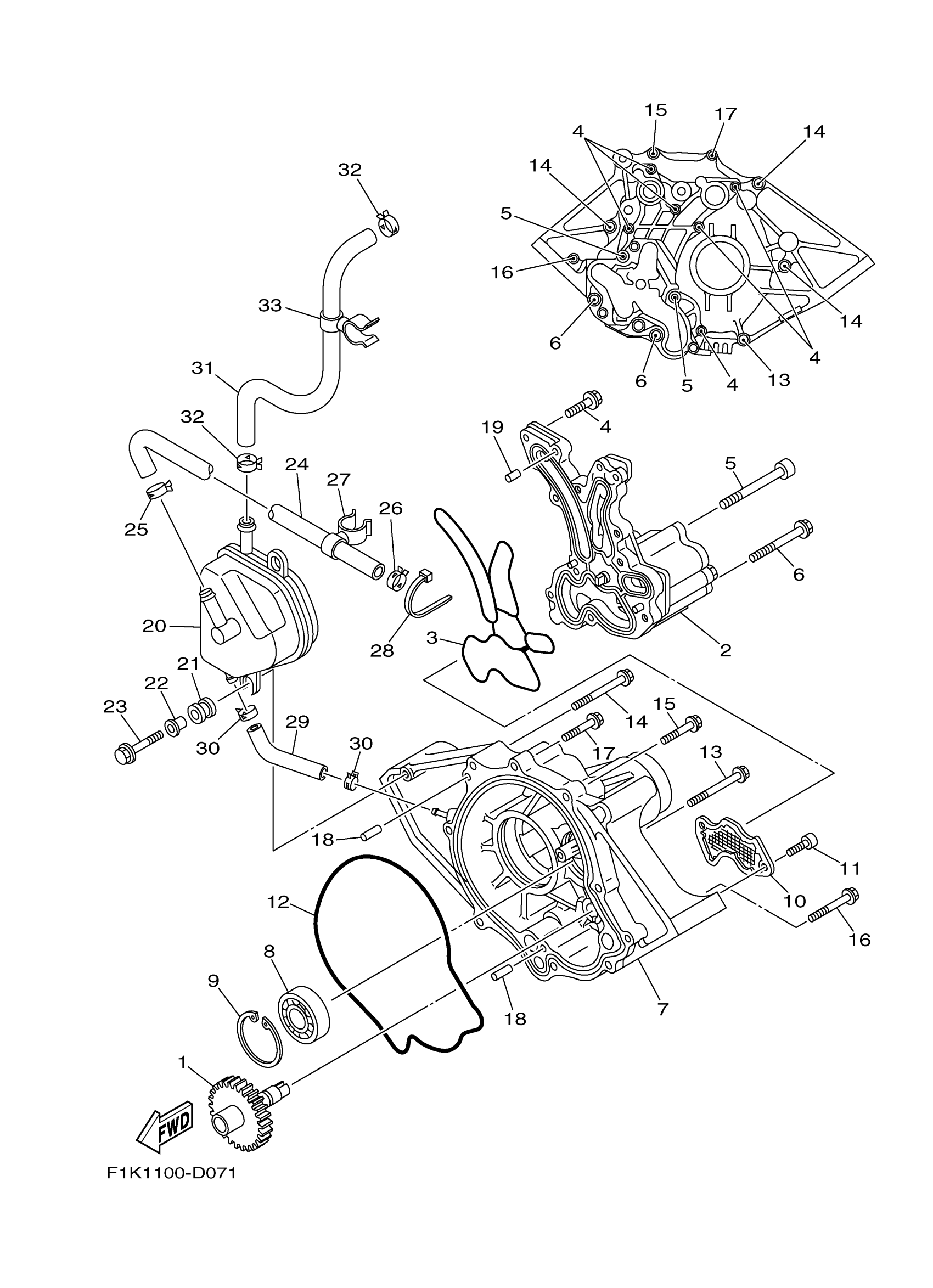

Yamaha VX1100F (WaveRunner VX) F1KK 2007 OIL PUMP Diagram
#
1
DRIVEN GEAR ASSY
6B6-13360-00-00
Unavailable
2
OIL PUMP ASSY
6D3-13300-01-00
Unavailable
3
GASKET
6D3-13563-00-00
Unavailable
4
BOLT, WITH WASHER(61B)
97513-06525-00
$1.49
5
BOLT, HEXAGON SOCKET HEAD
90110-08041-00
Unavailable
6
BOLT, WITH WASHER
90119-08085-00
Unavailable
7
COVER, PUMP GEAR WITH PIN
99999-03984-00
Unavailable
8
BEARING
93306-30441-00
$63.99
9
CIRCLIP(26H)
99009-52500-00
$12.49
10
STRAINER, OIL
6B6-13411-00-00
Unavailable
11
BOLT,SOCKET
91317-06016-00
$1.25
12
GASKET
6B6-13475-01-00
Unavailable
13
BOLT, WITH WASHER
90119-08045-00
Unavailable
14
BOLT, WITH WASHER
90119-08034-00
Unavailable
15
BOLT, WITH WASHER
90119-08043-00
Unavailable
16
BOLT, WITH WASHER
97513-06555-00
Unavailable
17
BOLT, WITH WASHER (62X)
97513-06535-00
Unavailable
18
PIN, DOWEL
93608-16M16-00
Unavailable
19
PIN, DOWEL
93606-25M00-00
Unavailable
20
SEPERATOR, OIL
6D3-11164-00-00
Unavailable
21
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
22
. COLLAR
90387-06119-00
Unavailable
23
BOLT, WITH WASHER
90119-06294-00
Unavailable
24
PIPE, BREATHER 3
6D3-11126-00-00
Unavailable
25
CLIP
90467-170A0-00
Unavailable
26
CLIP
90467-170A0-00
Unavailable
27
CLAMP
90464-21001-00
Unavailable
28
CLAMP
90464-18006-00
Unavailable
29
PIPE, BREATHER 4
6D3-11125-00-00
Unavailable
30
CLIP
90467-110A1-00
Unavailable
31
PIPE, BREATHER 1
6D3-11166-00-00
Unavailable
32
CLIP
90467-170A0-00
Unavailable
33
CLAMP
90464-21001-00
Unavailable
