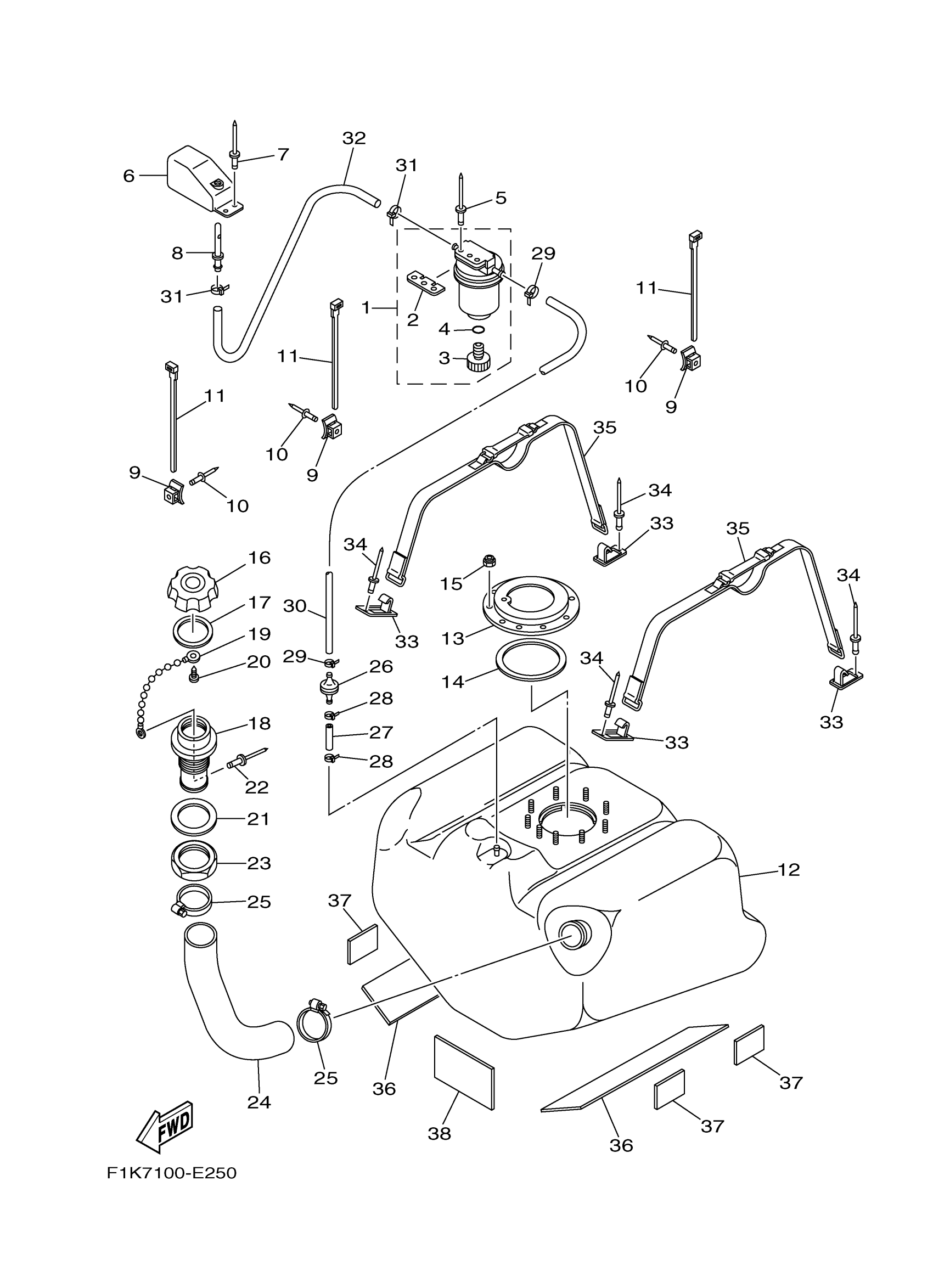

Yamaha VX1100F (WaveRunner VX) F1KK 2007 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

2

. PLATE, FILTER

EW2-62142-00-00

$44.76

3

. PLUG, DRAIN

70R-24543-00-00

$8.94

4

. O-RING

70R-24489-00-00

$4.93

5

RIVET, BLIND

90267-489U2-00

$1.51

6

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

PIPE, VENTILATION

F1G-62149-00-00

$11.18

9

CLAMP COMP (EU0)

90600-91736-00

$6.22

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

CLAMP

90464-32801-00

$1.29

12

TANK, FUEL

F1K-U7711-02-00

Unavailable

13

RING

F1B-U7773-00-00

$22.25

14

PACKING, SEAL

F1B-67747-00-00

$17.09

15

NUT, NYLON

9572R-06300-00

$2.93

16

CAP, FUEL FILLER

GP7-U7831-01-00

$26.54

17

PACKING

GP7-U7832-01-00

$5.62

18

SOCKET

GP7-U7833-00-00

$37.32

19

CHAIN BALL

GP7-U7835-00-00

$4.72

20

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

21

PACKING FUEL FILLER

GP7-U7834-00-00

$12.34

22

RIVET, BLIND

90267-329UR-00

$1.23

23

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

24

HOSE

F1K-U7844-01-00

Unavailable

25

BAND, HOSE 55

90601-155U4-00

$6.17

26

CHECK VALVE

EU0-67767-31-00

$30.97

27

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.19

28

CLAMP

90465-10098-00

$2.24

29

CLAMP

90465-10098-00

$2.24

30

HOSE, AIR VENT

F1K-U785G-01-00

Unavailable

31

CLAMP

90465-10098-00

$2.24

32

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

33

HOOK A

F1K-U5772-01-00

Unavailable

34

RIVET (EU0)

90267-48938-00

$4.72

35

BELT, TANK 1

F1K-67743-00-00

Unavailable

36

MAT 1

F1K-U759B-00-00

Unavailable

37

MAT 2

F1B-U759C-00-00

Unavailable

38

PAD, BATTERY

F1S-U8221-00-00

$2.88
