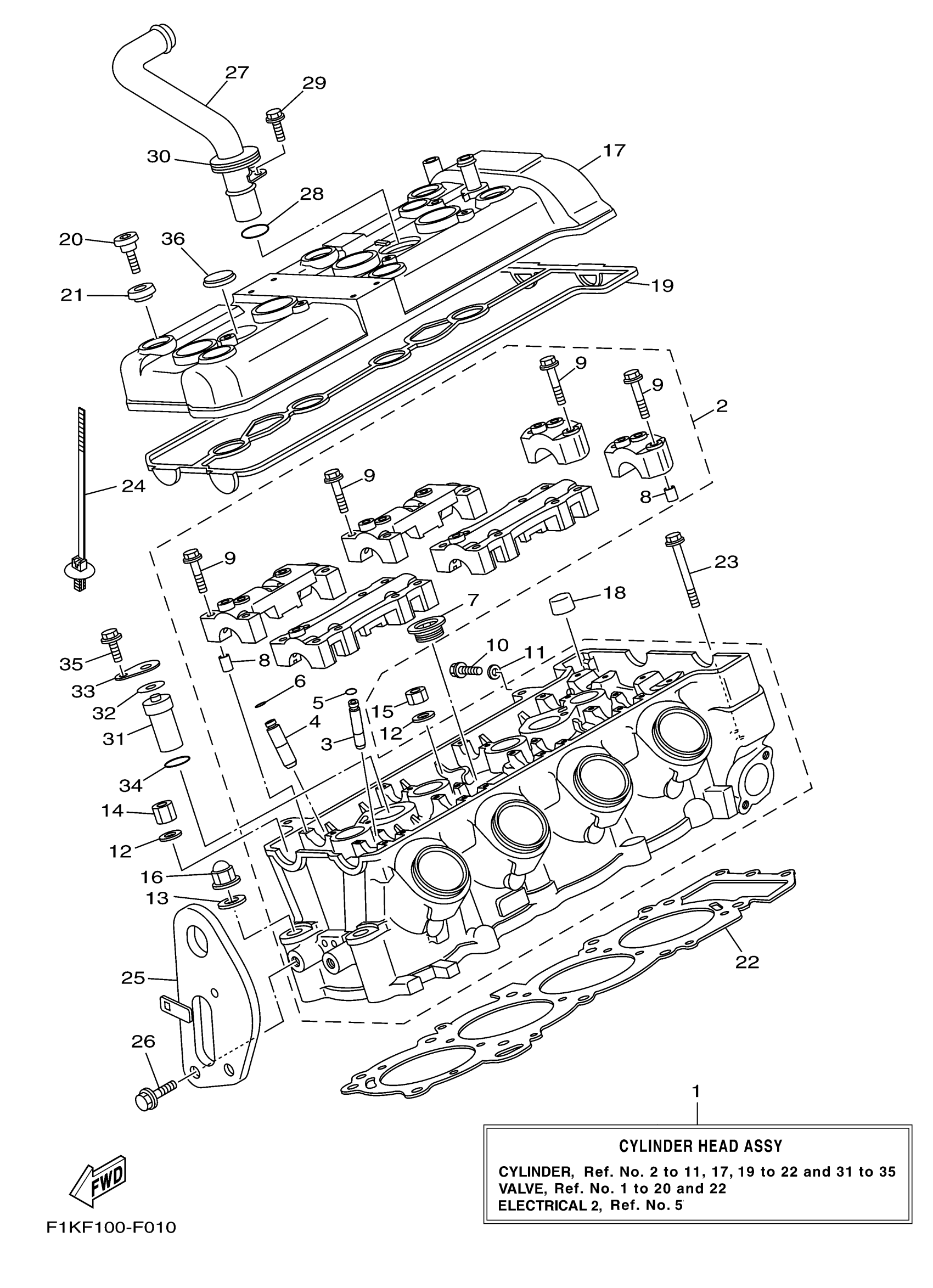

Yamaha VX1100F (WaveRunner VX) F1KK 2007 CYLINDER Diagram
#
1
CYLINDER HEAD ASSY
6D3-W009A-00-94
Unavailable
2
CYLINDER HEAD ASSY
6D3-11102-00-00
Unavailable
3
GUIDE, INTAKE VALVE
3TJ-11133-10-00
$67.99
4
GUIDE, INTAKE VALVE
1WG-11133-11-00
$77.99
5
CIRCLIP(1HX)
93440-07149-00
$8.49
6
CIRCLIP(1WG)
93440-10153-00
$2.39
7
PLUG, STRAIGHT SCREW
90340-27001-00
$19.99
8
PIN, DOWEL(3XW)
91808-16023-00
$8.49
9
. BOLT, FLANGE
90105-06026-00
Unavailable
10
BOLT, FLANGE(2UJ)
95024-06012-00
$4.41
11
GASKET 256113960000
90430-06014-00
Unavailable
12
WASHER, PLATE
90201-10033-00
$8.49
13
WASHER, PLATE
90201-10019-00
Unavailable
14
NUT
90179-10006-00
$9.49
15
NUT (26H)
90179-10414-00
$11.49
16
NUT, CAP
90176-10001-00
Unavailable
17
COVER, CYLINDER HEAD 1
6D3-11191-01-94
Unavailable
18
COVER
6D3-1118A-00-00
Unavailable
19
GASKET, HEAD COVER 1
60E-11193-01-00
Unavailable
20
BOLT(4BP)
90109-066F0-00
Unavailable
21
RUBBER, MOUNT 1
5EA-1111G-00-00
Unavailable
22
. GASKET, CYLINDER HEAD 1
6D3-11181-00-00
Unavailable
23
BOLT, WITH WASHER
97513-06555-00
Unavailable
24
CLAMP
90464-20005-00
Unavailable
25
BRACKET, REFLECTOR 1
6D3-85132-00-00
Unavailable
26
BOLT, WITH WASHER(61B)
97513-08520-00
Unavailable
27
PIPE 2
6D3-12482-00-00
Unavailable
28
O-RING (716)
93210-18417-00
Unavailable
29
BOLT,SOCKET
91317-06016-00
Unavailable
30
SEAL, PIPE 1
60E-12494-00-00
Unavailable
31
PIPE 3
60E-12483-10-00
Unavailable
32
GASKET 1
60E-12474-01-00
Unavailable
33
PLATE 2
60E-12537-01-00
Unavailable
34
O-RING (716)
93210-18417-00
Unavailable
35
BOLT,SOCKET
91317-06016-00
Unavailable
36
SEAL, PIPE 2
60E-12495-00-00
Unavailable
