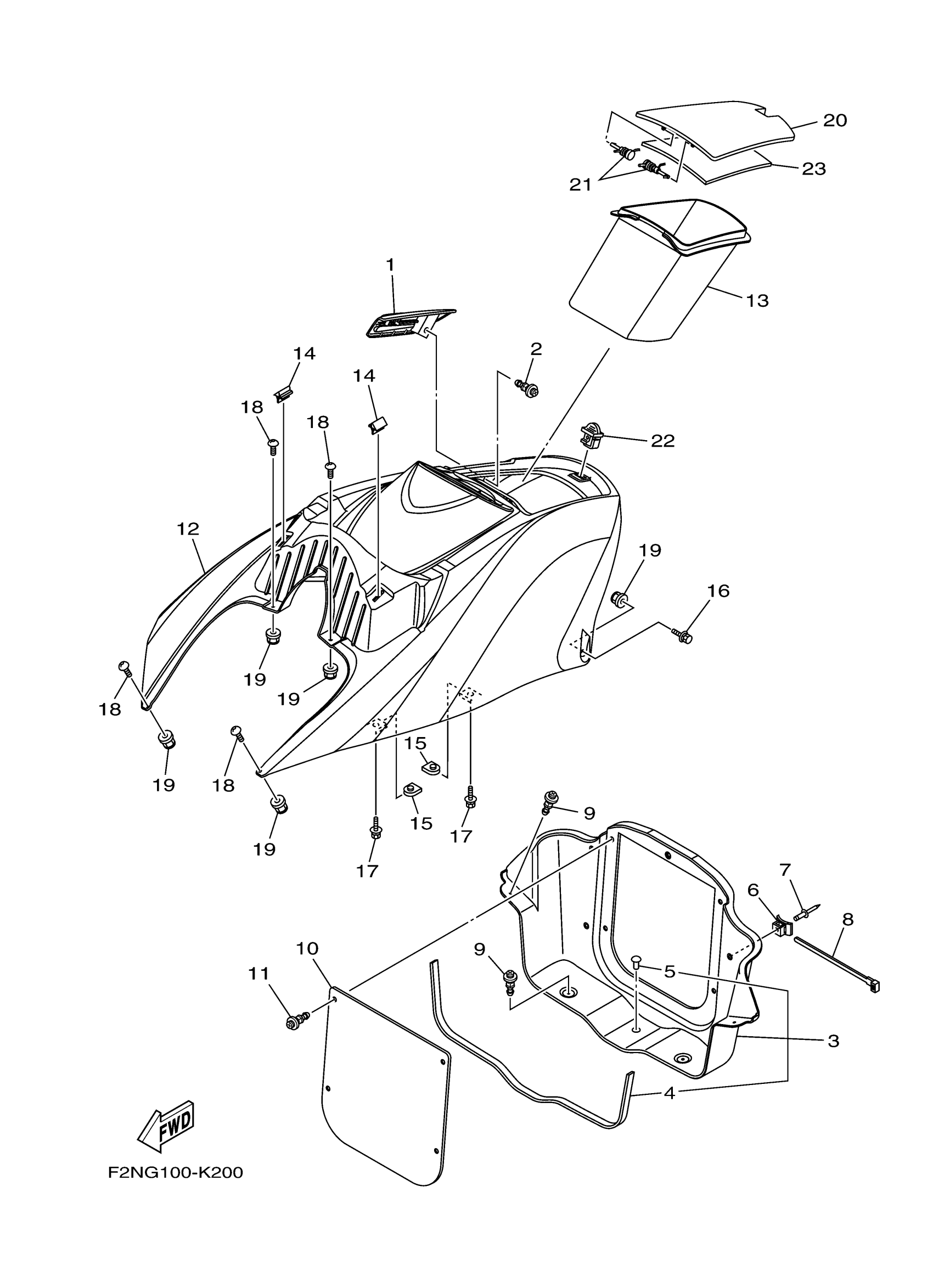

Yamaha VX1100EP (WAVERUNNER V1) F2PN 2015 ENGINE HATCH 1 Diagram

#

Description
Price

1

SEAL

F2N-U2723-00-00

Unavailable

2

RIVET

90269-08801-00

Unavailable

3

LOCKER,BOW

F2N-U475B-04-00

Unavailable

4

PACKING 4

F2C-U266C-00-00

Unavailable

5

. PLUG, BLIND

90605-502U1-00

Unavailable

6

BASE, CLAMP

F1W-U828M-00-00

Unavailable

7

RIVET, BLIND

90267-48803-00

Unavailable

8

CLAMP

90464-32801-00

Unavailable

9

RIVET

90269-08801-00

Unavailable

10

PLATE, LOKER BOW

F1W-U475F-01-00

Unavailable

11

RIVET

90269-08801-00

Unavailable

12

COVER, ENGINE HATCH (DYMA)

F2N-U516N-00-PD

Unavailable

13

BOX GLOVE

F2N-U516P-00-00

Unavailable

14

PACKING 4

F1K-U266C-10-00

$4.99

15

NUT, SPRING(GJ3)

90183-06902-00

$11.49

16

BOLT, WITH WASHER

90119-06880-00

Unavailable

17

BOLT, WITH WASHER

90119-06878-00

Unavailable

18

SCREW

F2N-67823-10-00

Unavailable

19

NUT, LOCK

F2N-U142L-00-00

Unavailable

20

LID HATCH

F2N-U517H-01-00

Unavailable

21

PIN, HINGE

F0X-6517R-01-00

Unavailable

22

LOCK

GU2-62875-02-00

Unavailable

23

PACKING CASE

F2P-U519D-00-00

Unavailable
