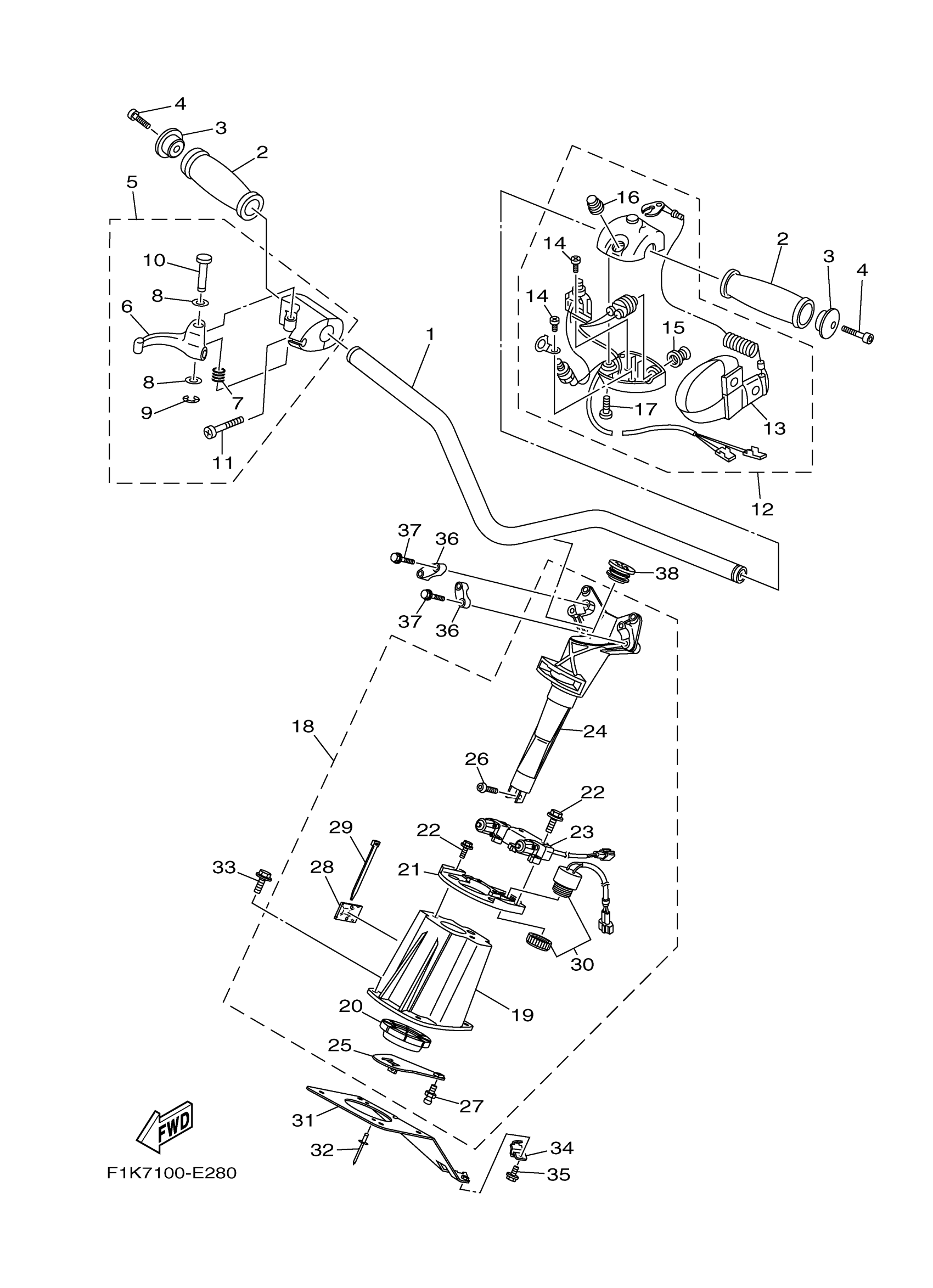

Yamaha VX1100E (WaveRunner VX110 Sport) F1KA 2006 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2N-U1552-00-00

$257.56

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

12

SWITCH BOX ASSY

FK7-68310-07-00

$159.77

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

18

STEERING MASTER AS

F2X-61400-14-00

Unavailable

19

. HOUSING ASSY

F1K-U152M-00-00

Unavailable

20

. SEAL, RUBBER

F1K-U143C-00-00

Unavailable

21

. SPACER, BRACKET

F1K-U146H-01-00

Unavailable

22

BOLT, WITH WASHER

90119-08826-00

$4.62

23

. SENSOR ASSY

F1B-68303-10-00

Unavailable

24

. COLUMN, STEERING

F1K-U1541-02-00

Unavailable

25

. ARM, STEERING

F1K-U151B-02-00

$19.68

26

BOLT, WITH WASHER

90119-08826-00

$4.62

27

STUD, JOINT BALL

GH3-U146E-00-00

$6.66

28

BASE, CLAMP

90600-900U6-00

Unavailable

29

BAND

90601-200U1-00

$2.77

30

BUZZER

F1S-68341-00-00

$113.62

31

BRACKET,STOPPER CABLE

F1K-U1467-01-00

$54.53

32

RIVET, BLIND

90267-48806-00

$2.00

33

BOLT,WITH WASHER

90119-08870-00

$12.90

34

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

35

BOLT, WITH WASHER

90119-06830-00

Unavailable

36

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

37

BOLT, WITH WASHER

90119-089U1-00

$3.23

38

PACKING, STEERING COLUMN

F0M-61469-00-00

Unavailable
