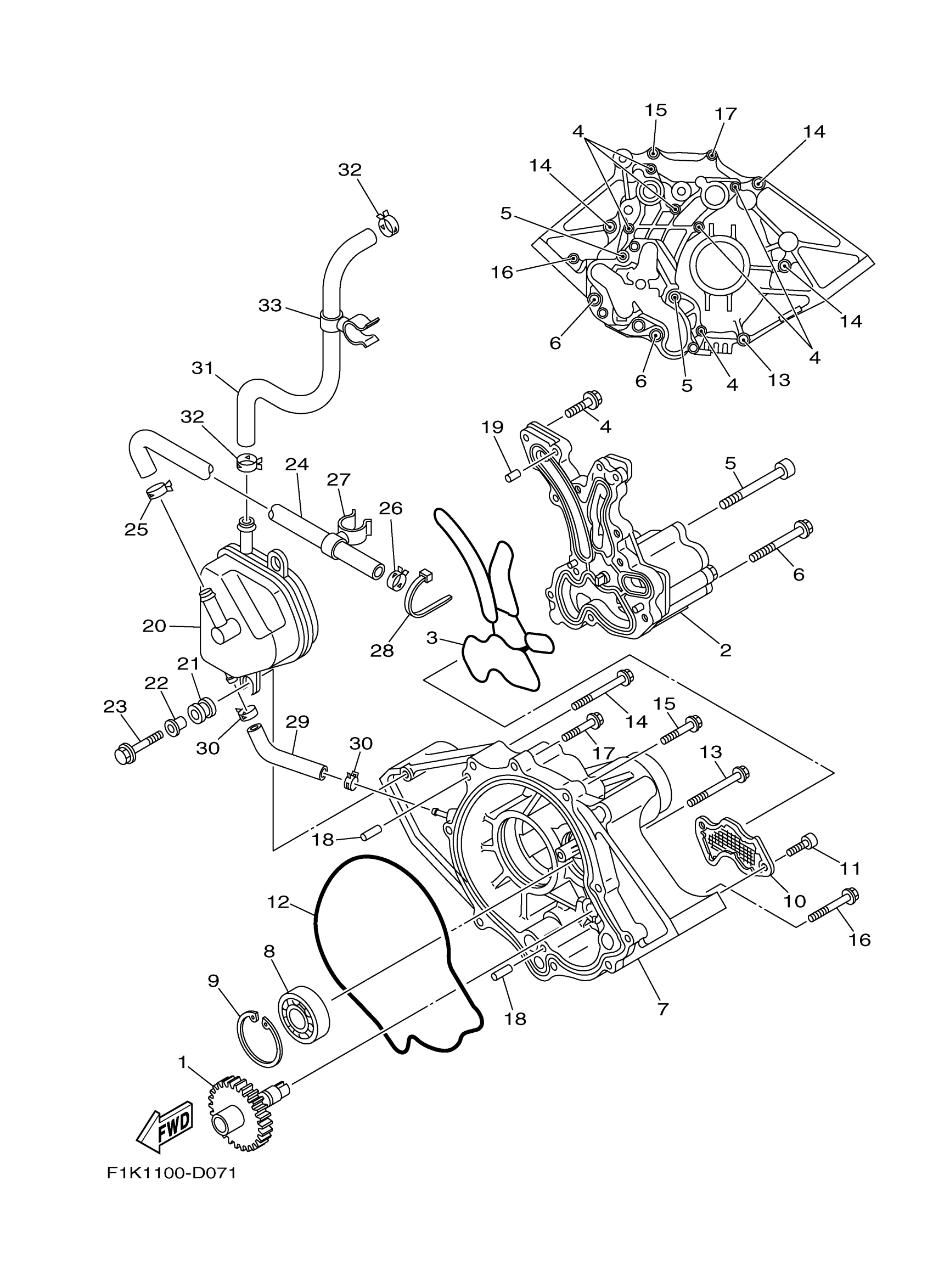

Yamaha VX1100E (WaveRunner VX110 Sport) F1KA 2006 OIL PUMP Diagram

#

Description
Price

1

DRIVEN GEAR ASSY

6B6-13360-00-00

$133.32

2

OIL PUMP ASSY

6D3-13300-01-00

Unavailable

3

GASKET

6D3-13563-00-00

$19.49

4

BOLT, WITH WASHER(61B)

97513-06525-00

$1.75

5

BOLT, HEXAGON SOCKET HEAD

90110-08041-00

$5.80

6

BOLT, WITH WASHER

90119-08085-00

$5.00

7

COVER, PUMP GEAR WITH PIN

99999-03984-00

$484.83

8

BEARING

93306-30441-00

$57.39

9

CIRCLIP(26H)

99009-52500-00

$10.02

10

STRAINER, OIL

6B6-13411-00-00

$46.95

11

BOLT,SOCKET

91317-06016-00

$1.15

12

GASKET

6B6-13475-01-00

$25.27

13

BOLT, WITH WASHER

90119-08045-00

$4.09

14

BOLT, WITH WASHER

90119-08034-00

$3.33

15

BOLT, WITH WASHER

90119-08043-00

$4.55

16

BOLT, WITH WASHER

97513-06555-00

$2.80

17

BOLT, WITH WASHER (62X)

97513-06535-00

Unavailable

18

PIN, DOWEL

93608-16M16-00

$2.41

19

PIN, DOWEL

93606-25M00-00

$1.82

20

SEPERATOR, OIL

6D3-11164-00-00

$130.29

21

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

22

. COLLAR

90387-06119-00

$4.37

23

BOLT, WITH WASHER

90119-06294-00

Unavailable

24

PIPE, BREATHER 3

6D3-11126-00-00

$30.99

25

CLIP

90467-170A0-00

$2.80

26

CLIP

90467-170A0-00

$2.80

27

CLAMP

90464-21001-00

$2.16

28

CLAMP

90464-18006-00

$10.99

29

PIPE, BREATHER 4

6D3-11125-00-00

$9.08

30

CLIP

90467-110A1-00

$4.07

31

PIPE, BREATHER 1

6D3-11166-00-00

$29.49

32

CLIP

90467-170A0-00

$2.80

33

CLAMP

90464-21001-00

$2.16
