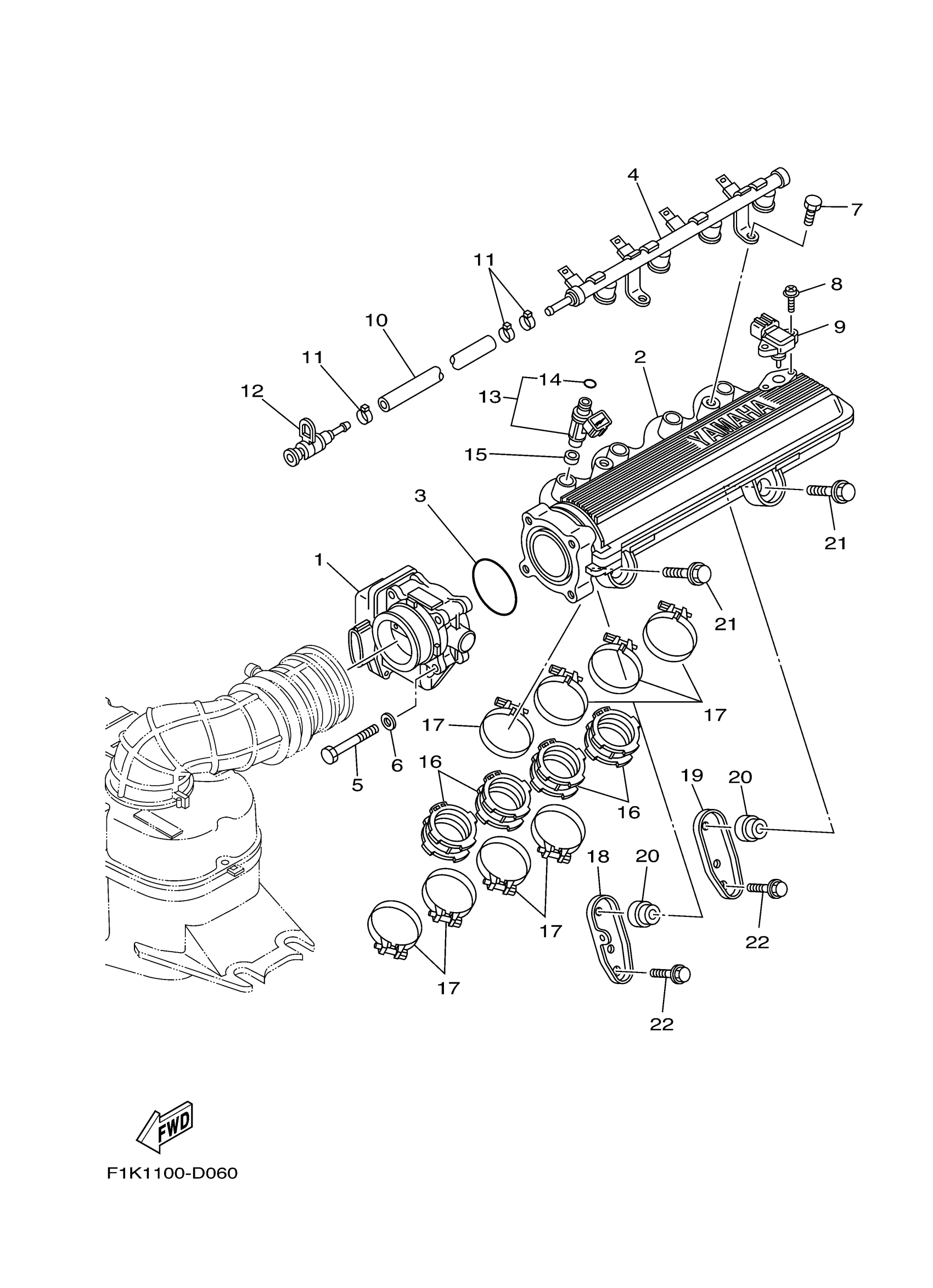

Yamaha VX1100E (WaveRunner VX110 Sport) F1KA 2006 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6D3-13750-00-00

Unavailable

2

MANIFOLD, INTAKE 1

6D3-13641-00-00

Unavailable

3

SEAL

6D3-14457-00-00

Unavailable

4

DELIVERY PIPE

6D3-12880-00-00

Unavailable

5

BOLT 1

68V-13573-00-00

Unavailable

6

WASHER

6P2-13578-00-00

Unavailable

7

. BOLT

63P-14446-00-00

Unavailable

8

. SCREW 3

68V-81147-00-00

Unavailable

9

. SENSOR ASSY

68F-83688-00-00

Unavailable

10

HOSE

6D3-14294-11-00

Unavailable

11

HOSE CLAMP ASSY

90450-17M17-00

Unavailable

12

FUEL PIPE JOINT

60E-24300-01-00

Unavailable

13

. INJECTOR

60E-13761-10-00

Unavailable

14

.. O-RING

60E-14147-00-00

Unavailable

15

GASKET

90430-09002-00

$11.49

16

JOINT, THROTTLE BODY 1

6D3-13795-01-00

Unavailable

17

HOSE CLAMP ASSY

90450-57006-00

Unavailable

18

STAY

6D3-14413-00-00

Unavailable

19

STAY 2

6D3-14414-10-00

Unavailable

20

COLLAR

60E-14449-00-94

Unavailable

21

BOLT, WITH WASHER

90119-08050-00

Unavailable

22

BOLT, WITH WASHER

90119-08074-00

Unavailable
