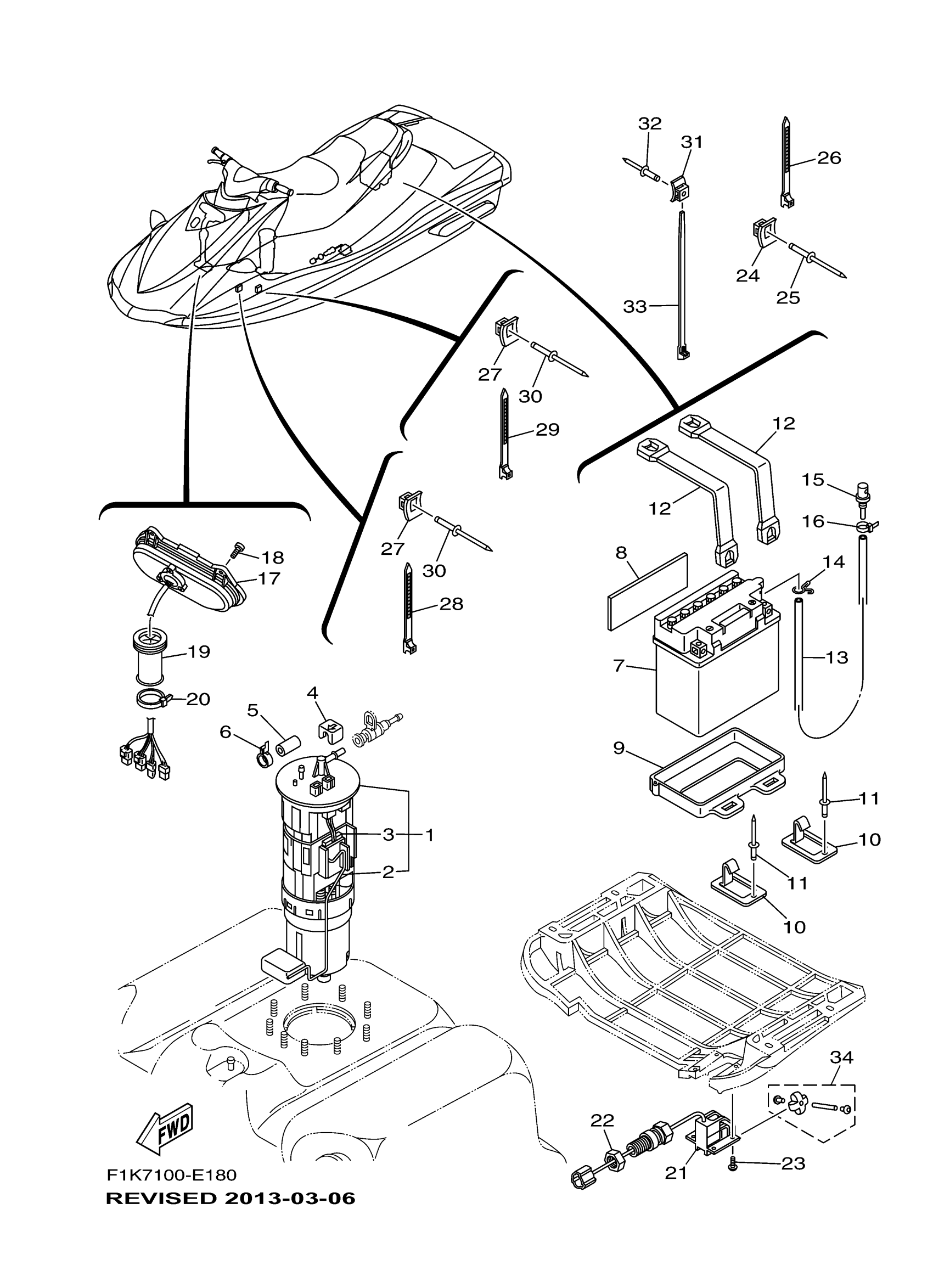

Yamaha VX1100E (WaveRunner VX110 Sport) F1KA 2006 ELECTRICAL 3 Diagram
#
1
FUEL PUMP COMP.
60E-13907-0X-00
Unavailable
2
. FUEL SENDER ASSY
60E-682E0-00-00
Unavailable
3
DAMPER, STOPPER
60E-82556-10-00
Unavailable
4
COVER
60E-24474-00-00
Unavailable
5
PLUG
6D3-24481-00-00
Unavailable
6
CLIP
6D3-24387-00-00
Unavailable
7
BATTERY ASSY
EU0-82110-08-00
Unavailable
8
PAD, BATTERY
F1K-U8221-00-00
Unavailable
9
CASE, BATTERY
F1K-U8211-01-00
Unavailable
10
HOOK A
F1K-U5772-01-00
Unavailable
11
RIVET (EU0)
90267-48938-00
Unavailable
12
BAND, BATTERY 1
F1K-U821D-01-00
Unavailable
13
HOSE, AIR VENT
F0D-U785G-11-00
Unavailable
14
CLIP
90467-089U1-00
Unavailable
15
NIPPLE
GJ3-6215F-00-00
Unavailable
16
CLAMP
90465-10098-00
Unavailable
17
METER ASSY
F1K-6820A-02-00
Unavailable
17
METER ASSY
F1K-6820A-12-00
Unavailable
18
BOLT,HEX. SOCKET BUTTON
90111-05009-00
Unavailable
19
GROMMET
GU2-6822E-01-00
Unavailable
20
BAND
90601-200U1-00
Unavailable
21
SENSOR SPEED
F1S-U8K31-03-00
Unavailable
22
. NUT, DRAIN 1
EU0-62241-30-00
Unavailable
23
SCREW, ROUND HEAD
90150-05807-00
Unavailable
24
CLAMP COMP (EU0)
90600-91736-00
Unavailable
24
CLAMP COMP (EU0)
90600-91736-00
Unavailable
25
RIVET, BLIND
90267-489U6-00
Unavailable
25
RIVET, BLIND
90267-489U6-00
Unavailable
26
CLAMP
90464-32801-00
Unavailable
26
CLAMP
90464-32801-00
Unavailable
27
CLAMP COMP (EU0)
90600-91736-00
Unavailable
28
CLAMP
90464-32801-00
Unavailable
29
BAND
90601-200U2-00
Unavailable
30
RIVET, BLIND
90267-489U6-00
Unavailable
31
CLAMP COMP (EU0)
90600-91736-00
Unavailable
32
RIVET, BLIND
90267-489U6-00
Unavailable
33
CLAMP
90464-32801-00
Unavailable
34
REPAIR KIT, SPEED SENSOR
GJ1-U835D-00-00
Unavailable
