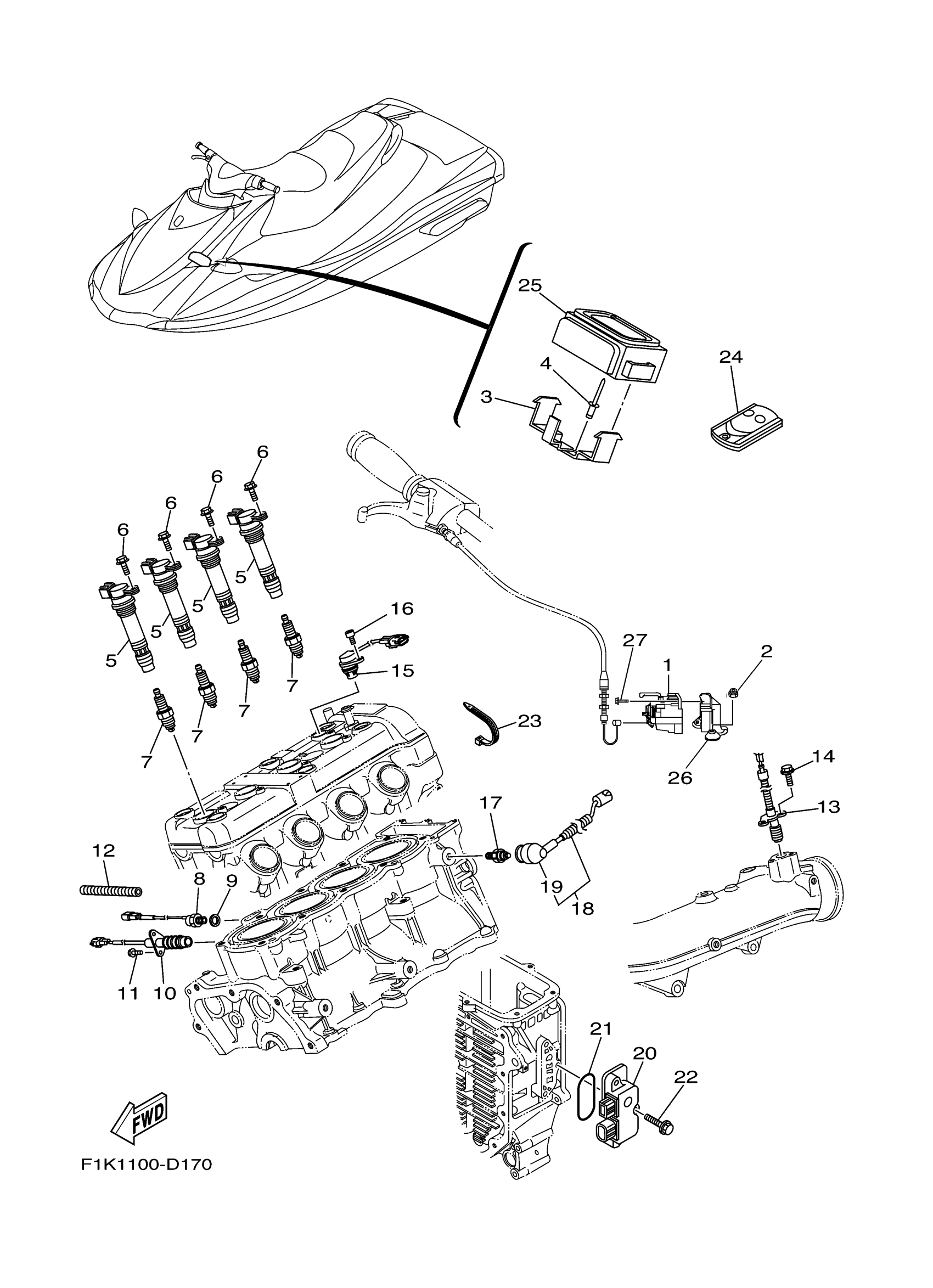

Yamaha VX1100E (WaveRunner VX110 Sport) F1KA 2006 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

$443.92

2

NUT, NYLON (6J8)

95780-08300-00

$10.55

3

BRACKET

F1S-U826C-00-00

Unavailable

4

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

5

IGNITION COIL ASSY

6D3-82310-01-00

$207.56

6

BOLT, FLANGE(JL8)

95880-06016-00

$3.41

7

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$7.28

8

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

9

WASHER, PLATE

92990-10600-00

$2.57

10

THERMO SWITCH ASSY

60E-82560-A1-00

$104.53

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

12

TUBE

EU0-67731-00-00

Unavailable

13

THERMO SWITCH ASSY

6D3-82560-01-00

$118.17

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

15

SENSOR, CAM POSITION

6D3-85896-01-00

Unavailable

16

BOLT,SOCKET

91380-06016-00

Unavailable

17

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

18

LEAD WIRE ASSY

60E-81315-01-00

$41.99

19

CAP

60E-82532-01-00

Unavailable

20

EARTH PLATE COMP.

6D3-8273J-02-00

Unavailable

21

O-RING

93210-60ME8-00

$9.99

22

BOLT, WITH WASHER

90119-06048-00

$2.27

23

CLAMP

90465-13M18-00

$1.71

24

XMTR. COMP.

6B6-86261-00-00

$228.48

25

RECEIVER COMPLETE

6B6-86265-00-00

$427.26

26

STAY 1

6D3-14493-00-8P

Unavailable

27

BOLT, WITH WASHER

90119-08MA3-00

$2.67
