Description

Price

1

RUBBER SHAFT COUPL

6D3-4581J-01-00

Unavailable

2

HOUSING, BEARING

61X-G5332-00-00

Unavailable

3

NIPPLE, GREASE

93700-06M03-00

Unavailable

4

CAP, GREASE NIPPLE

663-45119-01-00

$2.24

5

PIN, DOWEL (614)

93606-12019-00

$4.24

6

SHAFT, DRIVE

6BU-45511-00-00

Unavailable

7

OIL SEAL(62T)

93101-25M55-00

$30.99

8

CIRCLIP

93430-47M04-00

Unavailable

9

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$40.99

10

. OIL SEAL

93102-25009-00

Unavailable

11

FLANGE, COUPLING 1

6D3-45593-00-94

Unavailable

12

WASHER, PLATE

90201-24800-00

Unavailable

13

BOLT, WITH WASHER

90119-06892-00

Unavailable

14

COLLAR

90387-06289-00

$3.18

15

COVER

60E-R1381-01-00

Unavailable

16

BOLT, WITH WASHER

90119-08907-00

Unavailable

17

JOINT, PIPE

F2N-U883E-00-00

Unavailable

18

BOLT

90109-06832-00

Unavailable

19

BAND, HOSE 55

90601-155U4-00

Unavailable

20

PIPE 1

F2N-U883B-00-00

Unavailable

21

PAD

F1K-U892D-00-00

Unavailable

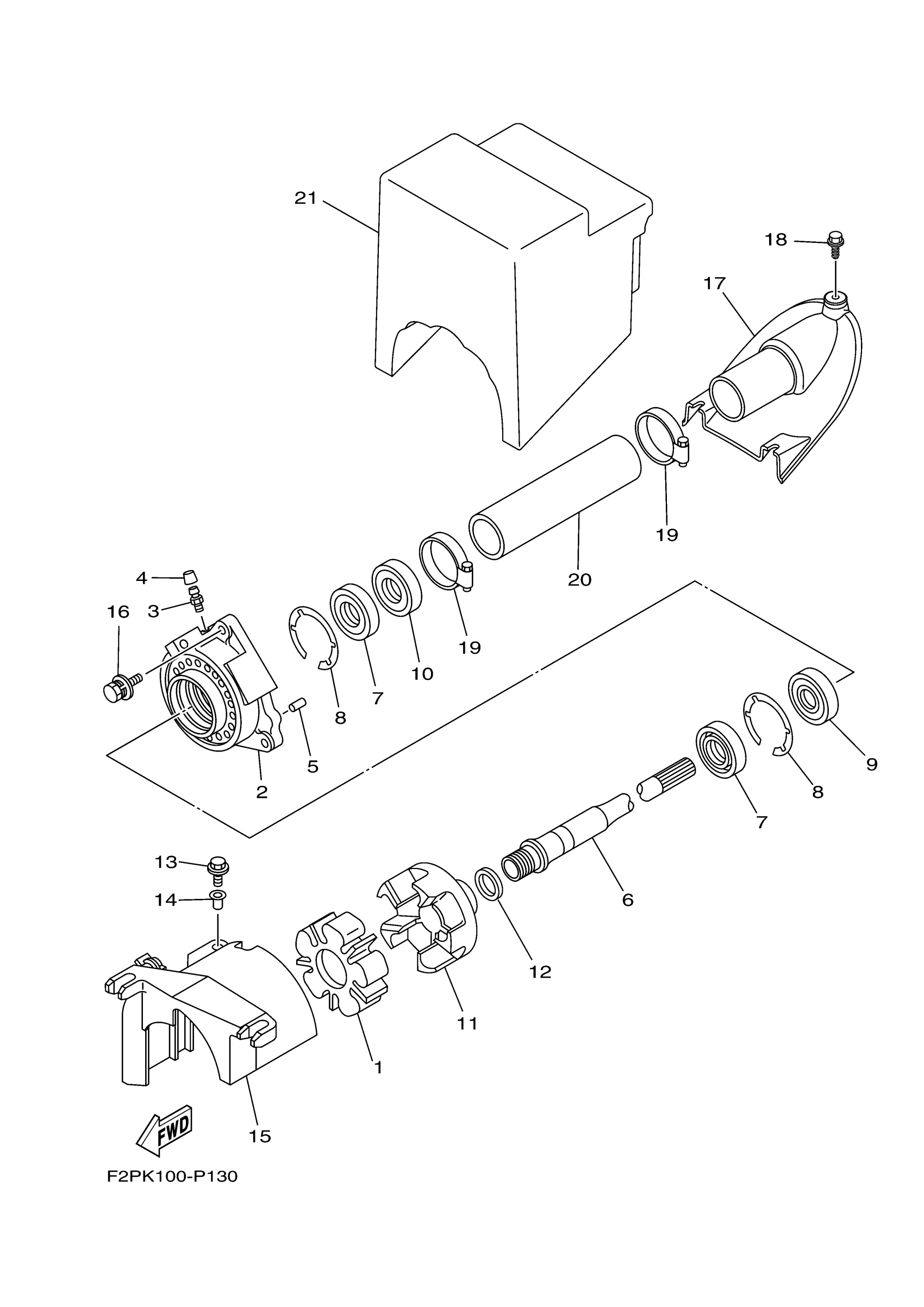

Yamaha VX1100DP (V1 SPORT) F2PK 2015 JET UNIT 2 Diagram

RUBBER SHAFT COUPL

HOUSING, BEARING

NIPPLE, GREASE

CAP, GREASE NIPPLE

PIN, DOWEL (614)

SHAFT, DRIVE

OIL SEAL(62T)

CIRCLIP

BRG,R-B 6205C4 52MM 130G KY

. OIL SEAL

FLANGE, COUPLING 1

WASHER, PLATE

BOLT, WITH WASHER

COLLAR

COVER

BOLT, WITH WASHER

JOINT, PIPE

BOLT

BAND, HOSE 55

PIPE 1

PAD
