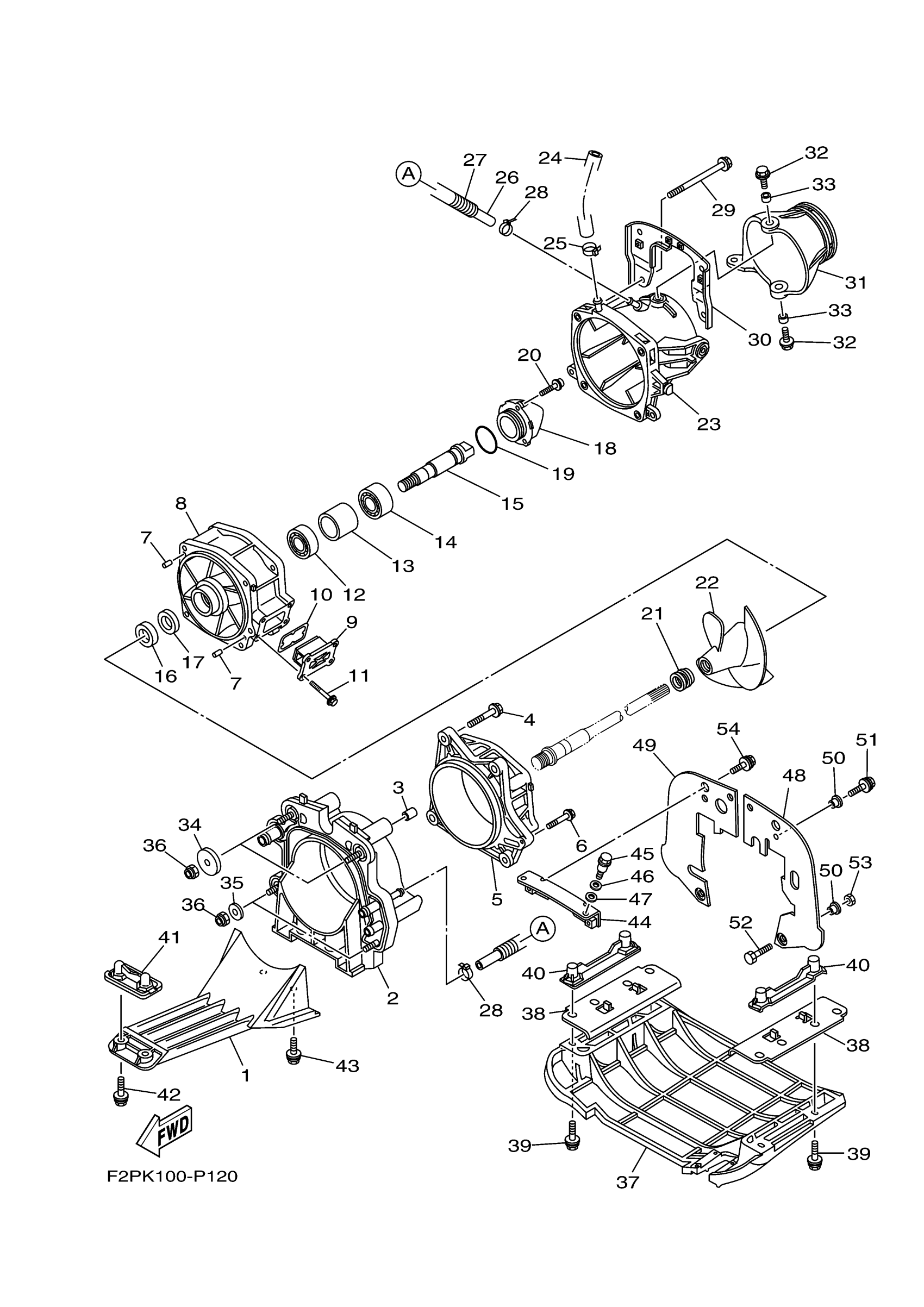

Yamaha VX1100DP (V1 SPORT) F2PK 2015 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6D3-R1333-01-00

$81.78

2

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.41

4

BOLT, WITH WASHER

90119-10811-00

$1.37

5

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

6

BOLT, WITH WASHER

90119-06894-00

$1.37

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

6EX-G6882-00-00

$6.59

10

. O-RING

66V-42414-00-00

$5.18

11

BOLT,WITH WASHER

90119-06890-00

$1.07

12

BEARING

93306-27211-00

$37.41

13

SPACER 1

6EX-G5538-00-00

$8.32

14

BEARING (6K8)

93306-205U1-00

$19.73

15

SHAFT, DRIVE 4

6EX-45514-00-00

$128.77

16

. OIL SEAL

93101-21001-00

$19.63

17

. OIL SEAL

93101-21002-00

$19.63

18

CAP

6EX-R1326-00-00

$12.11

19

. O-RING

93210-464A3-00

$2.95

20

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

21

CAP, IMPELLER

6D3-R1319-00-00

$2.00

22

IMPELLER

6D3-R1321-03-00

Unavailable

23

NOZZLE

6BU-R1318-01-00

$60.27

24

HOSE (L260)

90445-16006-00

$10.99

25

BAND, HOSE 18

90601-118UF-00

$2.07

26

HOSE (L355)

90445-14807-00

$1.74

27

HOSE (L320)

90446-20MF5-00

$4.57

28

CLAMP

90465-10098-00

$1.68

29

BOLT, WITH WASHER

90119-10807-00

$5.44

30

BRACKET 1

6D3-R1341-00-00

$48.47

31

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

32

BOLT, WITH WASHER

90119-08841-00

$1.01

33

COLLAR(6R7)

90387-08M06-00

Unavailable

34

WASHER

F1S-U725E-01-00

$7.89

35

WASHER, PLATE

90201-10801-00

$3.52

36

NUT, NYLON

9572R-10300-00

$3.37

37

PLATE 2

F2N-U273B-10-00

$219.68

38

SPACER

F2M-U143G-00-00

$31.80

39

BOLT, WITH WASHER

90119-08829-00

$3.88

40

BRACKET 2

F1G-U8572-02-00

$18.66

41

BRACKET, 3

F1K-U8577-01-00

$22.97

42

BOLT, WITH WASHER

90119-06896-00

$5.03

43

BOLT, WITH WASHER

90119-10809-00

Unavailable

44

BRACKET

F1K-U7557-01-00

$28.02

45

BOLT

90109-08043-00

$4.09

46

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

47

GASKET

90430-12002-00

$1.81

48

PLATE, RUBBER 1

F1K-U757E-01-00

$14.38

49

PLATE, RUBBER 2

F1K-U757F-01-00

$17.22

50

COLLAR

90387-06080-00

$7.27

51

BOLT, WITH WASHER

90119-06878-00

$3.43

52

BOLT

90101-069U0-00

$1.23

53

NUT, NYLON

9572R-06300-00

$2.80

54

BOLT, WITH WASHER

90119-08800-00

$4.09
