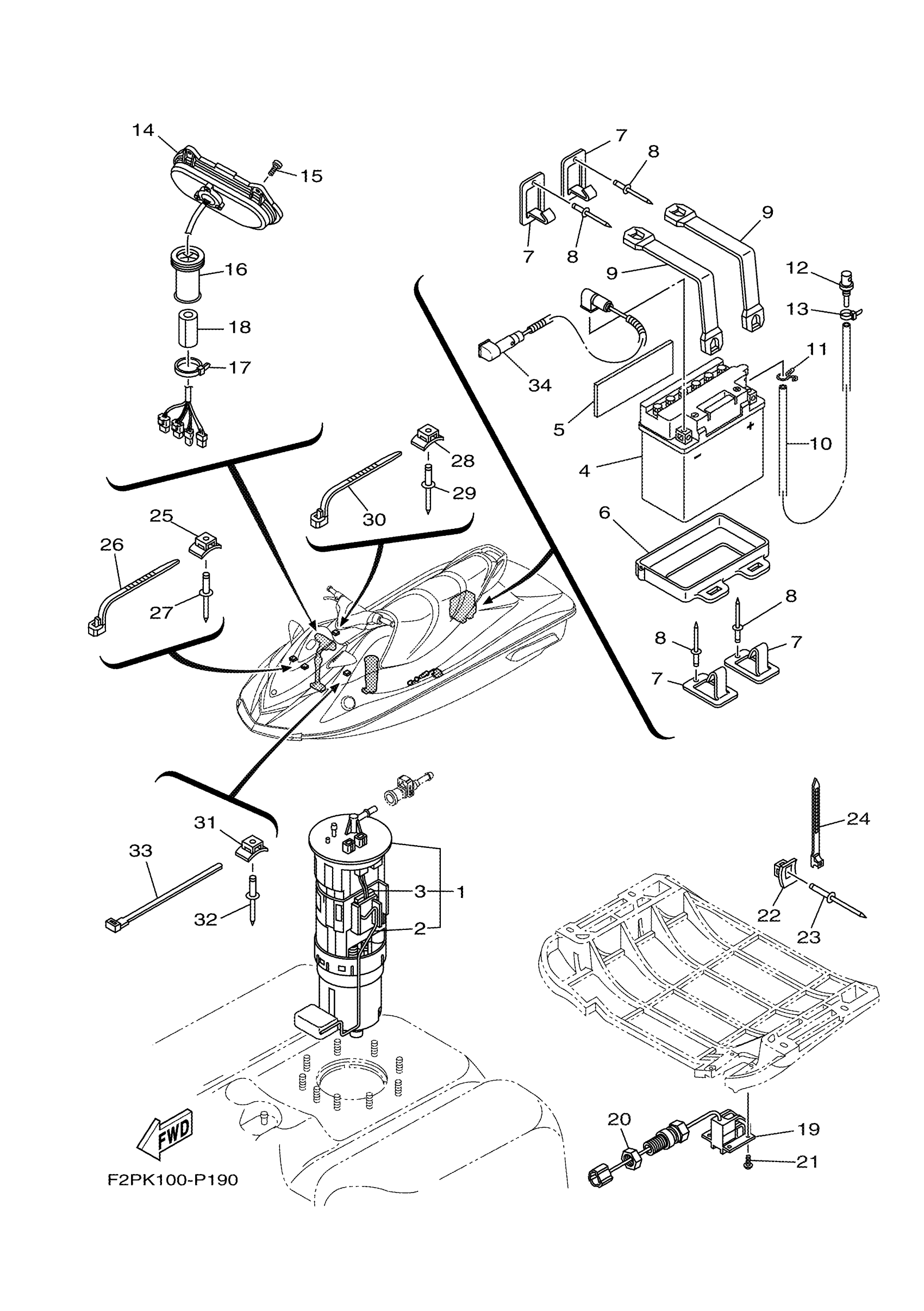

Yamaha VX1100DP (V1 SPORT) F2PK 2015 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

$243.92

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

$101.75

5

PAD, BATTERY

F1K-U8221-00-00

$2.66

6

CASE, BATTERY

F1K-U8211-01-00

$21.20

7

HOOK A

F1K-U5772-04-00

$6.29

8

RIVET (EU0)

90267-48938-00

$5.00

9

BAND, BATTERY 1

F1K-U821D-01-00

$5.54

10

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

11

CLIP

90467-089U1-00

$1.44

12

NIPPLE

GJ3-6215F-00-00

$9.08

13

CLAMP

90465-10098-00

$1.68

14

METER ASSY

F2N-U820A-10-00

$186.72

15

BOLT,HEX. SOCKET BUTTON

90111-05009-00

$2.27

16

GROMMET

GU2-6822E-01-00

$24.98

17

CLAMP

90464-32801-00

$1.23

18

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

19

SENSOR SPEED

F1S-U8K31-03-00

$142.18

20

NUT

F2C-U151S-00-00

$1.59

21

SCREW, ROUND HEAD

90150-05807-00

$0.79

22

BASE, CLAMP

F1W-U828M-00-00

$1.23

23

RIVET, BLIND

90267-489U6-00

$1.37

24

CLAMP

90464-32801-00

$1.23

25

BASE, CLAMP

F1W-U828M-00-00

$1.23

26

CLAMP

90464-32801-00

$1.23

27

RIVET, BLIND

90267-489U6-00

$1.37

28

BASE, CLAMP

F1W-U828M-00-00

$1.23

29

RIVET, BLIND

90267-489U6-00

$1.37

30

CLAMP

90464-32801-00

$1.23

31

BASE, CLAMP

F1W-U828M-00-00

$1.23

32

RIVET, BLIND

90267-489U6-00

$1.37

33

BAND

90601-200U2-00

$3.16

34

WIRE, MINUS LEAD

6BU-82116-00-00

$93.92
