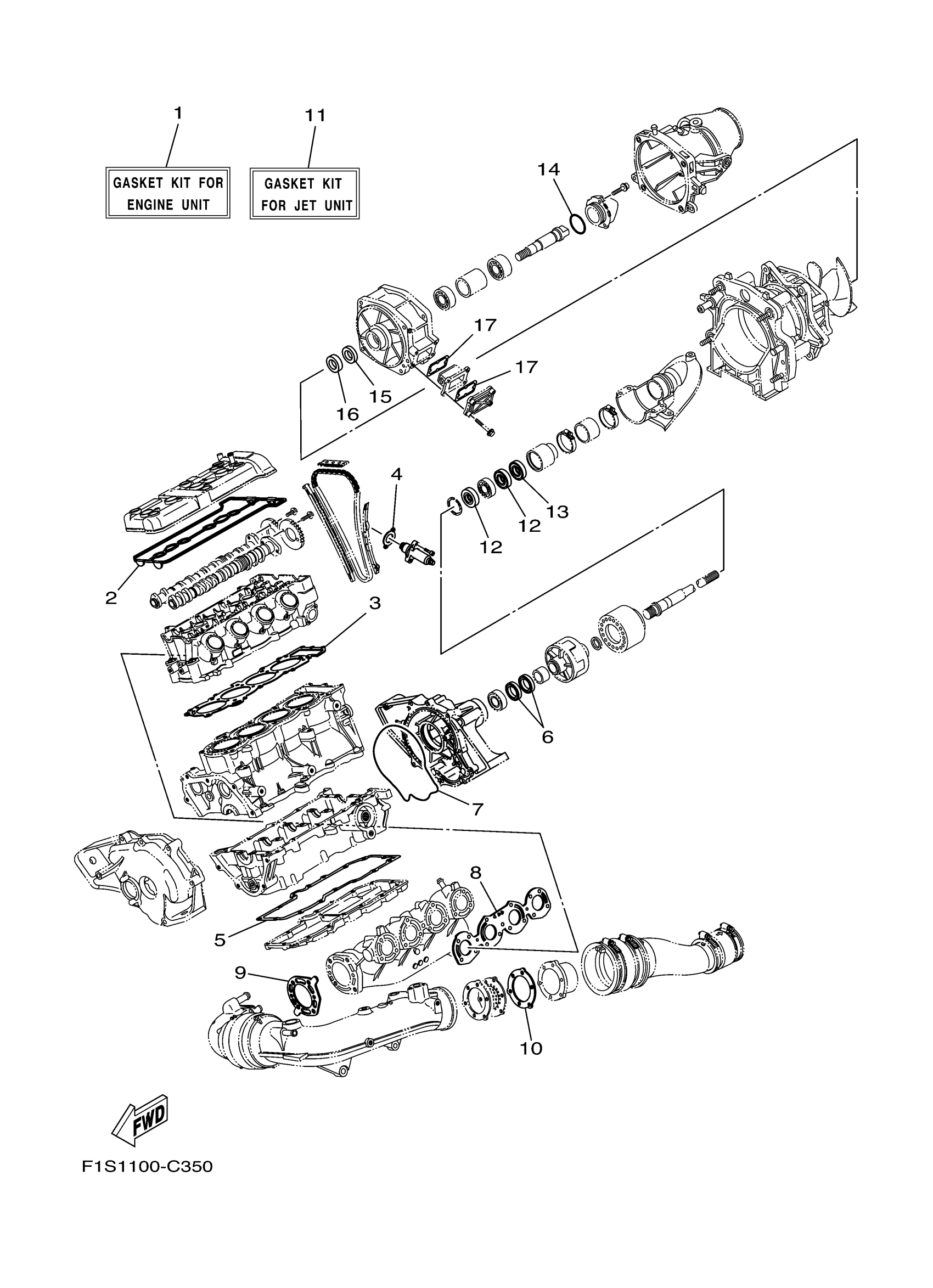

Yamaha VX1100D (WaveRunner VX110 Sport) F1K1 2005 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

6D3-W0001-00-00

$155.79

2

GASKET, HEAD COVER 1

60E-11193-01-00

$51.70

3

. GASKET, CYLINDER HEAD 1

6D3-11181-00-00

$95.37

4

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

5

GASKET

6B6-13557-01-00

$37.32

6

OIL SEAL

93101-35004-00

$25.36

7

GASKET

6B6-13475-01-00

$24.39

8

GASKET, EXHAUST PIPE

6D3-14613-00-00

$30.39

9

GASKET, MUFFLER DAMPER 1

6D3-14739-01-00

$45.93

10

. GASKET, EXHAUST PIPE

60E-14623-00-00

$4.55

11

GASKET KIT FOR JET UNIT

6D3-W0001-20-00

Unavailable

12

OIL SEAL(62T)

93101-25M55-00

$24.36

13

OIL SEAL

93101-24001-00

$30.69

14

. O-RING

93210-464A3-00

$3.03

15

. OIL SEAL

93101-21002-00

$20.13

16

. OIL SEAL

93101-21001-00

$20.13

17

. O-RING

66V-42414-00-00

$5.31
