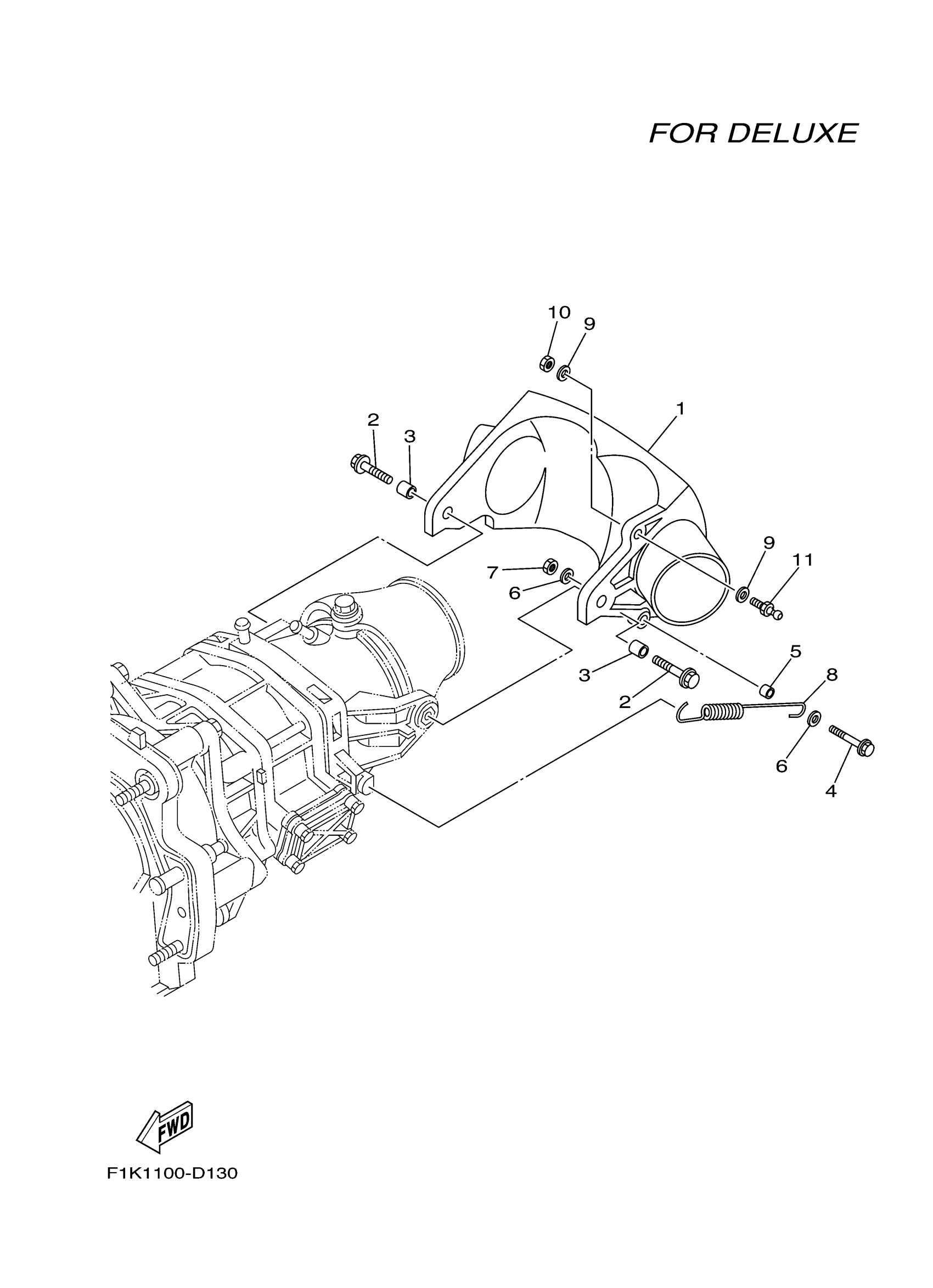

Yamaha VX1100D (WaveRunner VX110 Sport) F1K1 2005 JET UNIT 3 Diagram

#

Description

Price

1

GATE, REVERSE

6D3-R1314-00-00

$116.32

2

BOLT, WITH WASHER

90119-08841-00

$1.07

3

COLLAR

90387-08M30-00

$7.59

4

BOLT, WITH WASHER

90119-069UX-00

$2.80

5

COLLAR(6R8)

90387-06M30-00

Unavailable

6

WASHER, PLATE

90201-06020-00

$5.86

7

NUT

9538R-06600-00

$0.79

8

SPRING, RETAINER

6D3-52358-00-00

$6.83

9

WASHER, PLATE

90201-06020-00

$5.86

10

NUT

9538R-06600-00

$0.79

11

SHAFT, JOINT BALL

EU0-U1461-10-00

$28.70
