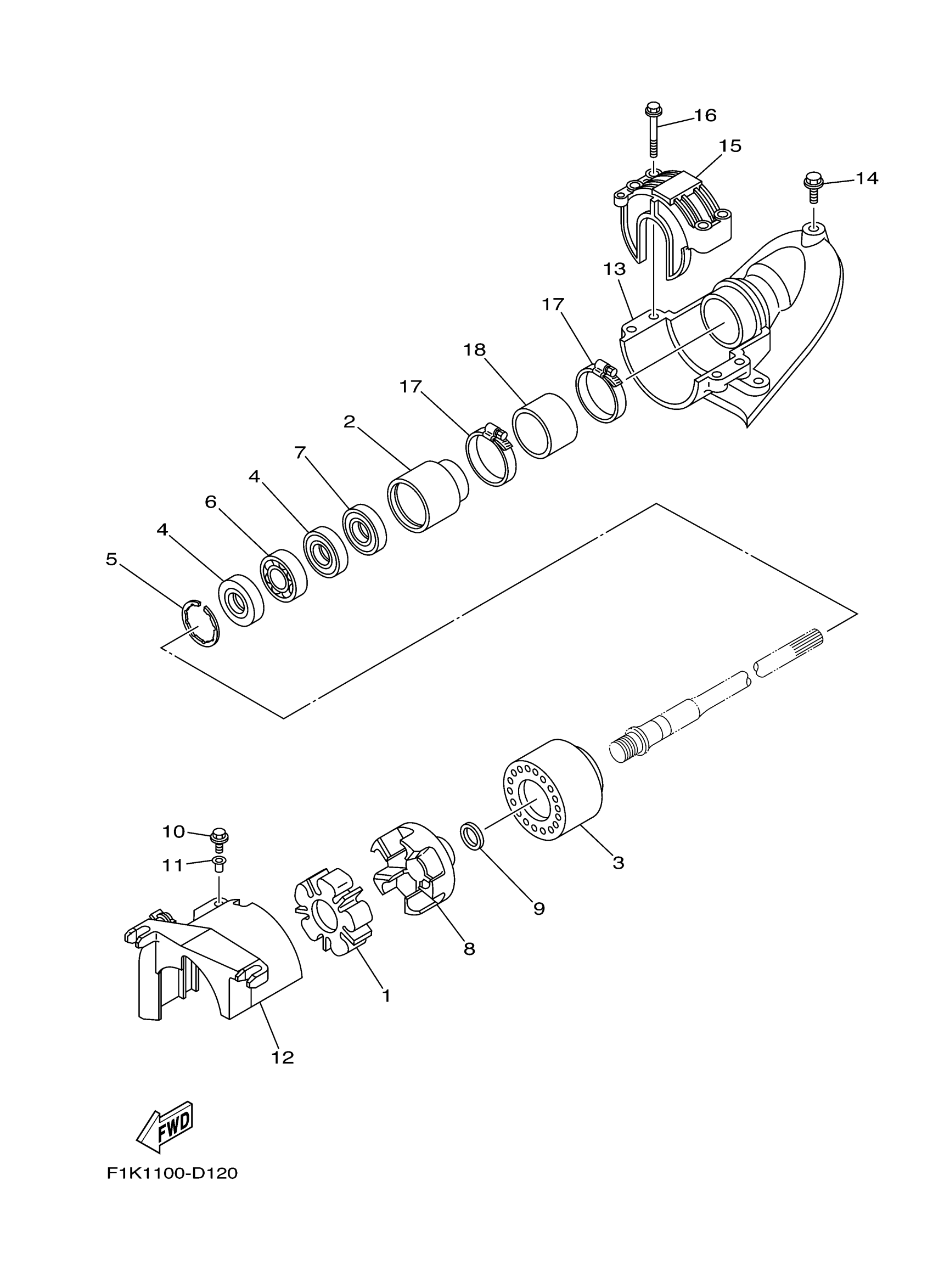

Yamaha VX1100D (WaveRunner VX110 Sport) F1K1 2005 JET UNIT 2 Diagram

#

Description
Price

1

RUBBER SHAFT COUPL

6D3-4581J-01-00

Unavailable

2

HOUSING, BEARING

6D3-45332-00-94

Unavailable

3

DAMPER

6D3-45235-01-00

Unavailable

4

OIL SEAL(62T)

93101-25M55-00

$24.36

5

CIRCLIP

93430-47M04-00

$5.31

6

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$33.83

7

OIL SEAL

93101-24001-00

$30.69

8

FLANGE, COUPLING 1

6D3-45593-00-94

$88.04

9

WASHER, PLATE

90201-24800-00

$1.43

10

BOLT, WITH WASHER

90119-06892-00

$4.01

11

COLLAR

90387-06M60-00

$6.83

12

COVER

60E-R1381-01-00

Unavailable

13

JOINT, PIPE

F1K-U883E-01-00

$43.06

14

BOLT

90109-06832-00

$2.58

15

CAP

F1K-U2155-01-00

$15.79

16

BOLT, WITH WASHER

90119-089U1-00

$3.37

17

BAND, HOSE 62

90601-162U5-00

$6.46

18

PIPE, 1

F1K-U883B-00-00

$19.39
