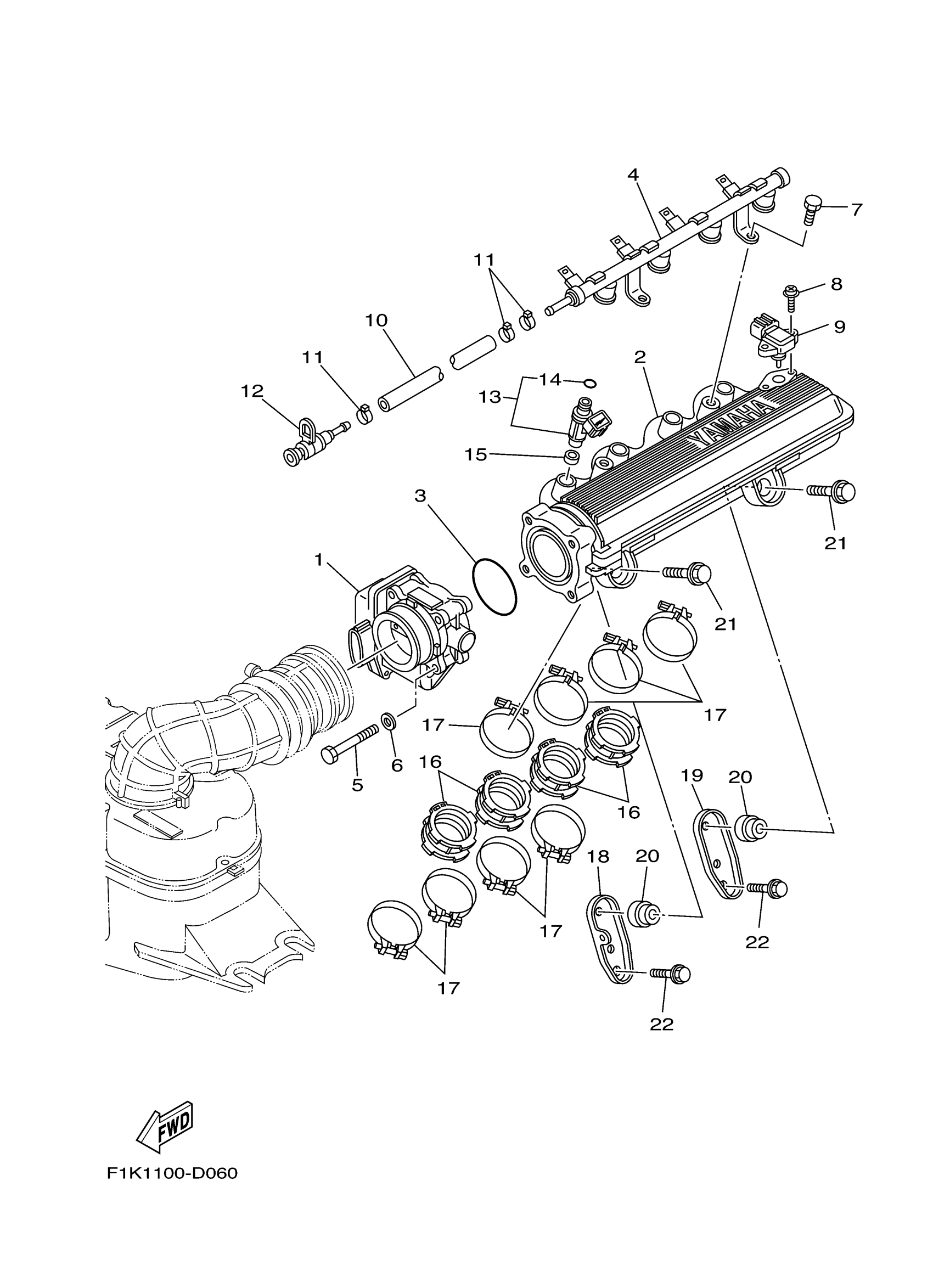

Yamaha VX1100D (WaveRunner VX110 Sport) F1K1 2005 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

6D3-13750-00-00

$1,704.46

2

MANIFOLD, INTAKE 1

6D3-13641-00-00

$629.84

3

SEAL

6D3-14457-00-00

$55.21

4

DELIVERY PIPE

6D3-12880-00-00

$610.43

5

BOLT 1

68V-13573-00-00

$15.66

6

WASHER

6P2-13578-00-00

$6.87

7

. BOLT

63P-14446-00-00

$9.69

8

. SCREW 3

68V-81147-00-00

$6.57

9

. SENSOR ASSY

68F-83688-00-00

$275.99

10

HOSE

6D3-14294-11-00

Unavailable

11

HOSE CLAMP ASSY

90450-17M17-00

$7.59

12

FUEL PIPE JOINT

60E-24300-01-00

$30.13

13

. INJECTOR

60E-13761-10-00

$207.45

14

.. O-RING

60E-14147-00-00

$6.07

15

GASKET

90430-09002-00

$9.00

16

JOINT, THROTTLE BODY 1

6D3-13795-01-00

$12.91

17

HOSE CLAMP ASSY

90450-57006-00

$12.15

18

STAY

6D3-14413-00-00

$15.66

19

STAY 2

6D3-14414-10-00

$15.49

20

COLLAR

60E-14449-00-94

$15.07

21

BOLT, WITH WASHER

90119-08050-00

$4.55

22

BOLT, WITH WASHER

90119-08074-00

$4.03
