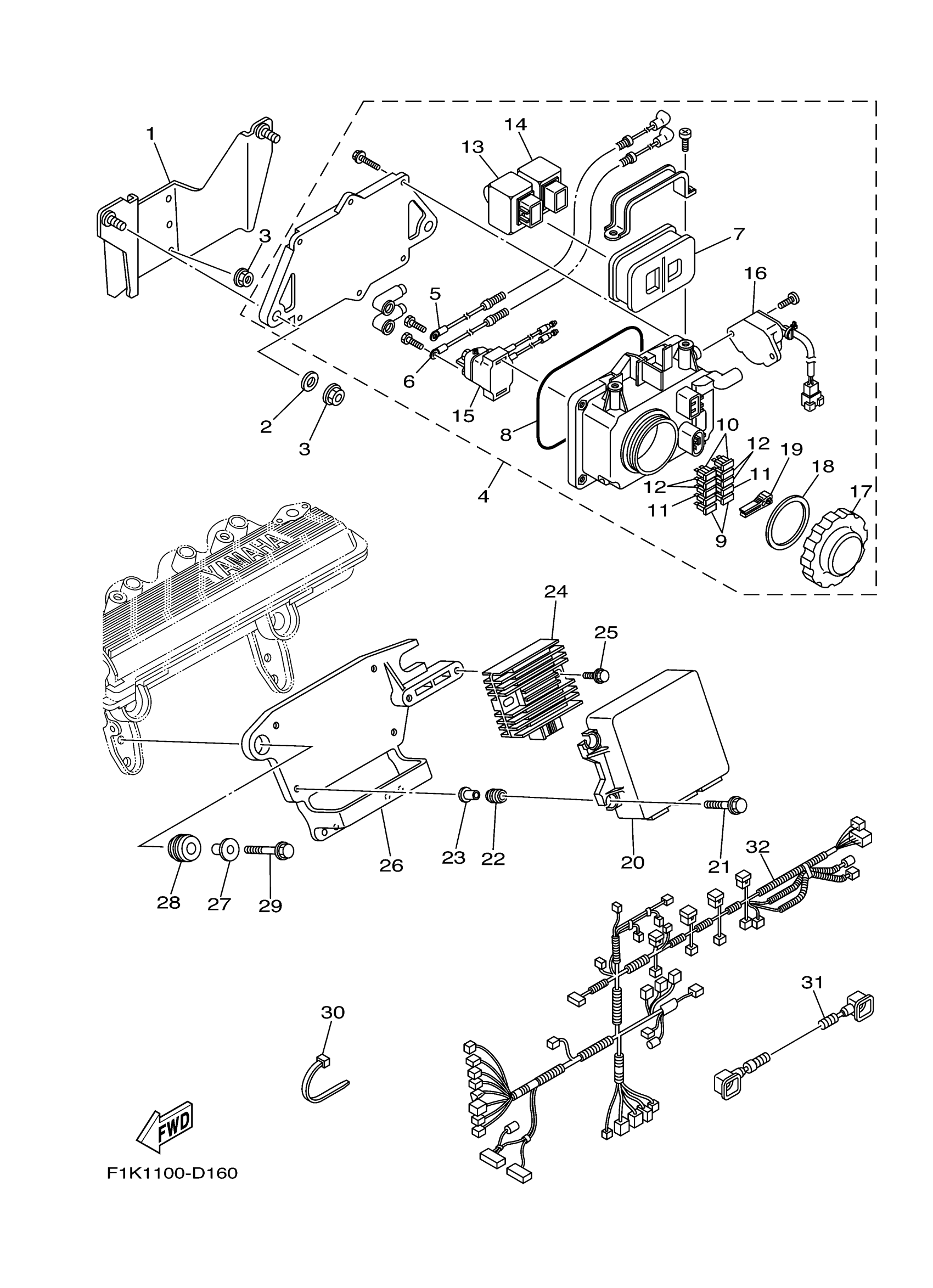

Yamaha VX1100D (WaveRunner VX110 Sport) F1K1 2005 ELECTRICAL 1 Diagram

#

Description
Price

1

BRACKET, ELECTRIC BOX

F1K-U815D-00-00

Unavailable

2

WASHER, PLATE

90201-099U3-00

$2.16

3

NUT, NYLON (6J8)

95780-08300-00

$10.55

4

FUSE BOX ASSY

6BU-82170-01-00

Unavailable

5

. WIRE, PLUS LEAD

6D3-82115-00-00

$124.23

6

. WIRE, LEAD

6D3-82117-00-00

$78.77

7

. DAMPER

6D3-82157-00-00

$33.99

8

. GASKET, TERMINAL

6D3-81921-00-00

$14.38

9

FUSE

5JJ-82151-20-00

$5.98

10

FUSE

5JJ-82151-60-00

$5.98

11

. FUSE (3A)

67F-82151-30-00

$4.69

12

. FUSE (10A)

67F-82151-40-00

$6.07

13

RELAY ASSY

60E-81950-00-00

$137.93

14

. RELAY ASSY

68V-81950-00-00

$111.74

15

. STARTER RELAY ASSY

6B6-81940-00-00

$97.06

16

SWITCH ASSY

60E-8259E-00-00

$142.53

17

. CAP

66V-8132W-00-00

$11.85

18

. GASKET

66V-81844-00-00

Unavailable

19

. PULLER, FUSE

67F-2812A-00-00

$4.11

20

ENGINE CONTROL UNIT ASSY

6D3-8591A-00-00

Unavailable

20

ENGINE CONTROL UNIT ASSY

6D3-8591A-A0-00

Unavailable

21

BOLT, WITH WASHER

90119-06311-00

$1.58

22

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

23

. COLLAR

90387-06119-00

$4.37

24

RECTIFIER & REGULATOR ASSY

6S8-81960-00-00

$163.22

25

BOLT, WITH WASHER

90119-06311-00

$1.58

26

BRACKET, UNIT

6D3-85991-01-00

$78.49

27

COLLAR

90387-08M37-00

$9.81

28

GROMMET

90480-22M15-00

$10.18

29

BOLT, WITH WASHER

90119-08187-00

$3.17

30

CLAMP(3XW)

90464-35132-00

Unavailable

31

WIRE, MINUS LEAD

6D3-82116-00-00

Unavailable

32

WIRE HARNESS ASSY 1

6D3-8259L-04-00

$1,718.17

32

WIRE HARNESS ASSY 1

6D3-8259L-A4-00

$1,718.17
