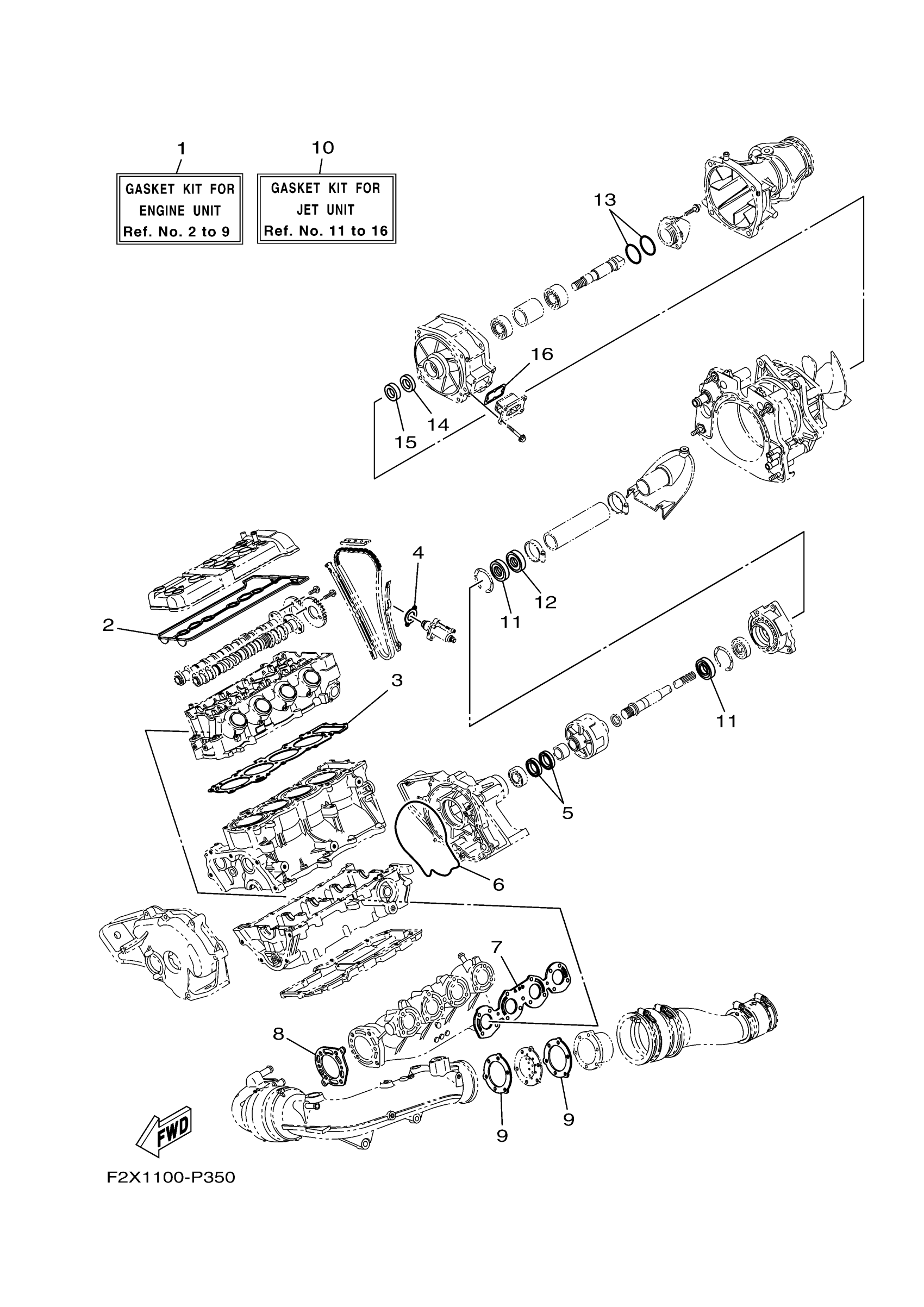

Yamaha VX1100CP (VX) F2X7 2015 REPAIR KIT 1 Diagram

#

Description

Price

1

GASKET KIT FOR ENGINE UNIT

6D3-W0001-01-00

Unavailable

2

GASKET, HEAD COVER 1

60E-11193-01-00

Unavailable

3

. GASKET, CYLINDER HEAD 1

6D3-11181-00-00

Unavailable

4

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

5

OIL SEAL

93101-35004-00

Unavailable

6

GASKET

6B6-13475-01-00

Unavailable

7

. GASKET, EXHAUST PIPE

6D3-14613-10-00

Unavailable

8

. GASKET, MUFFLER DAMPER 1

6D3-14739-10-00

Unavailable

9

. GASKET, EXHAUST PIPE

60E-14623-00-00

Unavailable

10

GASKET KIT FOR JET UNIT

6EX-W0001-20-00

Unavailable

11

OIL SEAL(62T)

93101-25M55-00

$30.99

12

. OIL SEAL

93102-25009-00

Unavailable

13

. O-RING

93210-464A3-00

Unavailable

14

. OIL SEAL

93101-21002-00

Unavailable

15

. OIL SEAL

93101-21001-00

Unavailable

16

. O-RING

66V-42414-00-00

Unavailable
