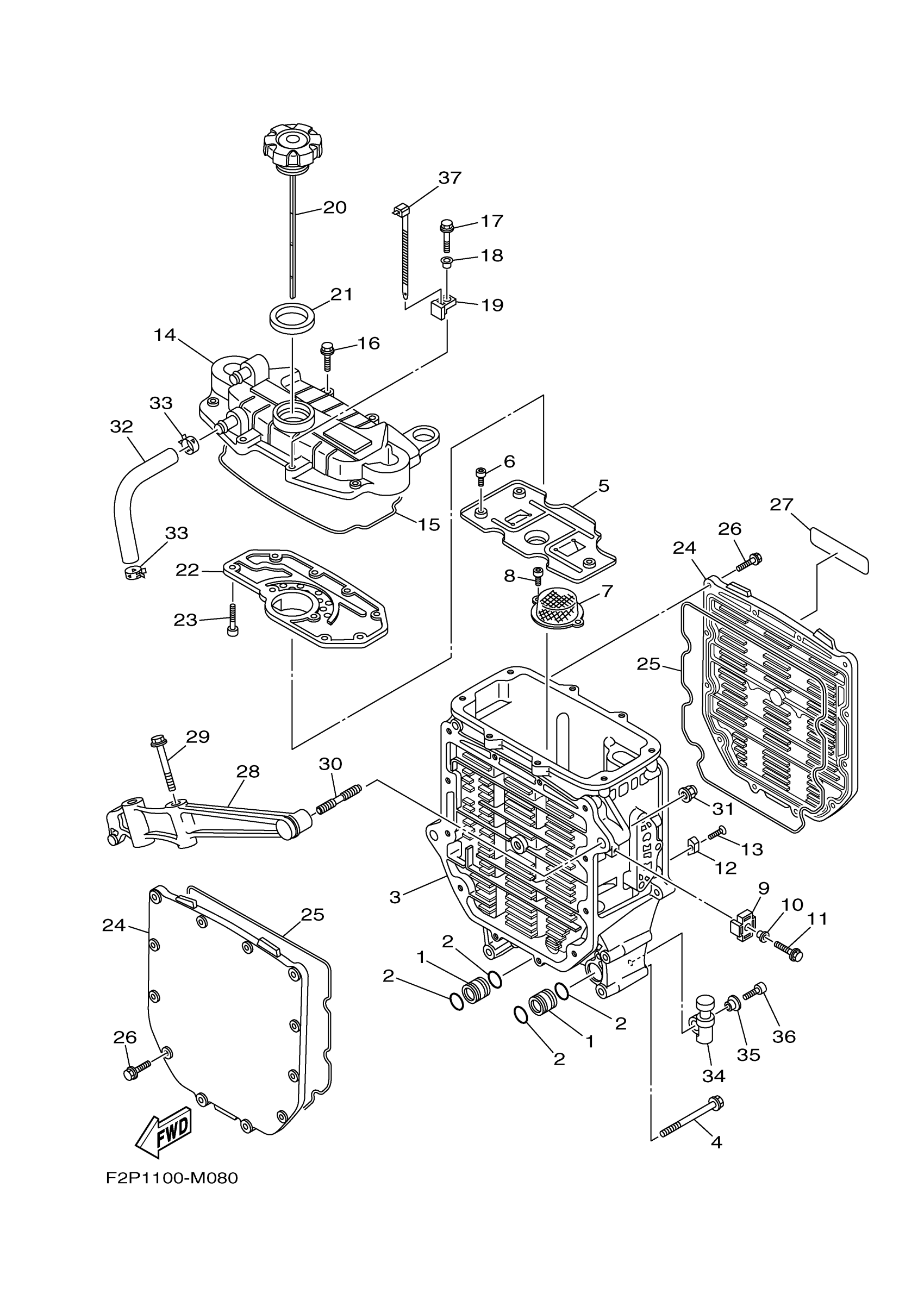

Yamaha VX1100CP (VX) F2X7 2015 OIL COOLER Diagram

#

Description
Price

1

CONNECTOR

60E-13446-00-00

$14.81

2

O-RING (1L9)

93210-18322-00

$4.46

3

CASE, OIL COOLER

6D3-13462-00-94

$597.00

4

BOLT, WITH WASHER

90119-10020-00

$5.82

5

PLATE, BAFFLE

6B6-13317-00-00

$21.63

6

BOLT,SOCKET

91317-05014-00

$6.23

7

STRAINER 2

60E-13421-00-00

$23.87

8

BOLT,SOCKET

91317-06014-00

$6.57

9

BRACKET

6BU-85542-00-00

$7.16

10

COLLAR

90387-06M05-00

$6.83

11

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.39

12

ANODE

6E5-11325-00-00

$4.52

13

SCREW, FLAT HEAD(GA5)

98780-04014-00

$1.97

14

COVER, OIL COOLER

6D3-13463-00-94

$344.76

15

GASKET

60E-13475-00-00

$19.37

16

BOLT, FLANGE

90105-06036-00

$2.24

17

BOLT, FLANGE

90105-06035-00

$2.16

18

COLLAR

90387-06M05-00

$6.83

19

BRACKET

6AA-85542-00-00

$2.24

20

PLUG, OIL LEVEL

6BU-15362-A0-00

$37.32

21

O-RING

60E-13473-00-00

$8.19

22

PLATE, BREATHER

6D3-11165-00-00

$89.54

23

BOLT, SOCKET

91317-05016-00

Unavailable

24

COVER, OIL COOLER

6D3-13443-00-94

$104.46

25

GASKET

60E-13476-10-00

$21.53

26

BOLT (689)

90105-06M07-00

Unavailable

27

LABEL, CAUTION 7

60E-83627-00-00

$4.48

28

STAY

6B6-13151-00-94

$167.15

29

BOLT, WITH WASHER

90119-10M23-00

$10.04

30

BOLT, STUD

90116-10016-00

$10.99

31

NUT, CAP

90176-10001-00

$3.41

32

PIPE, BREATHER 2

6D3-11167-00-00

$15.66

33

CLIP

90467-170A4-00

$2.16

34

. GROMMET

6S5-81364-11-00

$4.93

35

COLLAR

90387-06M05-00

$6.83

36

. BOLT

91380-06020-00

$1.94

37

CLAMP(6E8)

90465-13M39-00

Unavailable
