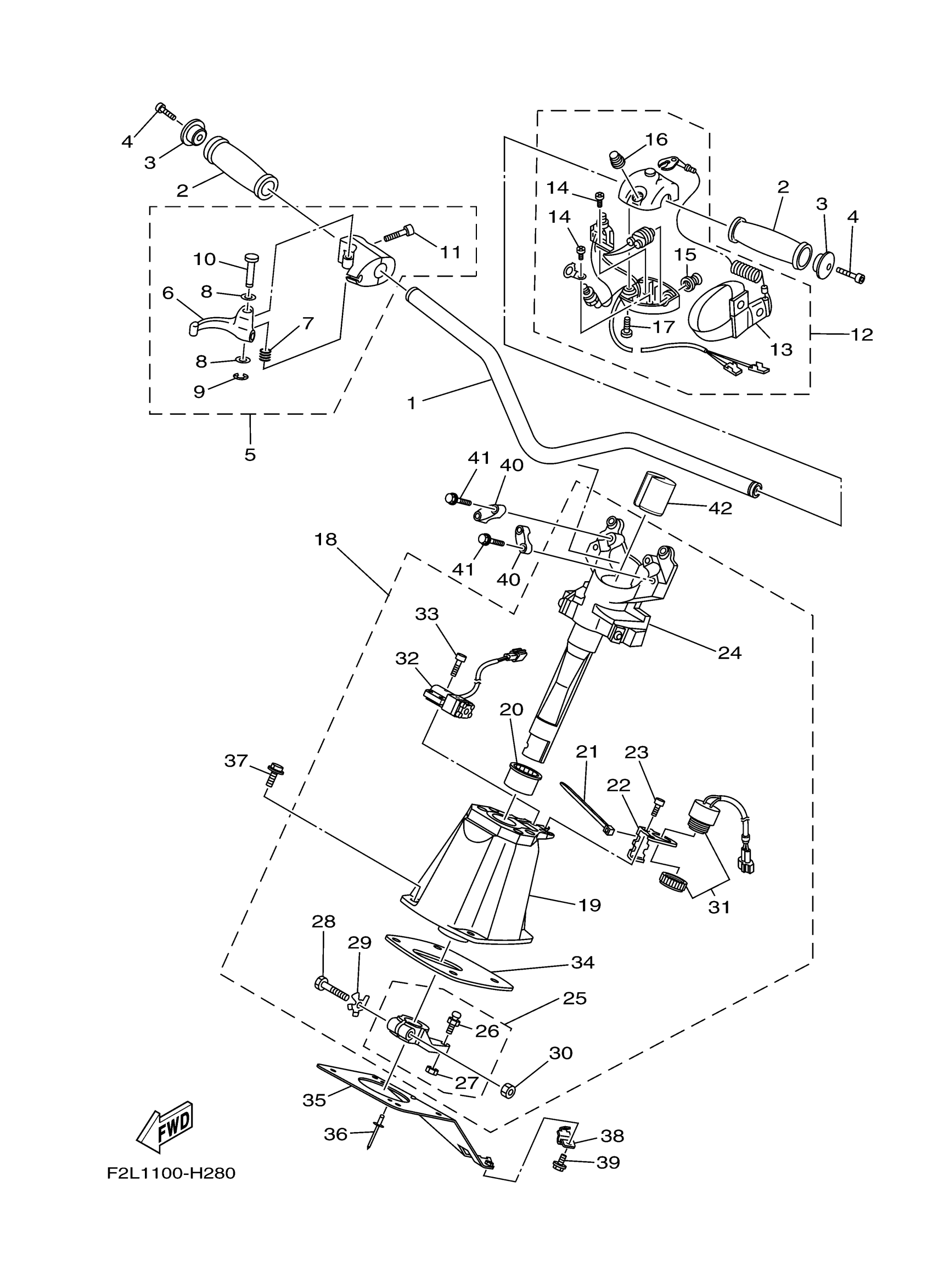

Yamaha VX1100CN (VX SPORT) F2PG 2014 STEERING 1 Diagram
#
1
HANDLE
F2N-U1552-00-00
Unavailable
2
GRIP, HANDLE
GP7-U155D-01-00
Unavailable
3
GRIP, END
GP7-U155F-00-00
Unavailable
4
BOLT, HEXAGON SOCKET HEAD
90110-05908-00
Unavailable
5
THROTTLE LEVER ASSY
F0D-67250-10-00
Unavailable
6
LEVER, THROTTLE
F0D-67255-02-00
Unavailable
7
. SPRING
EW2-67256-00-00
Unavailable
8
WASHER, PLAIN (646)
92990-05600-00
$0.80
9
CIRCLIP (EU0)
99080-04600-00
Unavailable
10
. SHAFT
F0D-67257-00-00
Unavailable
11
. BOLT, THROTTLE
F1X-6725F-01-00
Unavailable
12
SWITCH BOX ASSY
FK7-68310-07-00
Unavailable
13
. LANYARD, STOP SWITCH
EW2-68348-00-00
Unavailable
14
SCREW, PAN HEAD (J10)
98580-03008-00
$3.55
15
. STOP BUTTON COMP
FK7-68312-02-00
Unavailable
16
. START BUTTON COMP
FK7-68313-02-00
Unavailable
17
SCREW, PANHEAD (A93)
98580-05525-00
Unavailable
18
STEERING MASTER AS
F2X-61400-14-00
Unavailable
19
. HOUSING ASSY
F1K-6152M-00-00
Unavailable
20
. BUSH
F1K-6134M-00-00
Unavailable
21
BAND
1UA-82591-00-00
Unavailable
22
. SPACER, BRKT
F1K-6146H-10-00
Unavailable
23
SCREW
F1B-613C1-10-00
Unavailable
24
. SHAFT ASSY
F1K-67410-00-00
Unavailable
25
ARM ASSY.
F1K-6153R-01-00
Unavailable
26
STUD, JOINT BALL
EU0-61461-02-00
Unavailable
27
NUT, SELF-LOCKING
95720-06300-00
Unavailable
28
.. BOLT
F1K-61355-00-00
Unavailable
29
. PLATE, RETAINING
F1K-6142B-00-00
Unavailable
30
. NUT, SELF-LOCKING
95720-08300-00
Unavailable
31
BUZZER
F1S-68341-00-00
Unavailable
32
. SENSOR ASSY
F1W-68303-00-00
Unavailable
33
BOLT
F1W-61516-10-00
Unavailable
34
. SEAL, RUBBER
F1K-6143C-00-00
Unavailable
35
BRACKET,STOPPER CABLE
F1K-U1467-01-00
Unavailable
36
RIVET, BLIND
90267-489U2-00
Unavailable
37
BOLT,WITH WASHER
90119-08870-00
Unavailable
38
STOPPER, CABLE
F1K-U1468-03-00
Unavailable
39
BOLT, WITH WASHER
90119-06830-00
Unavailable
40
HOLDER, HANDLE UPPER
EU0-23814-32-00
Unavailable
41
BOLT, WITH WASHER
90119-08844-00
Unavailable
42
PLUG
F1K-U1949-00-00
Unavailable
