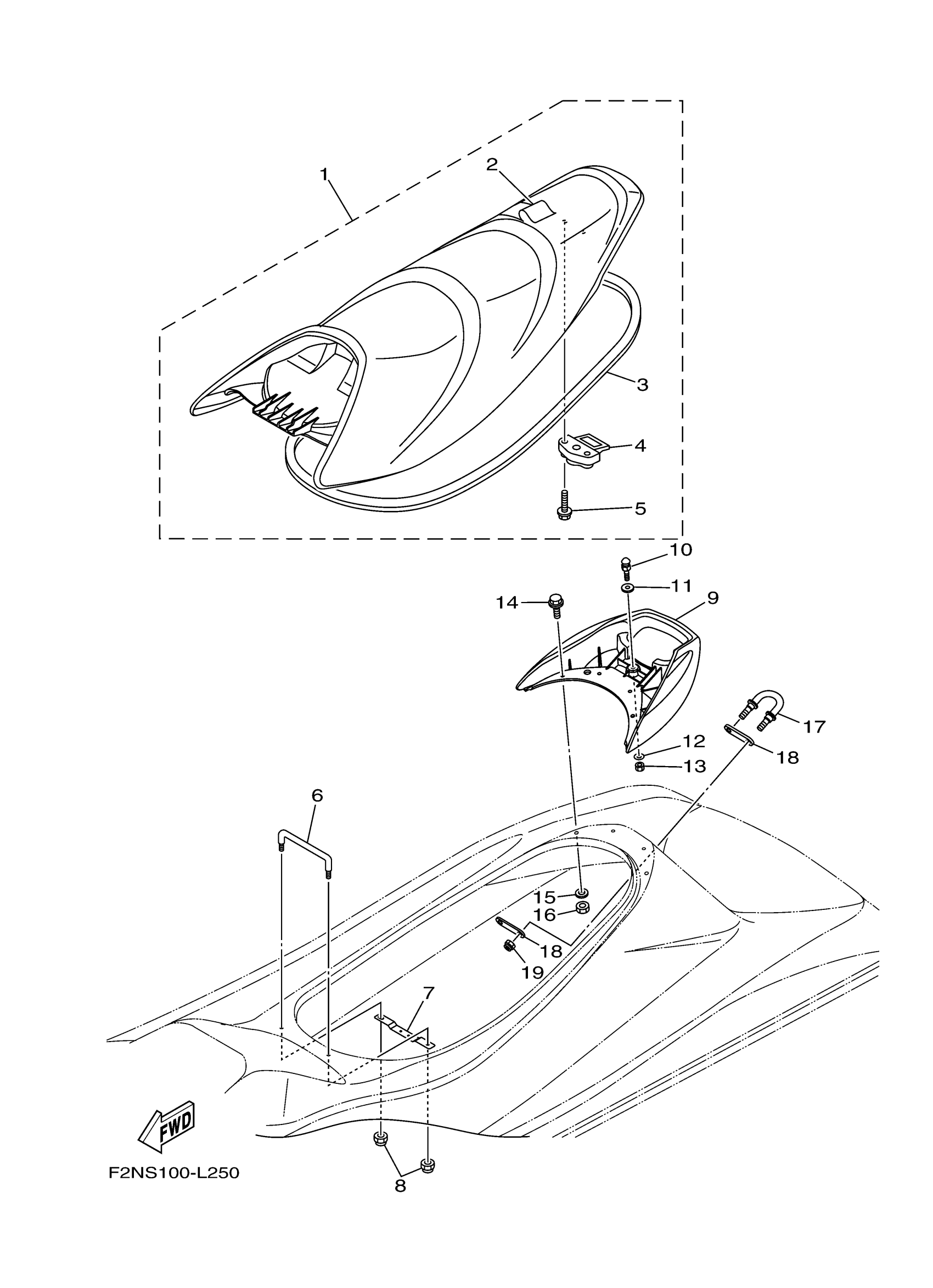

Yamaha VX1100CN (VX SPORT) F2PG 2014 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2N-U371A-04-00

$515.14

2

. COVER, SEAT 1

F2N-U371B-00-00

$131.29

3

. PACKING

F2N-U2664-00-00

$56.05

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$22.97

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

STAY, SEAT 1

F0X-6378C-00-00

$51.50

7

BRACKET,FILTER

F2N-U781E-00-00

$5.00

8

NUT, NYLON (6J8)

95780-08300-00

$10.55

9

GRIP, HAND

F2N-U271B-20-00

$219.68

10

PIN

GH1-U3774-00-00

$19.38

11

WASHER, PLATE

90201-109U6-00

$3.29

12

WASHER

9299R-10200-00

$1.63

13

NUT, NYLON

9572R-10300-00

$3.37

14

BOLT, WITH WASHER

90119-089U2-00

$3.11

15

WASHER

9299R-08200-00

$1.82

16

NUT, NYLON (6J8)

95780-08300-00

$10.55

17

STERN EYE

F2N-U1628-02-00

$4.96

18

PLATE A

GP7-U4953-10-00

$3.52

19

NUT, NYLON (6J8)

95780-08300-00

$10.55
