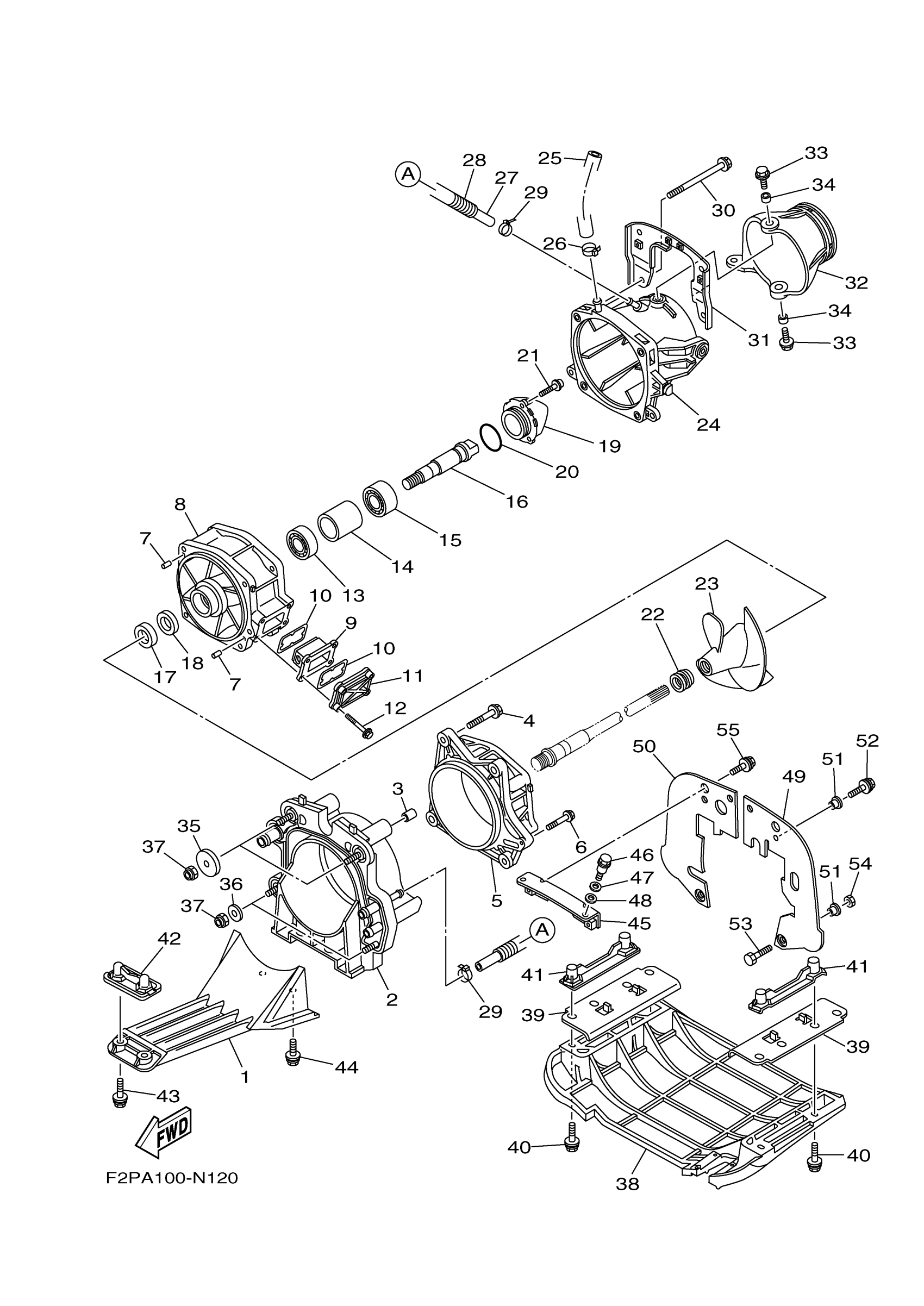

Yamaha VX1100CN (VX SPORT) F2PG 2014 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6D3-R1333-01-00

$81.78

2

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.41

4

BOLT, WITH WASHER

90119-10811-00

$1.37

5

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

6

BOLT, WITH WASHER

90119-06894-00

$1.37

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

66V-46882-00-00

$5.91

10

. O-RING

66V-42414-00-00

$5.18

11

COVER, WATER INLET

6AN-G5214-00-00

$18.17

12

BOLT,WITH WASHER

90119-06898-00

$3.43

13

BEARING

93306-27211-00

$37.41

14

SPACER 1

65V-45538-00-00

$29.88

15

BEARING (6K8)

93306-205U1-00

$19.73

16

SHAFT, DRIVE 4

6D3-45514-00-00

$216.65

17

. OIL SEAL

93101-21001-00

$19.63

18

. OIL SEAL

93101-21002-00

$19.63

19

CAP

6B6-51326-10-00

$40.89

20

. O-RING

93210-464A3-00

$2.95

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

22

CAP, IMPELLER

6D3-R1319-00-00

$2.00

23

IMPELLER

6D3-R1321-03-00

Unavailable

24

NOZZLE

6BU-R1318-01-00

$60.27

25

HOSE (L260)

90445-16006-00

$10.99

26

BAND, HOSE 18

90601-118UF-00

$2.07

27

HOSE (L355)

90445-14807-00

$1.74

28

HOSE (L320)

90446-20MF5-00

$4.57

29

CLAMP

90465-10098-00

$1.68

30

BOLT, WITH WASHER

90119-10807-00

$5.44

31

BRACKET 1

6D3-R1341-00-00

$48.47

32

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$43.06

33

BOLT, WITH WASHER

90119-08841-00

$1.01

34

COLLAR(6R7)

90387-08M06-00

Unavailable

35

WASHER

F1S-U725E-01-00

$7.89

36

WASHER, PLATE

90201-10801-00

$3.52

37

NUT, NYLON

9572R-10300-00

$3.37

38

PLATE 2

F2N-U273B-10-00

$219.68

39

SPACER

F2M-U143G-00-00

$31.80

40

BOLT, WITH WASHER

90119-08829-00

$3.88

41

BRACKET 2

F1G-U8572-02-00

$18.66

42

BRACKET, 3

F1K-U8577-01-00

$22.97

43

BOLT, WITH WASHER

90119-06896-00

$5.03

44

BOLT, WITH WASHER

90119-10809-00

Unavailable

45

BRACKET

F1K-U7557-01-00

$28.02

46

BOLT

90109-08043-00

$4.09

47

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

48

GASKET

90430-12002-00

$1.81

49

PLATE, RUBBER 1

F1K-U757E-01-00

$14.38

50

PLATE, RUBBER 2

F1K-U757F-01-00

$17.22

51

COLLAR

90387-06080-00

$7.27

52

BOLT, WITH WASHER

90119-06878-00

$3.43

53

BOLT

90101-069U0-00

$1.23

54

NUT, NYLON

9572R-06300-00

$2.80

55

BOLT, WITH WASHER

90119-08800-00

$4.09
