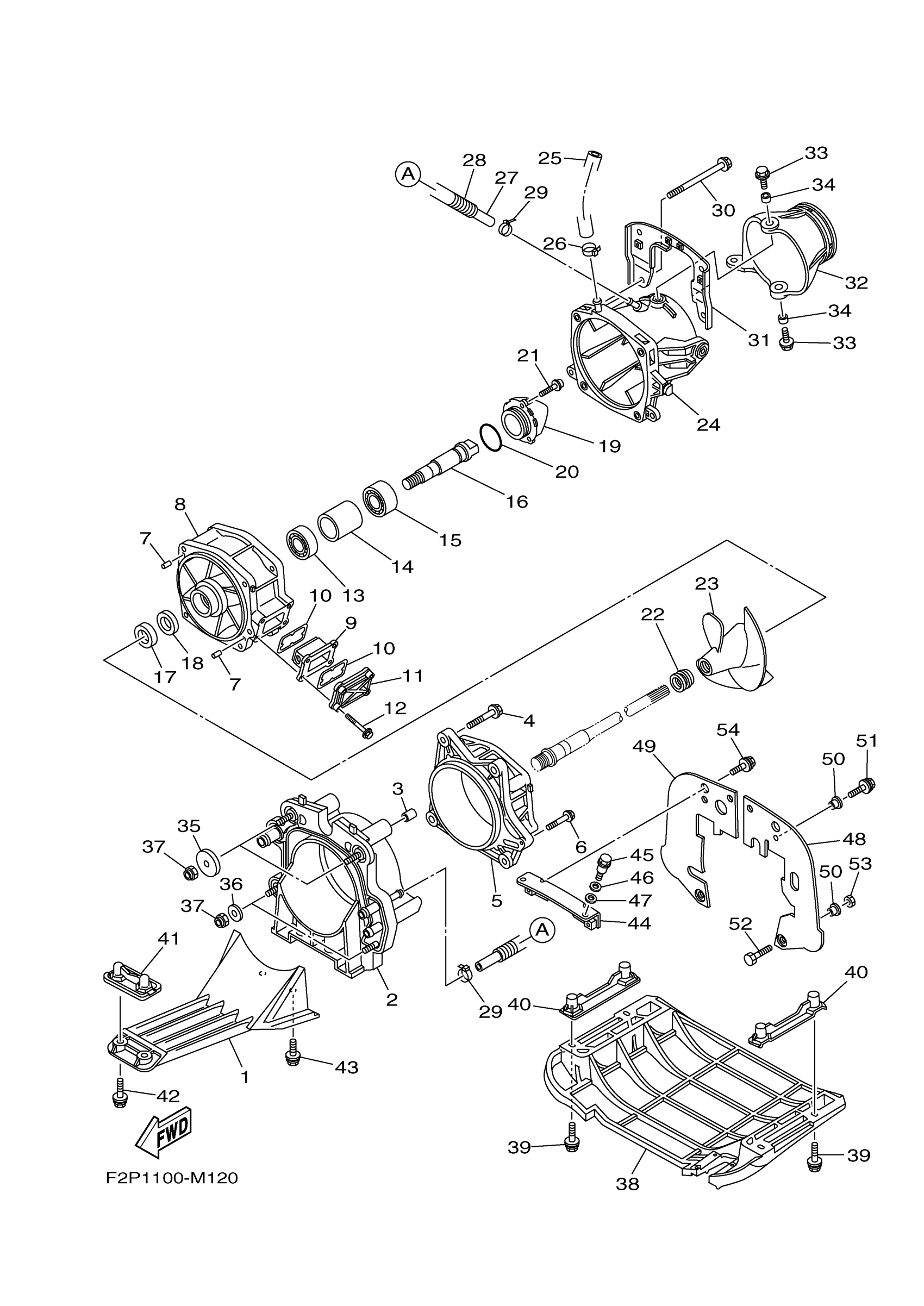

Yamaha VX1100CM (VX SPORT) F2P7 2013 JET UNIT 1 Diagram
#
1
SCREEN, INTAKE
6D3-R1333-01-00
Unavailable
2
PLATE, TRANSOM
6AN-G5831-10-00
Unavailable
3
PIN, DOWEL(4JT)
99590-14016-00
$4.24
4
BOLT, WITH WASHER
90119-10811-00
Unavailable
5
HOUSING, IMPELLER
6CR-R1312-00-00
Unavailable
6
BOLT, WITH WASHER
90119-06894-00
Unavailable
7
PIN, DOWEL (614)
93606-12019-00
$4.24
8
DUCT, IMPELLER SET
99999-04430-00
Unavailable
9
FILTER
66V-46882-00-00
Unavailable
10
. O-RING
66V-42414-00-00
Unavailable
11
COVER, WATER INLET
6AN-G5214-00-00
Unavailable
12
BOLT,WITH WASHER
90119-06898-00
Unavailable
13
BEARING
93306-27211-00
Unavailable
14
SPACER 1
65V-45538-00-00
Unavailable
15
BEARING (6K8)
93306-205U1-00
$25.99
16
SHAFT, DRIVE 4
6D3-45514-00-00
Unavailable
17
. OIL SEAL
93101-21001-00
Unavailable
18
. OIL SEAL
93101-21002-00
Unavailable
19
CAP
6B6-51326-10-00
Unavailable
20
. O-RING
93210-464A3-00
Unavailable
21
BOLT, HEXAGON SOCKET HEAD
90110-06823-00
Unavailable
22
CAP, IMPELLER
6D3-R1319-00-00
Unavailable
23
IMPELLER
6D3-R1321-03-00
Unavailable
24
NOZZLE
6BU-R1318-01-00
Unavailable
25
HOSE (L260)
90445-16006-00
Unavailable
26
BAND, HOSE 18
90601-118UF-00
Unavailable
27
HOSE (L355)
90445-14807-00
Unavailable
28
HOSE (L320)
90446-20MF5-00
Unavailable
29
CLAMP
90465-10098-00
Unavailable
30
BOLT, WITH WASHER
90119-10807-00
Unavailable
31
BRACKET 1
6D3-R1341-00-00
Unavailable
32
NOZZLE, DEFLECTOR
6BU-R1313-00-00
Unavailable
33
BOLT, WITH WASHER
90119-08841-00
Unavailable
34
COLLAR(6R7)
90387-08M06-00
Unavailable
35
WASHER
F1S-U725E-01-00
Unavailable
36
WASHER, PLATE
90201-10801-00
Unavailable
37
NUT, NYLON
9572R-10300-00
Unavailable
38
PLATE 2
F2N-U273B-10-00
Unavailable
39
BOLT, WITH WASHER
90119-08829-00
Unavailable
40
BRACKET 2
F1G-U8572-02-00
Unavailable
41
BRACKET, 3
F1K-U8577-01-00
Unavailable
42
BOLT, WITH WASHER
90119-06896-00
Unavailable
43
BOLT, WITH WASHER
90119-10809-00
Unavailable
44
BRACKET
F1K-U7557-01-00
Unavailable
45
BOLT
90109-08043-00
Unavailable
46
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
47
GASKET
90430-12002-00
Unavailable
48
PLATE, RUBBER 1
F1K-U757E-01-00
Unavailable
49
PLATE, RUBBER 2
F1K-U757F-01-00
Unavailable
50
COLLAR
90387-06080-00
Unavailable
51
BOLT, WITH WASHER
90119-06878-00
Unavailable
52
BOLT
90101-069U0-00
Unavailable
53
NUT, NYLON
9572R-06300-00
Unavailable
54
BOLT, WITH WASHER
90119-08800-00
Unavailable
