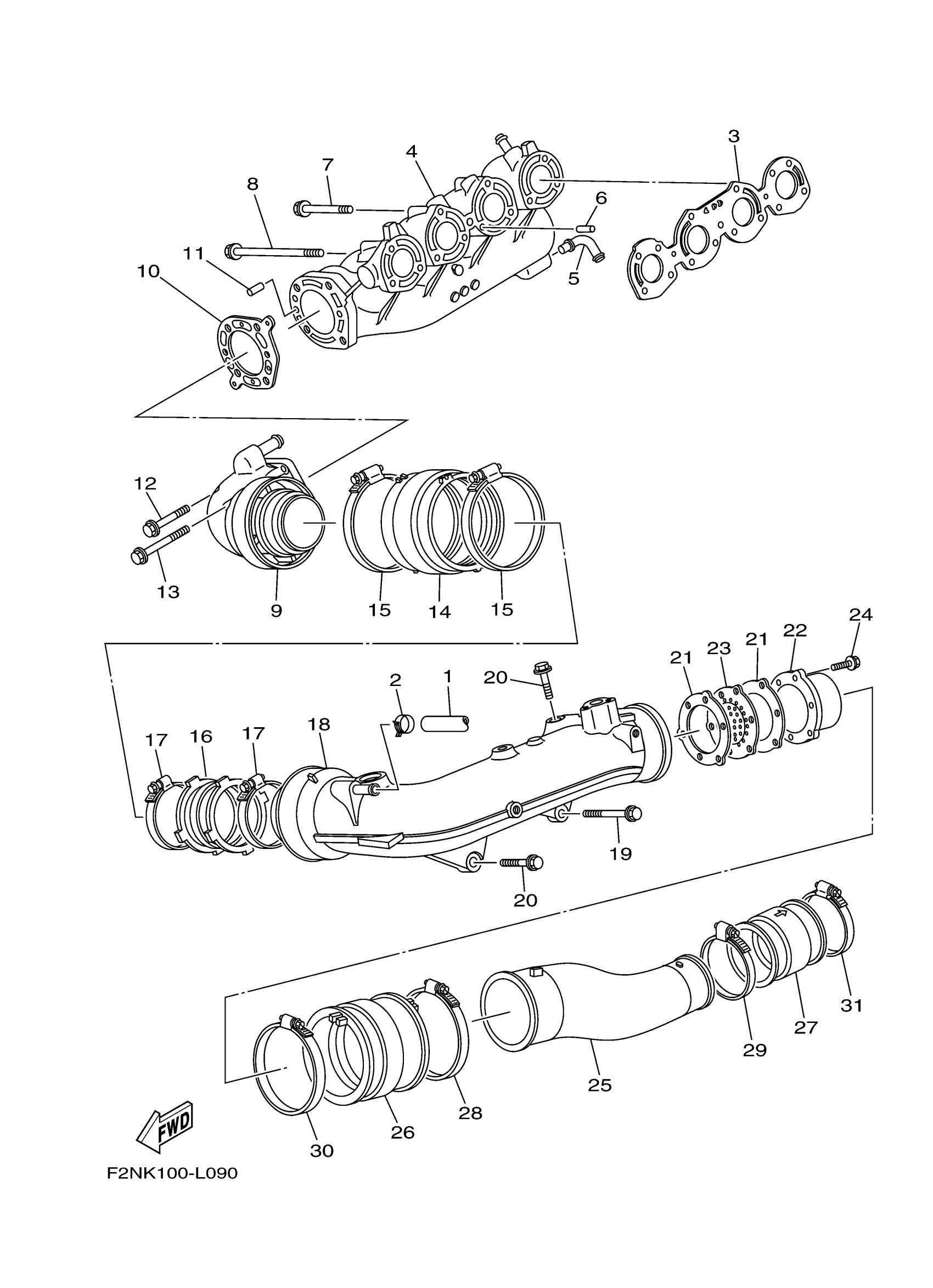

Yamaha VX1100CM (VX SPORT) F2P7 2013 EXHAUST 1 Diagram

#

Description
Price

1

HOSE, 4

6BU-1244G-10-00

$19.10

2

CLIP

90467-160A0-00

$3.03

3

. GASKET, EXHAUST PIPE

6D3-14613-10-00

$25.07

4

MUFFLER 1

6D3-14711-10-00

$920.57

5

NIPPLE, HOSE

60E-11372-10-00

$19.10

6

PIN, DOWEL

93608-16M16-00

$2.38

7

BOLT, WITH WASHER

90119-08036-00

$3.97

8

BOLT, WITH WASHER

90119-08075-00

$5.31

9

RING, JOINT

6D3-14712-00-94

$402.93

10

. GASKET, MUFFLER DAMPER 1

6D3-14739-10-00

$35.28

11

PIN, DOWEL (614)

93606-12019-00

$3.50

12

BOLT, WITH WASHER

90119-08036-00

$3.97

13

BOLT, WITH WASHER

90119-08031-00

$4.85

14

JOINT, EXHAUST 1

6D3-14615-00-00

$73.51

15

HOSE CLAMP ASSY

90450-99005-00

$11.01

16

JOINT, EXHAUST 2

6D3-14625-00-00

$45.57

17

HOSE CLAMP ASSY

90450-90001-00

$36.75

18

MUFFLER 2

6D3-14721-10-00

$836.75

19

BOLT, WITH WASHER

90119-10017-00

$6.18

20

BOLT, WITH WASHER

90119-10013-00

$4.93

21

. GASKET, EXHAUST PIPE

60E-14623-00-00

$4.55

22

PIPE, TAIL

60E-14784-00-94

$38.75

23

PLATE, SILENCER 6

6D3-1469W-10-00

$37.61

24

BOLT, WASHER BASED(4EB)

90105-06790-00

Unavailable

25

PIPE, OUTLET

6BU-14752-00-94

$164.69

26

PIPE 2

6BU-1475E-00-00

$33.81

27

PIPE 3

6BU-1475F-00-00

$29.40

28

HOSE CLAMP ASSY

90450-99004-00

$8.73

29

HOSE CLAMP ASSY

90450-94001-00

$13.96

30

HOSE CLAMP ASSY

90450-99004-00

$8.73

31

HOSE CLAMP ASSY

90450-94001-00

$13.96
