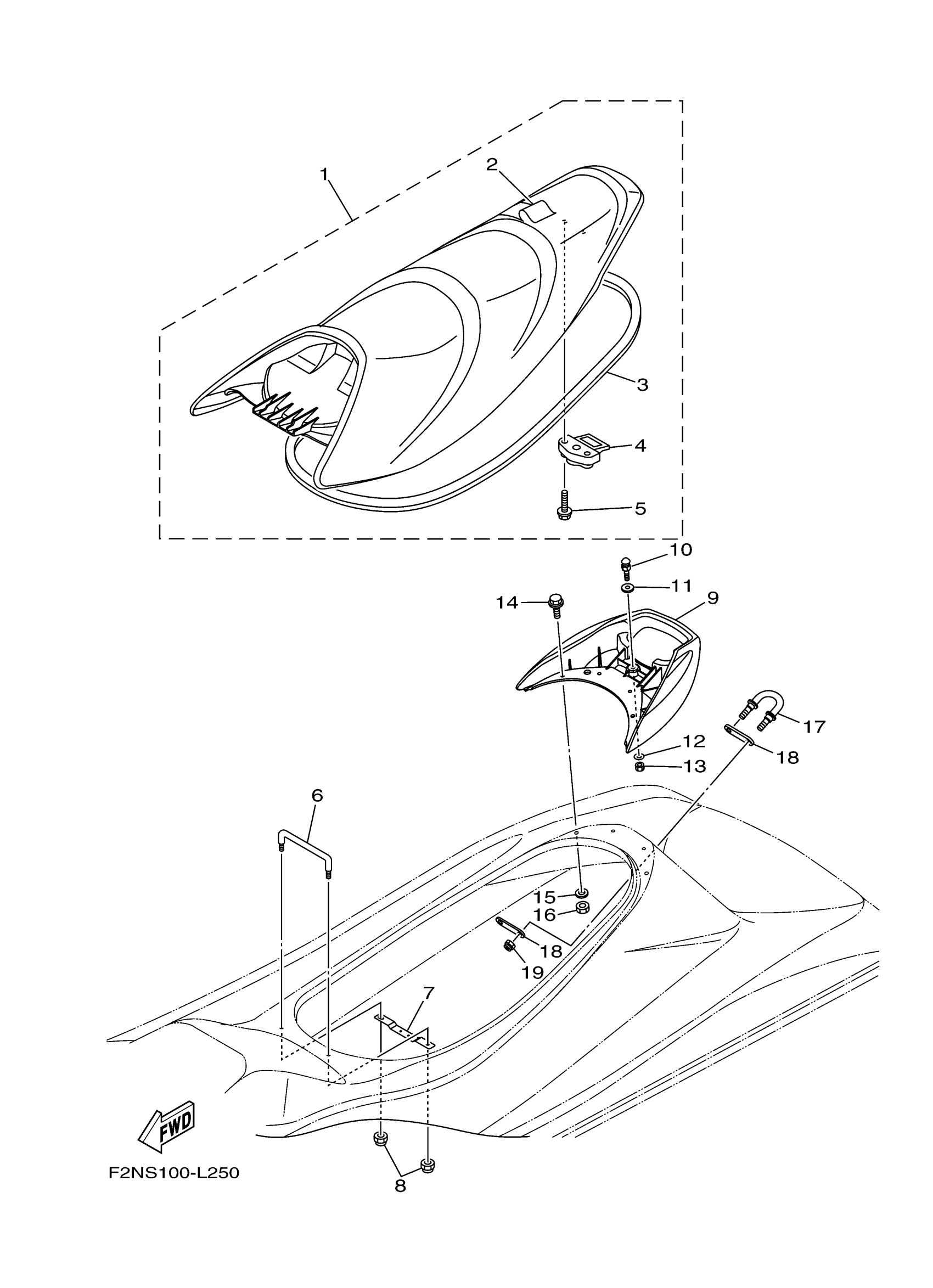

Yamaha VX1100CL (VX SPORT) F2NS 2012 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F2N-U371A-04-00

$588.53

2

. COVER, SEAT 1

F2N-U371B-00-00

$86.75

3

. PACKING

F2N-U2664-00-00

$54.40

4

. SEAT LOCK ASSY

F2C-U3850-00-00

$24.39

5

BOLT, WITH WASHER

90119-06808-00

$2.16

6

STAY, SEAT 1

F0X-6378C-00-00

$49.99

7

BRACKET,FILTER

F2N-U781E-00-00

$4.85

8

NUT, NYLON (6J8)

95780-08300-00

$10.09

9

GRIP, HAND

F2N-U271B-01-00

$335.28

10

PIN

GH1-U3774-00-00

$20.81

11

WASHER, PLATE

90201-109U6-00

$3.43

12

WASHER

9299R-10200-00

$1.72

13

NUT, NYLON

9572R-10300-00

$3.52

14

BOLT, WITH WASHER

90119-089U2-00

$3.01

15

WASHER

9299R-08200-00

Unavailable

16

NUT, NYLON (6J8)

95780-08300-00

$10.09

17

STERN EYE

F2N-U1628-02-00

$5.17

18

PLATE A

GP7-U4953-10-00

$3.65

19

NUT, NYLON (6J8)

95780-08300-00

$10.09
