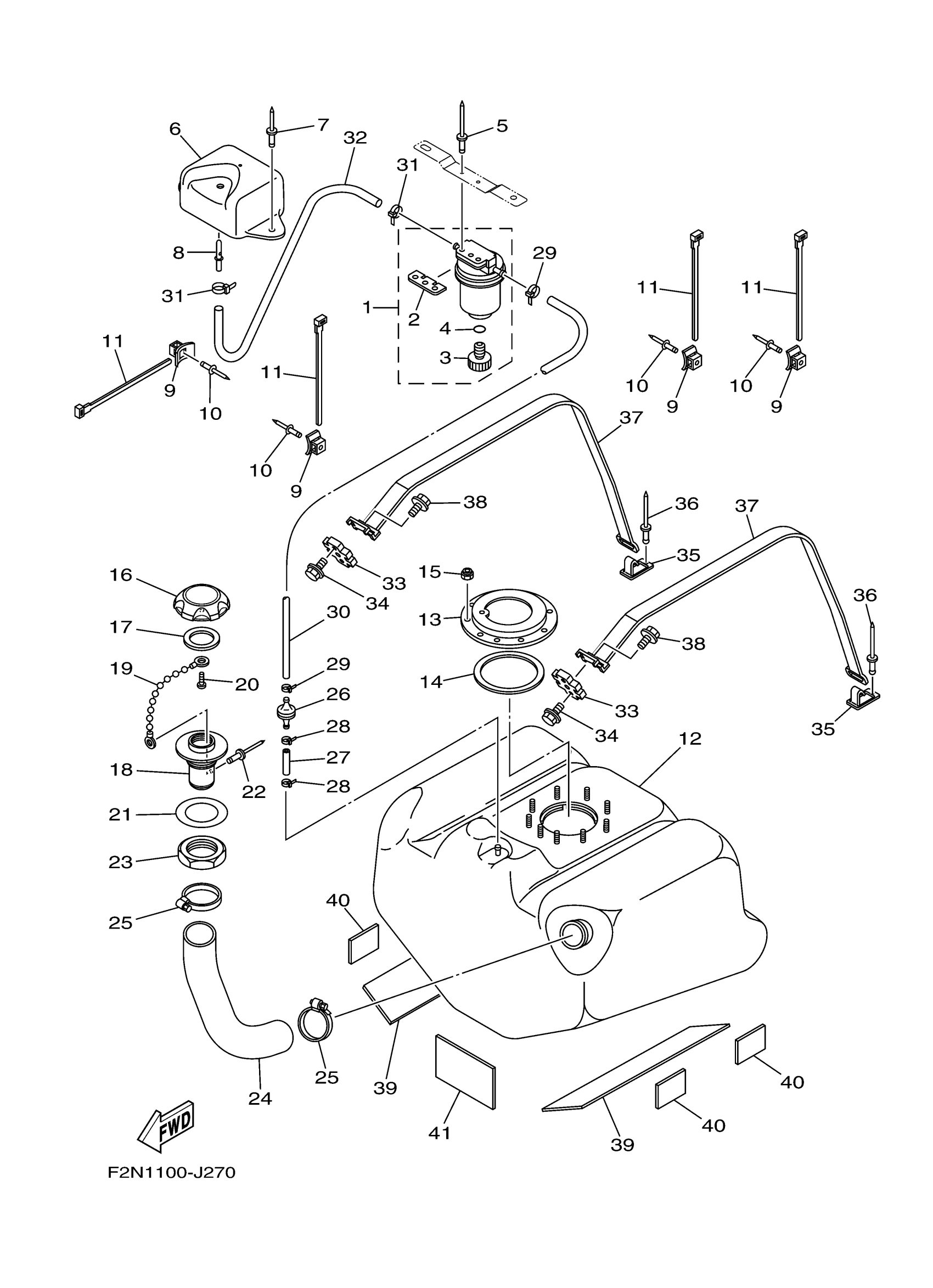

Yamaha VX1100CL (VX SPORT) F2NS 2012 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$54.74

2

. PLATE, FILTER

EW2-62142-00-00

$44.99

3

. PLUG, DRAIN

70R-24543-00-00

$9.08

4

. O-RING

70R-24489-00-00

$5.00

5

RIVET (EU0)

90267-48938-00

$5.00

6

SOCKET, VENTILATION

F1W-U2159-00-00

$9.08

7

RIVET, BLIND

90267-489U6-00

$1.37

8

PIPE, VENTILATION

F1G-62149-00-00

$11.35

9

BASE, CLAMP

F1W-U828M-00-00

$1.23

10

RIVET, BLIND

90267-489U6-00

$1.37

11

CLAMP

90464-32801-00

$1.23

12

TANK, FUEL

F1K-U7711-10-00

Unavailable

13

RING

F1B-U7773-00-00

$20.81

14

PACKING, SEAL

F1B-67747-00-00

$16.66

15

NUT, NYLON

9572R-06300-00

$2.80

16

CAP, FUEL FILLER

F2N-U7831-10-00

$14.94

17

PACKING

GP7-U7832-01-00

$5.35

18

SOCKET

GP7-U7833-11-00

$10.75

19

CHAIN BALL

GP7-U7835-00-00

$4.51

20

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.23

21

PACKING FUEL FILLER

GP7-U7834-00-00

$11.65

22

RIVET, BLIND

90267-329UR-00

$1.15

23

NUT, FUEL FILLER

GP7-U783F-00-00

$4.72

24

HOSE

F2N-U7844-00-00

$30.29

25

BAND, HOSE 55

90601-155U4-00

$5.87

26

CHECK VALVE

EU0-67767-31-00

$20.93

27

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.32

28

CLAMP

90465-10098-00

$1.68

29

CLAMP

90465-10098-00

$1.68

30

HOSE, AIR VENT

F1K-U785G-01-00

Unavailable

31

CLAMP

90465-10098-00

$1.68

32

HOSE, AIR VENT

F0D-U7856-11-00

Unavailable

33

NUT, SPECIAL

F1X-U2873-00-00

$12.11

34

BOLT, WITH WASHER

90119-06830-00

Unavailable

35

HOOK A

F1K-U5772-04-00

$6.29

36

RIVET (EU0)

90267-48938-00

$5.00

37

BELT, TANK 1

F2N-67743-01-00

Unavailable

38

BOLT, WITH WASHER

90119-08800-00

$4.09

39

MAT 1

F1K-U759B-00-00

Unavailable

40

MAT 2

F1W-U759C-01-00

$2.50

41

PAD, BATTERY

F1S-U8221-00-00

$2.75
