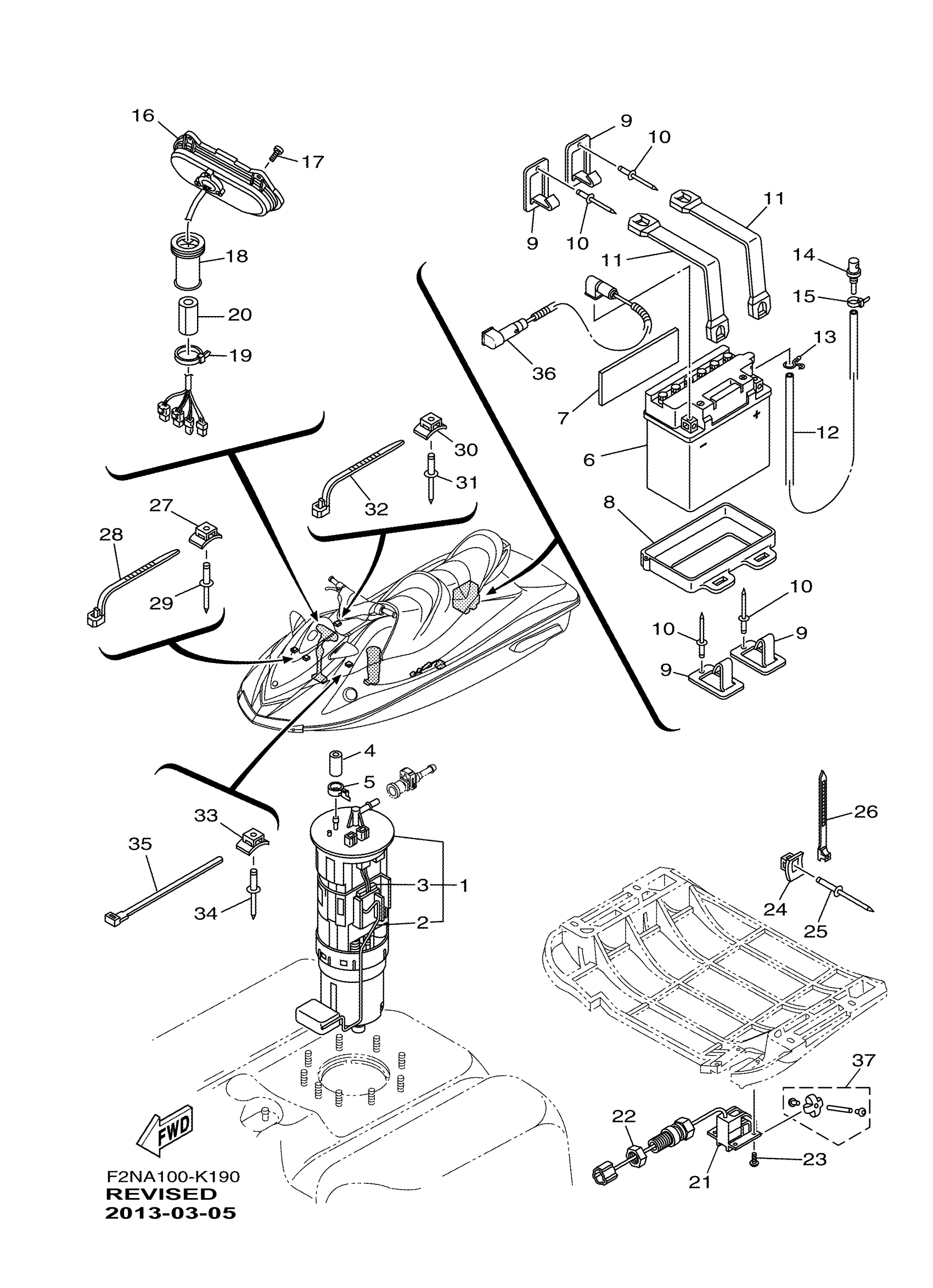

Yamaha VX1100CL (VX SPORT) F2NS 2012 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

PLUG

6D3-24481-00-00

Unavailable

5

CLIP

6D3-24387-00-00

Unavailable

6

BATTERY ASSY

EU0-82110-08-00

Unavailable

7

PAD, BATTERY

F1K-U8221-00-00

Unavailable

8

CASE, BATTERY

F1K-U8211-01-00

Unavailable

9

HOOK A

F1K-U5772-04-00

Unavailable

10

RIVET (EU0)

90267-48938-00

Unavailable

11

BAND, BATTERY 1

F1K-U821D-01-00

Unavailable

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

Unavailable

14

NIPPLE

GJ3-6215F-00-00

Unavailable

15

CLAMP

90465-10098-00

Unavailable

16

METER ASSY

F2N-6820A-10-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-05009-00

Unavailable

18

GROMMET

GU2-6822E-01-00

Unavailable

19

CLAMP

90464-32801-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

21

SENSOR SPEED

F1S-U8K31-03-00

Unavailable

22

NUT

F2C-U151S-00-00

Unavailable

23

SCREW, ROUND HEAD

90150-05807-00

Unavailable

24

BASE, CLAMP

F1W-U828M-00-00

Unavailable

25

RIVET, BLIND

90267-489U6-00

Unavailable

26

CLAMP

90464-32801-00

Unavailable

27

BASE, CLAMP

F1W-U828M-00-00

Unavailable

28

CLAMP

90464-32801-00

Unavailable

29

RIVET, BLIND

90267-489U6-00

Unavailable

30

BASE, CLAMP

F1W-U828M-00-00

Unavailable

31

RIVET, BLIND

90267-489U6-00

Unavailable

32

CLAMP

90464-32801-00

Unavailable

33

BASE, CLAMP

F1W-U828M-00-00

Unavailable

34

RIVET, BLIND

90267-489U6-00

Unavailable

35

BAND

90601-200U2-00

Unavailable

36

WIRE, MINUS LEAD

6BU-82116-00-00

Unavailable

37

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

Unavailable
