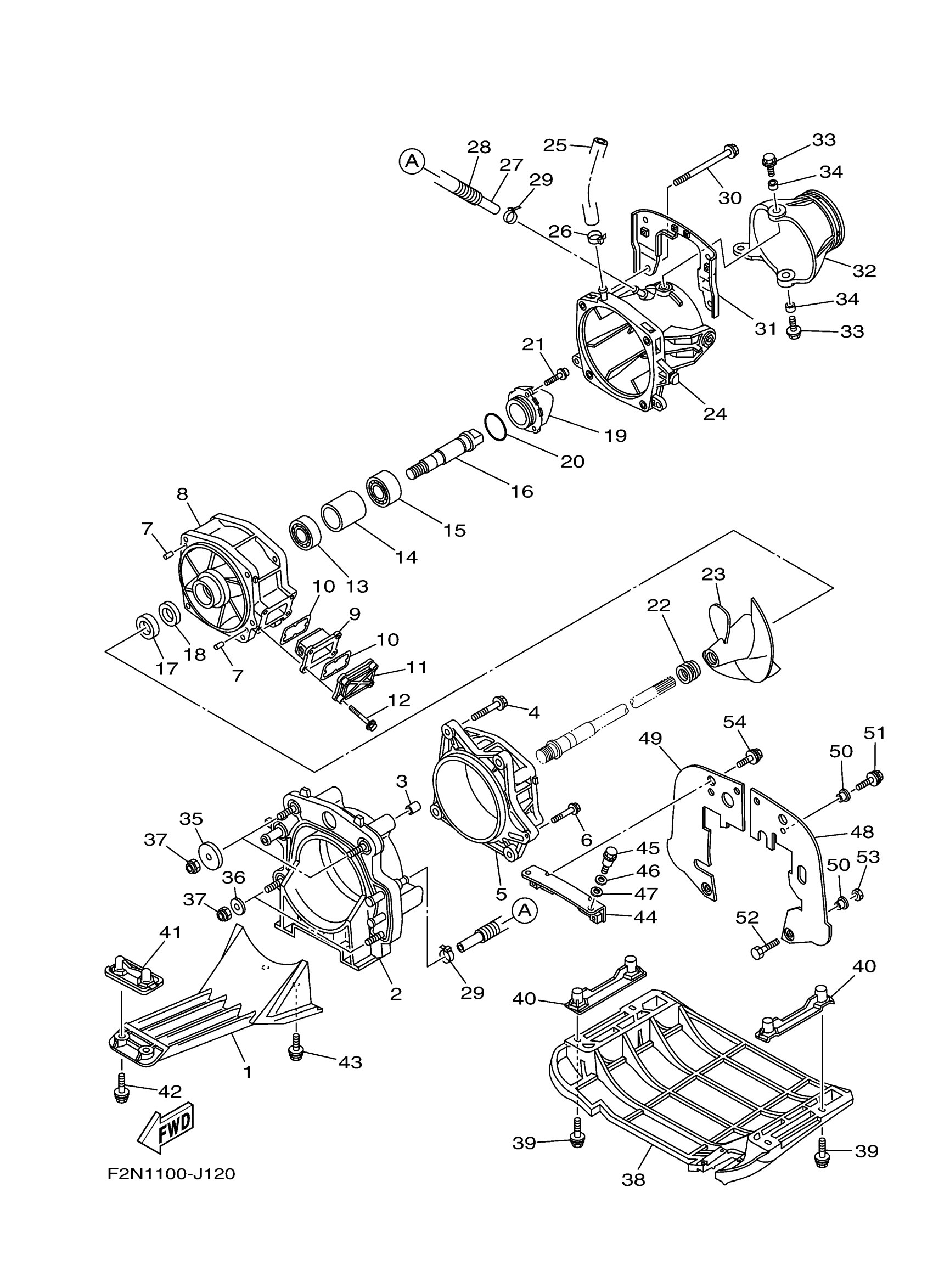

Yamaha VX1100CK (VX SPORT) F2NG 2011 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6D3-R1333-01-00

$81.78

2

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.50

4

BOLT, WITH WASHER

90119-10811-00

$1.43

5

HOUSING, IMPELLER

6CR-R1312-00-00

$131.73

6

BOLT, WITH WASHER

90119-06894-00

$1.43

7

PIN, DOWEL (614)

93606-12019-00

$3.50

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

66V-46882-00-00

$5.59

10

. O-RING

66V-42414-00-00

$5.31

11

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

12

BOLT,WITH WASHER

90119-06898-00

$3.59

13

BEARING

93306-27211-00

$38.37

14

SPACER 1

65V-45538-00-00

$30.39

15

BEARING (6K8)

93306-205U1-00

$19.73

16

SHAFT, DRIVE 4

6D3-45514-00-00

$213.42

17

. OIL SEAL

93101-21001-00

$20.13

18

. OIL SEAL

93101-21002-00

$20.13

19

CAP

6B6-51326-10-00

$38.75

20

. O-RING

93210-464A3-00

$3.03

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

22

CAP, IMPELLER

6D3-R1319-00-00

$2.16

23

IMPELLER

6D3-R1321-03-00

Unavailable

24

NOZZLE

6BU-R1318-01-00

$59.69

25

HOSE (L260)

90445-16006-00

$10.99

26

BAND, HOSE 18

90601-118UF-00

$2.22

27

HOSE (L355)

90445-14008-00

$10.99

28

HOSE (L320)

90446-20MF5-00

$4.78

29

CLAMP

90465-10098-00

$2.24

30

BOLT, WITH WASHER

90119-10807-00

$5.75

31

BRACKET 1

6D3-R1341-00-00

$47.75

32

NOZZLE, DEFLECTOR

6BU-R1313-00-00

$47.75

33

BOLT, WITH WASHER

90119-08841-00

$1.07

34

COLLAR(6R7)

90387-08M06-00

Unavailable

35

WASHER

F1S-U725E-01-00

$8.61

36

WASHER, PLATE

90201-10801-00

$3.65

37

NUT, NYLON

9572R-10300-00

$3.52

38

PLATE 2

F2N-U273B-10-00

$216.40

39

BOLT, WITH WASHER

90119-08829-00

$4.09

40

BRACKET 2

F1G-U8572-02-00

$20.09

41

BRACKET, 3

F1K-U8577-01-00

$24.39

42

BOLT, WITH WASHER

90119-06896-00

$5.23

43

BOLT, WITH WASHER

90119-10809-00

Unavailable

44

BRACKET

F1K-U7557-01-00

$27.60

45

BOLT

90109-08043-00

$4.03

46

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

47

GASKET

90430-12002-00

$1.72

48

PLATE, RUBBER 1

F1K-U757E-01-00

$14.16

49

PLATE, RUBBER 2

F1K-U757F-01-00

$17.94

50

COLLAR

90387-06080-00

$6.88

51

BOLT, WITH WASHER

90119-06880-00

$3.65

52

BOLT

90101-069U0-00

$1.34

53

NUT, NYLON

9572R-06300-00

$2.93

54

BOLT, WITH WASHER

90119-08800-00

$4.31
