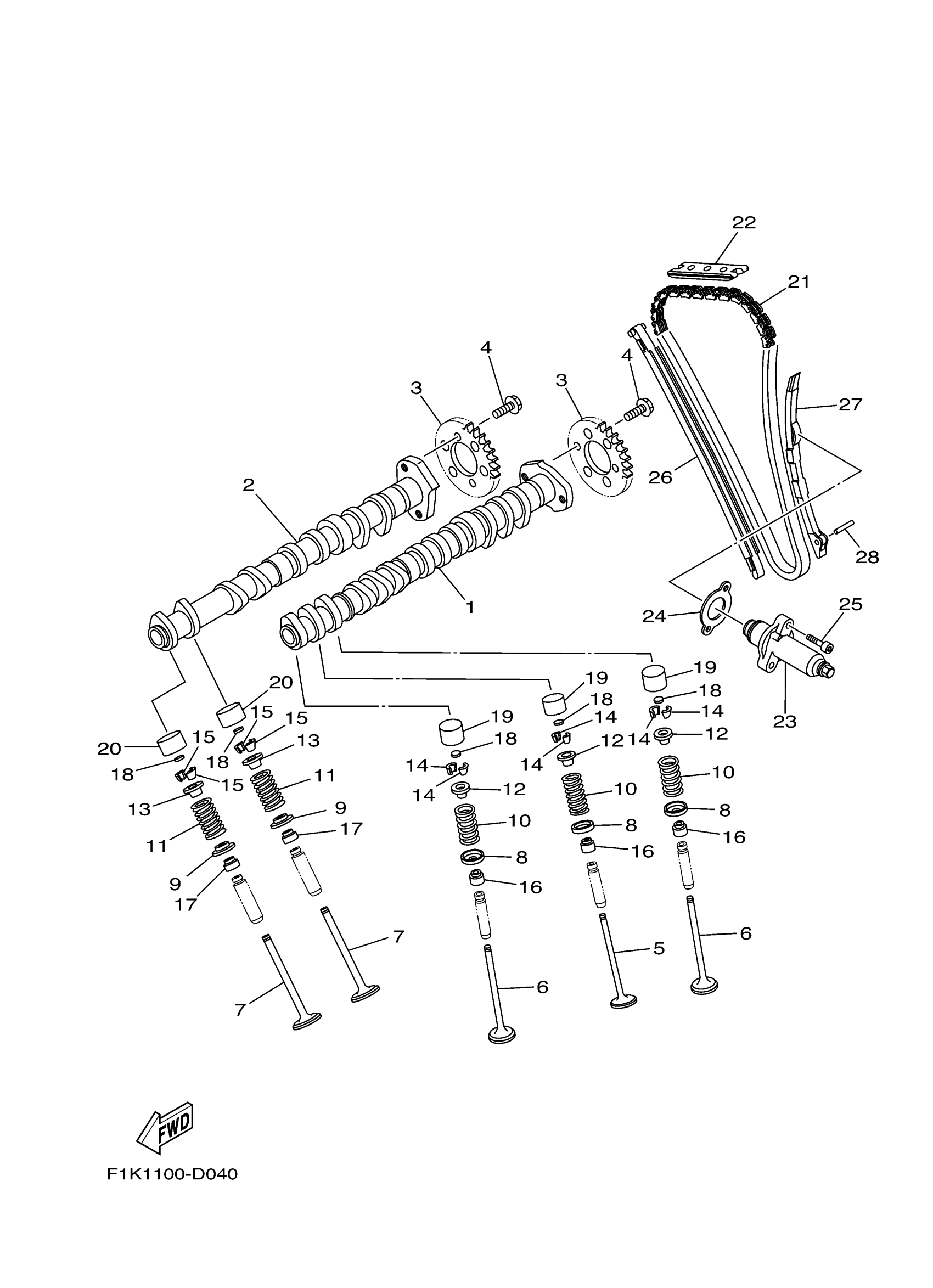

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 VALVE Diagram
#
1
CAMSHAFT 1
6D3-12171-11-00
Unavailable
2
CAMSHAFT 2
6D3-12181-00-00
Unavailable
3
SPROCKET, CAM CHAIN
6D3-12176-00-00
Unavailable
4
BOLT, FLANGE
90105-07004-00
$5.60
5
VALVE, INTAKE
4XV-12111-00-00
$32.99
6
VALVE, INTAKE 2
4XV-12112-00-00
$20.99
7
VALVE, EXHAUST
5LV-12121-00-00
$113.99
8
SEAT, VALVE SPRING
1HX-12116-01-00
$4.52
9
SEAT, VALVE SPRING 2
3GM-12126-00-00
$4.47
10
SPRING, VALVE INNER
4XV-12113-00-00
$7.99
11
SPRING, VALVE OUTER
4XV-12114-00-00
$20.99
12
RETAINER, VALVE SPRING
1HX-12117-00-00
Unavailable
13
RETAINER, VALVE SPRING
1WG-12117-00-00
Unavailable
14
COTTER, VALVE
1HX-12118-00-00
$7.99
15
COTTER, VALVE
1WG-12118-00-00
$8.99
16
SEAL, VALVE STEM
4TV-12119-00-00
Unavailable
17
SEAL, VALVE STEM
4SV-12119-00-00
Unavailable
18
PAD, ADJUSTING 2 (1.20)
1HX-12168-00-00
Unavailable
18
PAD, ADJUSTING 2 (1.25)
1HX-12168-20-00
Unavailable
18
PAD, ADJUSTING 2 (1.30)
1HX-12168-40-00
Unavailable
18
PAD, ADJUSTING 2 (1.35)
1HX-12168-60-00
Unavailable
18
PAD, ADJUSTING 2 (1.40)
1HX-12168-80-00
Unavailable
18
PAD, ADJUSTING 2 (1.45)
1HX-12168-A0-00
Unavailable
18
PAD, ADJUSTING 2 (1.50)
1HX-12168-F0-00
Unavailable
18
PAD, ADJUSTING 2 (1.55)
1HX-12168-H1-00
Unavailable
18
PAD, ADJUSTING 2 (1.60)
1HX-12168-K1-00
Unavailable
18
PAD, ADJUSTING 2 (1.65)
1HX-12168-M1-00
Unavailable
18
PAD, ADJUSTING 2 (1.70)
1HX-12168-R1-00
Unavailable
18
PAD, ADJUSTING 2 (1.75)
1HX-12168-U1-00
Unavailable
18
PAD, ADJUSTING 2 (1.80)
1HX-12168-W1-00
Unavailable
18
PAD, ADJUSTING 2 (1.85)
1HX-12168-Y1-00
Unavailable
18
PAD, ADJUSTING 2 (1.90)
1HX-12169-11-00
Unavailable
18
PAD, ADJUSTING 2 (1.95)
1HX-12169-31-00
Unavailable
18
PAD, ADJUSTING 2 (2.00)
1HX-12169-50-00
Unavailable
18
PAD, ADJUSTING 2 (2.05)
1HX-12169-70-00
Unavailable
18
PAD, ADJUSTING 2 (2.10)
1HX-12169-90-00
Unavailable
18
PAD, ADJUSTING 2 (2.15)
1HX-12169-E0-00
Unavailable
18
PAD, ADJUSTING 2 (2.20)
1HX-12169-G0-00
Unavailable
18
PAD, ADJUSTING 2 (2.25)
1HX-12169-J0-00
Unavailable
18
PAD, ADJUSTING 2 (2.30)
1HX-12169-L0-00
Unavailable
18
PAD, ADJUSTING 2 (2.35)
1HX-12169-N0-00
Unavailable
18
PAD, ADJUSTING 2 (2.40)
1HX-12169-T0-00
Unavailable
19
LIFTER, VALVE
3LN-12153-10-00
Unavailable
20
LIFTER, VALVE
3FV-12153-19-00
Unavailable
21
CHAIN
94591-49130-00
Unavailable
22
GUIDE, STOPPER 2
5BE-12241-01-00
Unavailable
23
TENSIONER ASSY, CAM CHAIN
6D3-12210-01-00
Unavailable
24
GASKET, TENSIONER CASE
4FM-12213-00-00
Unavailable
25
BOLT,SOCKET
91380-06025-00
Unavailable
26
DAMPER, CHAIN 1
6D3-12251-00-00
Unavailable
27
DAMPER, CHAIN 2
4XV-12252-01-00
Unavailable
28
PIN, DOWEL
93607-44002-00
Unavailable
