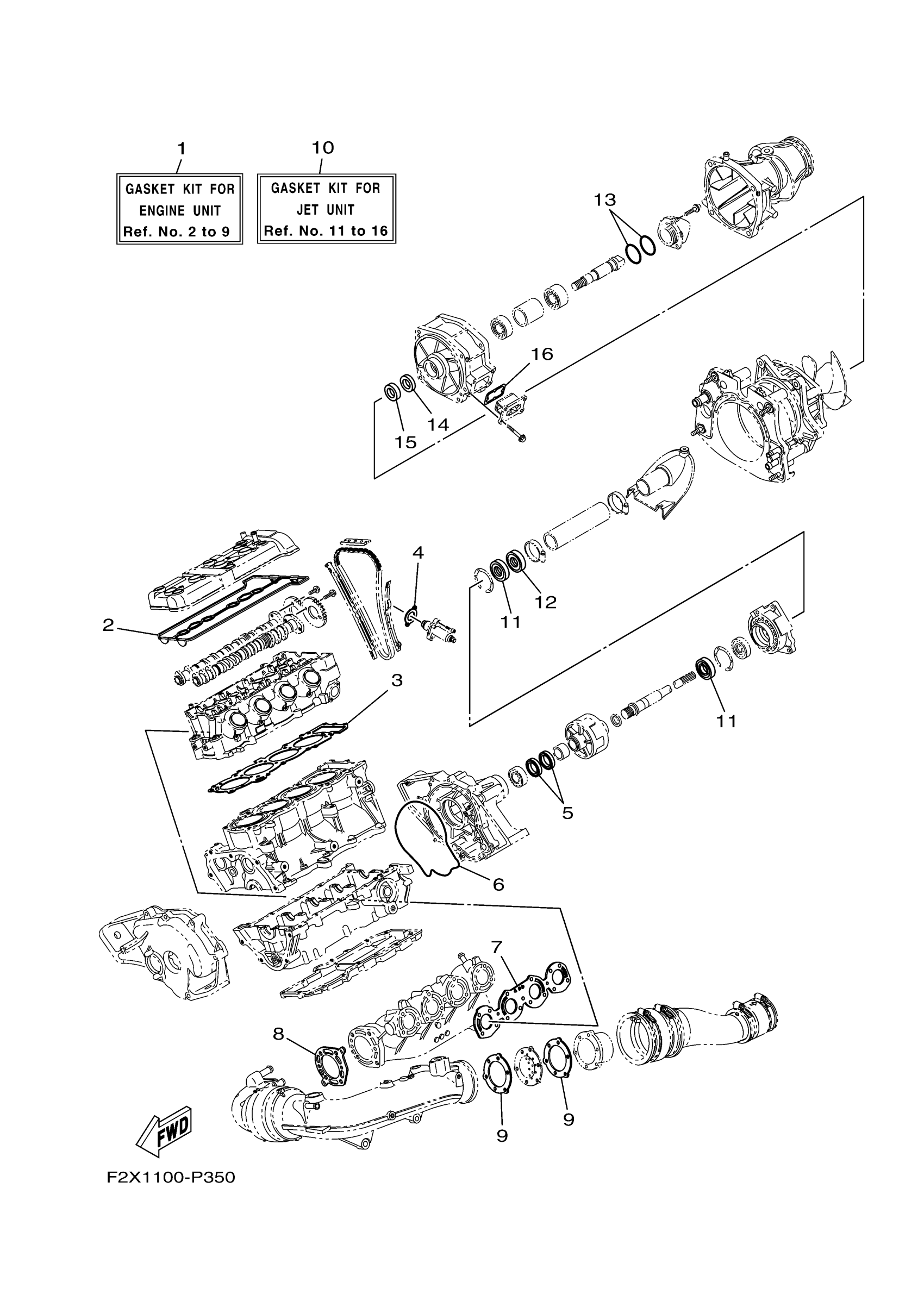

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 REPAIR KIT 1 Diagram

#

Description
Price

1

GASKET KIT FOR ENGINE UNIT

6D3-W0001-01-00

$212.11

2

GASKET, HEAD COVER 1

60E-11193-01-00

$53.70

3

. GASKET, CYLINDER HEAD 1

6D3-11181-00-00

$95.40

4

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

5

OIL SEAL

93101-35004-00

$25.49

6

GASKET

6B6-13475-01-00

$25.27

7

. GASKET, EXHAUST PIPE

6D3-14613-10-00

$32.99

8

. GASKET, MUFFLER DAMPER 1

6D3-14739-10-00

$35.49

9

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

10

GASKET KIT FOR JET UNIT

6EX-W0001-20-00

$93.92

11

OIL SEAL(62T)

93101-25M55-00

$24.36

12

. OIL SEAL

93102-25009-00

$29.63

13

. O-RING

93210-464A3-00

$2.95

14

. OIL SEAL

93101-21002-00

$19.63

15

. OIL SEAL

93101-21001-00

$19.63

16

. O-RING

66V-42414-00-00

$5.18
