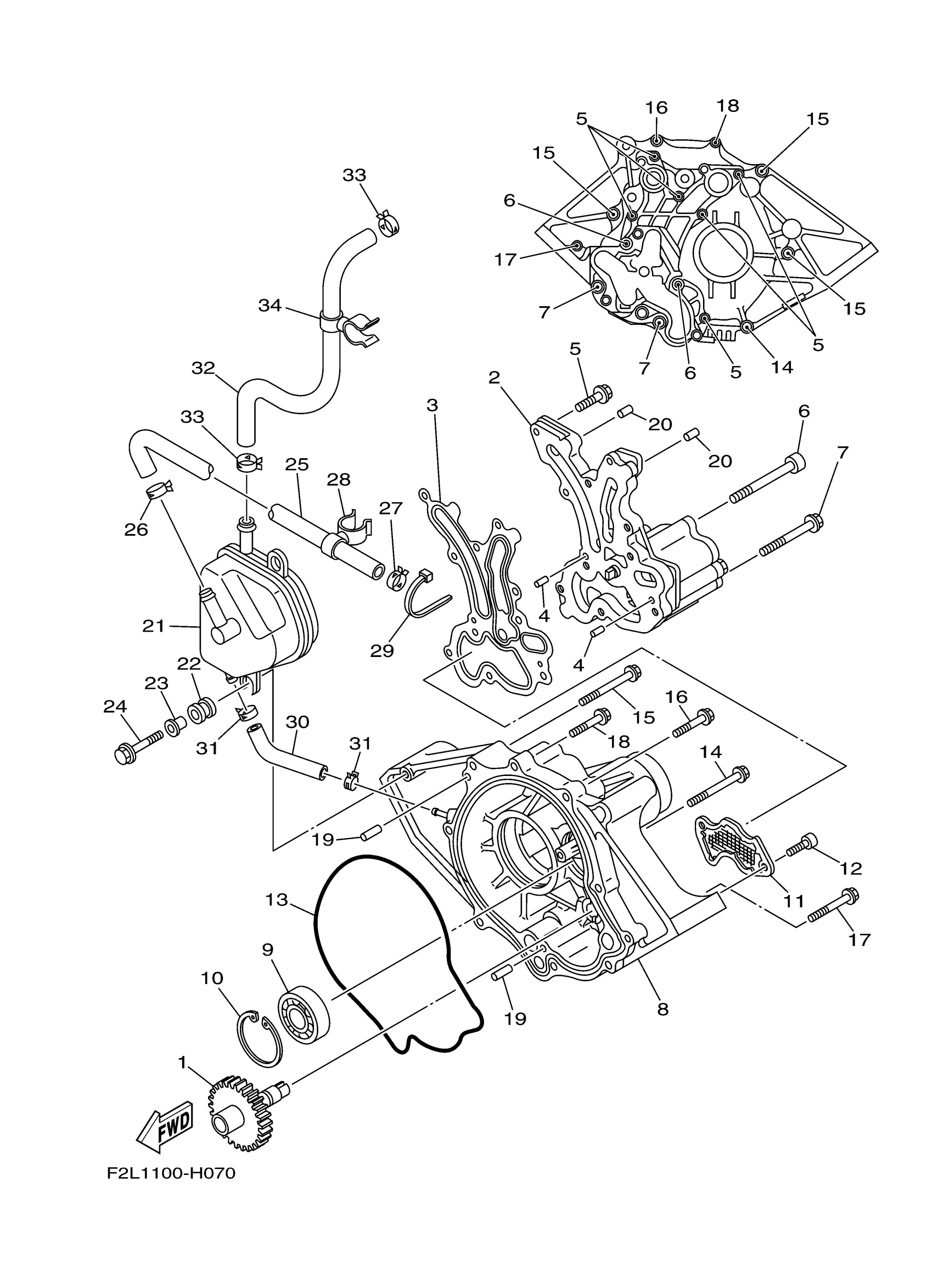

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 OIL PUMP Diagram

#

Description
Price

1

DRIVEN GEAR ASSY

6B6-13360-00-00

$129.40

2

OIL PUMP ASSY

6D3-13300-10-00

$449.99

3

GASKET

6B6-13563-01-00

$30.87

4

PIN, DOWEL

93603-12221-00

$0.86

5

BOLT, WITH WASHER(61B)

97513-06525-00

$1.75

6

BOLT, HEXAGON SOCKET HEAD

90110-08041-00

$6.07

7

BOLT, WITH WASHER

90119-08085-00

$4.85

8

COVER, PUMP GEAR

6B6-13327-02-94

$420.57

9

BEARING

93306-30441-00

$55.71

10

CIRCLIP(26H)

99009-52500-00

$10.02

11

STRAINER, OIL

6B6-13411-00-00

$45.57

12

BOLT,SOCKET

91317-06016-00

$1.11

13

GASKET

6B6-13475-01-00

$24.99

14

BOLT, WITH WASHER

90119-08045-00

$3.97

15

BOLT, WITH WASHER

90119-08034-00

$3.41

16

BOLT, WITH WASHER

90119-08043-00

$4.41

17

BOLT, WITH WASHER

97513-06555-00

$2.80

18

BOLT, WITH WASHER (62X)

97513-06535-00

Unavailable

19

PIN, DOWEL

93608-16M16-00

$2.38

20

PIN, DOWEL

93606-25M00-00

$1.76

21

SEPERATOR, OIL

6D3-11164-00-00

$126.46

22

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

23

. COLLAR

90387-06119-00

$3.96

24

BOLT, WITH WASHER

90119-06294-00

Unavailable

25

PIPE, BREATHER 3

6D3-11126-00-00

$30.87

26

CLIP

90467-170A4-00

$2.13

27

CLIP

90467-170A4-00

$2.13

28

CLAMP

90464-21001-00

$6.18

29

CLAMP

90464-21001-00

$6.18

30

PIPE, BREATHER 4

6D3-11125-00-00

$8.81

31

CLIP

90467-110A1-00

$4.17

32

PIPE, BREATHER 1

6D3-11166-00-00

$28.66

33

CLIP

90467-170A4-00

$2.13

34

CLAMP

90464-21001-00

$6.18
