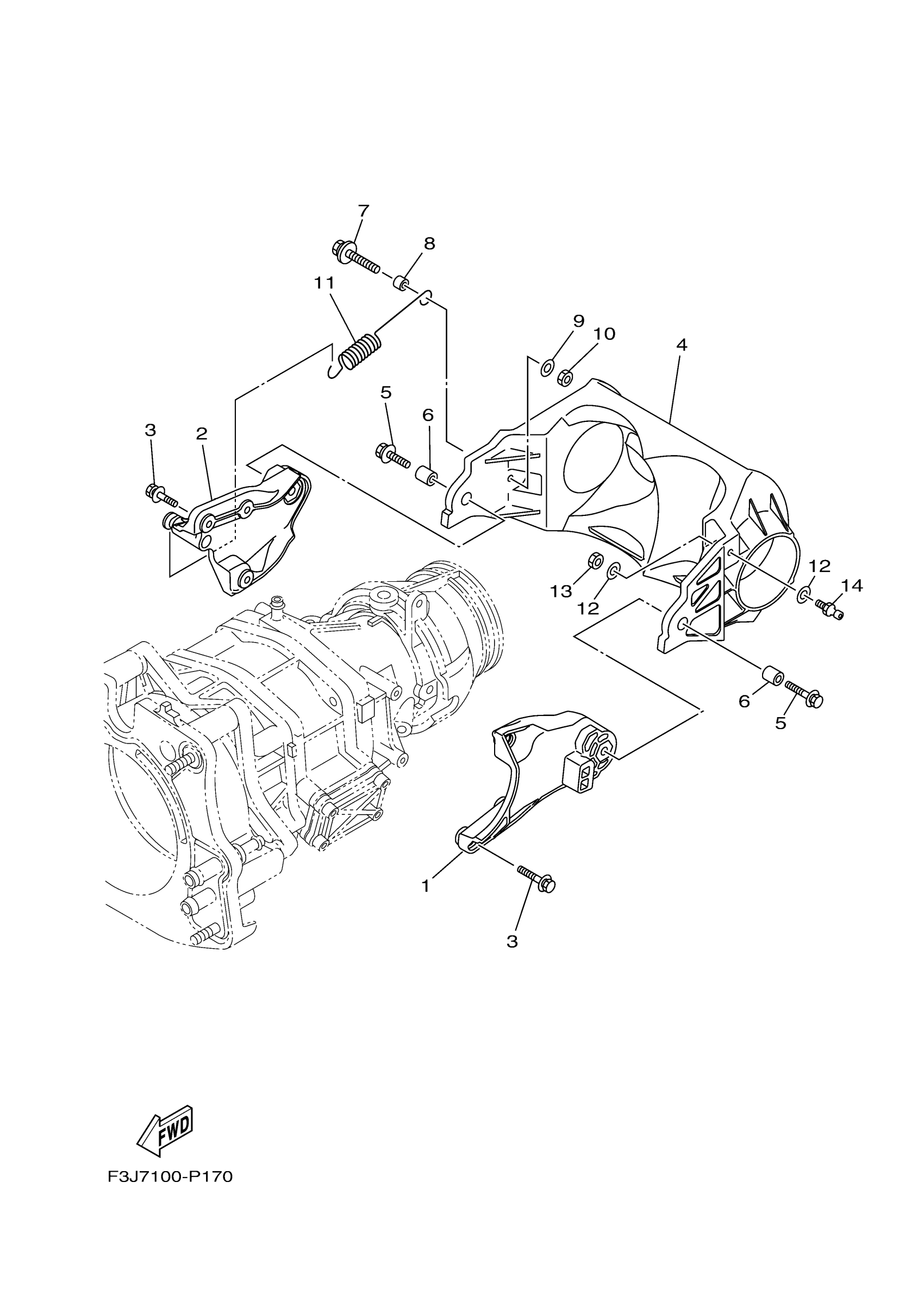

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 JET UNIT 3 Diagram

#

Description

Price

1

BRACKET 1

6ET-R1341-00-00

$19.68

2

BRACKET 2

6ET-R1342-00-00

$19.68

3

BOLT, WITH WASHER

90119-06892-00

$3.79

4

GATE, REVERSE

6ET-R1314-01-00

$196.95

5

BOLT, WITH WASHER

90119-08841-00

$1.01

6

COLLAR

90387-08M30-00

$7.40

7

BOLT, WITH WASHER

90119-069UX-00

$2.66

8

COLLAR(6R8)

90387-06M30-00

Unavailable

9

WASHER, PLATE

90201-06020-00

$5.86

10

NUT

9538R-06600-00

$0.79

11

SPRING, RETAINER

6S5-R2358-00-00

$2.26

12

WASHER, PLATE

90201-06020-00

$5.86

13

NUT

9538R-06600-00

$0.79

14

SHAFT, JOINT BALL

EU0-U1461-10-00

$27.27
