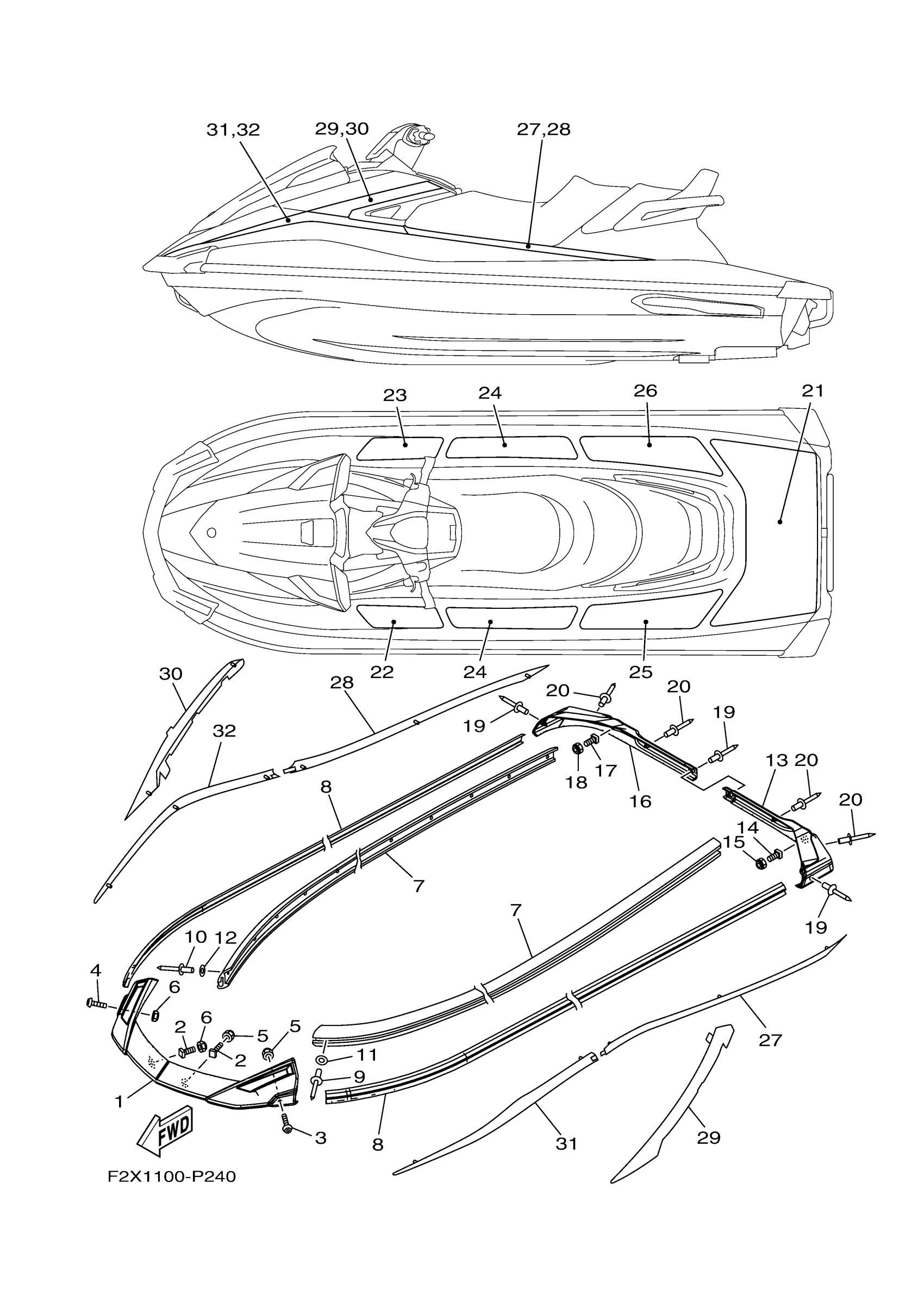

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (DGS1)

F2X-U2511-00-00

$54.82

1

GUNWALE, BOW (YB)

F2X-U2511-10-00

$45.93

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

4

BOLT,HEX. SOCKET BUTTON

90111-06803-00

$2.16

5

NUT, LOCK

F2N-U142L-00-00

$1.00

6

NUT, LOCK

F2N-U142L-00-00

$1.00

7

GUNWALE, SIDE (DGS1)

F2X-U2512-00-00

$30.95

7

GUNWALE, SIDE (YB)

F2X-U2512-10-00

$42.23

8

INNER,GUNWALE (YB)

F2X-U2519-10-00

$15.55

8

INNER,GUNWALE

F2X-U2519-20-00

$25.74

9

RIVET, BLIND

90267-489U8-00

$0.99

10

RIVET, BLIND

90267-489U8-00

$0.99

11

WASHER

9299R-05200-00

$3.16

12

WASHER

9299R-05200-00

$3.16

13

GUNWALE, STERN 1 (DGS1)

F2X-U251D-00-00

$19.26

13

GUNWALE, STERN 1 (YB)

F2X-U251D-10-00

$17.77

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.00

16

GUNWALE, STERN 2 (DGS1)

F2X-U251E-00-00

$23.47

16

GUNWALE, STERN 2 (YB)

F2X-U251E-10-00

$17.77

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.00

19

RIVET, BLIND

90267-48825-00

$1.44

20

RIVET, BLIND

90267-48825-00

$1.44

21

MAT, UPPER

F2X-U3581-01-00

$72.61

21

MAT, UPPER

F2X-U3581-20-00

$77.26

22

MAT, STEP 1

F2X-U351H-00-00

$18.66

22

MAT, STEP 1

F2X-U351H-20-00

$21.95

23

MAT, STEP 2

F2X-U351J-00-00

$19.26

23

MAT, STEP 2

F2X-U351J-20-00

$21.95

24

MAT, STEP 3

F2X-U351K-00-00

$16.50

24

MAT, STEP 3

F2X-U351K-20-00

$19.68

25

MAT, STEP 4

F2X-U351M-00-00

$24.39

25

MAT, STEP 4

F2X-U351M-20-00

$27.26

26

MAT, STEP 5

F2X-U351N-00-00

$24.39

26

MAT, STEP 5

F2X-U351N-20-00

$27.26

27

ORNAMENT, STERN LH (YB)

F2X-U89A8-00-00

$98.45

27

ORNAMENT, STERN LH (DGS1)

F2X-U89A8-10-00

$29.53

28

ORNAMENT, STERN RH (YB)

F2X-U89A9-00-00

$26.67

28

ORNAMENT, STERN RH (DGS1)

F2X-U89A9-10-00

$225.74

29

ORNAMENT, MIDDLE LH (YB)

F2X-U89AA-00-00

$11.85

29

ORNAMENT, MIDDLE LH (DGS1)

F2X-U89AA-10-00

$13.62

30

ORNAMENT, MIDDLE RH (YB)

F2X-U89AB-00-00

$11.85

30

ORNAMENT, MIDDLE RH (DGS1)

F2X-U89AB-10-00

$145.44

31

ORNAMENT, BOW LH (YB)

F2X-U89AC-00-00

$25.74

31

ORNAMENT, BOW LH (DGS1)

F2X-U89AC-10-00

$124.23

32

ORNAMENT, BOW RH (YB)

F2X-U89AD-00-00

$57.19

32

ORNAMENT, BOW RH (DGS1)

F2X-U89AD-10-00

$27.26
