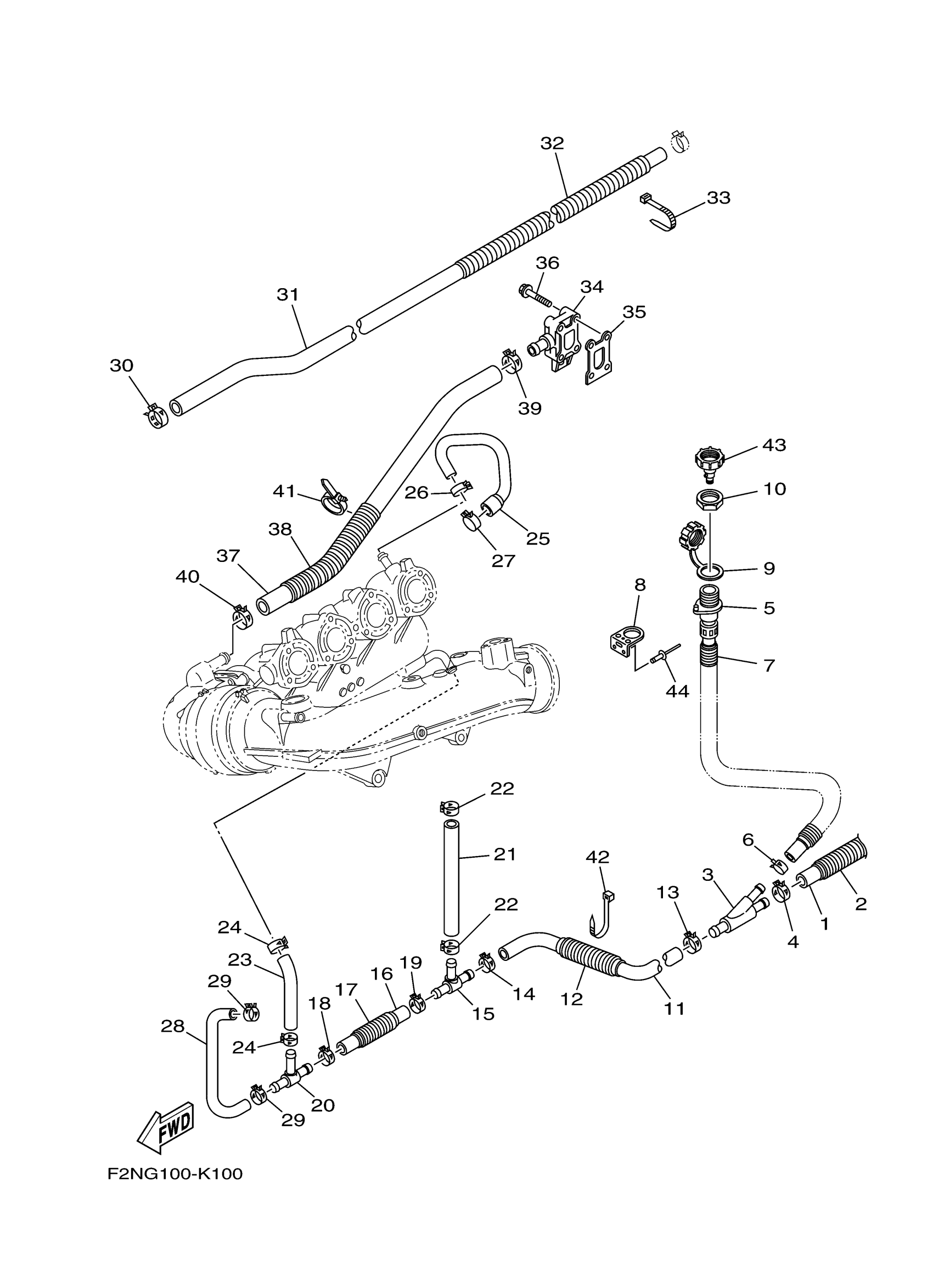

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L300)

90445-21805-00

Unavailable

2

HOSE, WITH SPRING (L200)

90447-22004-00

$5.00

3

JOINT, HOSE 1

60E-12581-00-00

$15.49

4

CLIP

90467-200A3-00

$5.92

5

JOINT ASSY

63M-12580-00-00

$99.98

6

CLIP

90467-150A5-00

$2.64

7

TUBE (L485)

90447-19801-00

$3.56

8

STAY

60E-12443-00-00

$2.95

9

CAP,1

682-84385-01-00

$9.08

10

NUT

EU0-61652-00-00

$11.48

11

HOSE 1

6BU-1243A-00-00

$78.49

12

HOSE, WITH SPRING (L300)

90447-22003-00

$4.55

13

CLIP

90467-200A3-00

$5.92

14

CLIP

90467-200A3-00

$5.92

15

JOINT, HOSE 3

60E-12584-00-00

$6.36

16

HOSE 6

6S5-12589-01-00

Unavailable

17

HOSE, WITH SPRING (L100)

90447-22001-00

$6.21

18

CLIP

90467-200A3-00

$5.92

19

CLIP

90467-200A3-00

$5.92

20

JOINT, HOSE 3

6D3-12584-00-00

$6.82

21

HOSE 5

6D3-1244H-10-00

$15.89

22

CLIP

90467-160A0-00

$2.95

23

HOSE (L108)

90445-18M03-00

Unavailable

24

CLIP

90467-160A0-00

$2.95

25

HOSE 2

6D3-12577-10-00

$43.92

26

CLIP

90467-170A4-00

$2.04

27

CLIP

90467-200A3-00

$5.92

28

HOSE, 4

6D3-1244G-10-00

$36.99

29

CLIP

90467-160A0-00

$2.95

30

CLIP

90467-210A0-00

$5.45

31

HOSE (L1165)

90445-22007-00

$22.49

32

TUBE

F2T-U773D-10-00

$5.68

33

CLAMP(3XW)

90464-35132-00

Unavailable

34

JOINT

6D3-12446-00-00

$39.38

35

GASKET

60E-12435-00-00

$3.64

36

BOLT, FLANGE

90105-06035-00

$2.27

37

HOSE,3

6BU-1243F-10-00

$14.38

38

HOSE, WITH SPRING (L200)

90447-22005-00

$8.32

39

CLIP

90467-200A3-00

$5.92

40

CLIP

90467-200A3-00

$5.92

41

CLAMP

90464-20005-00

$2.11

42

CLAMP(3XW)

90464-35132-00

Unavailable

43

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

44

RIVET (EU0)

90267-48938-00

$5.00
