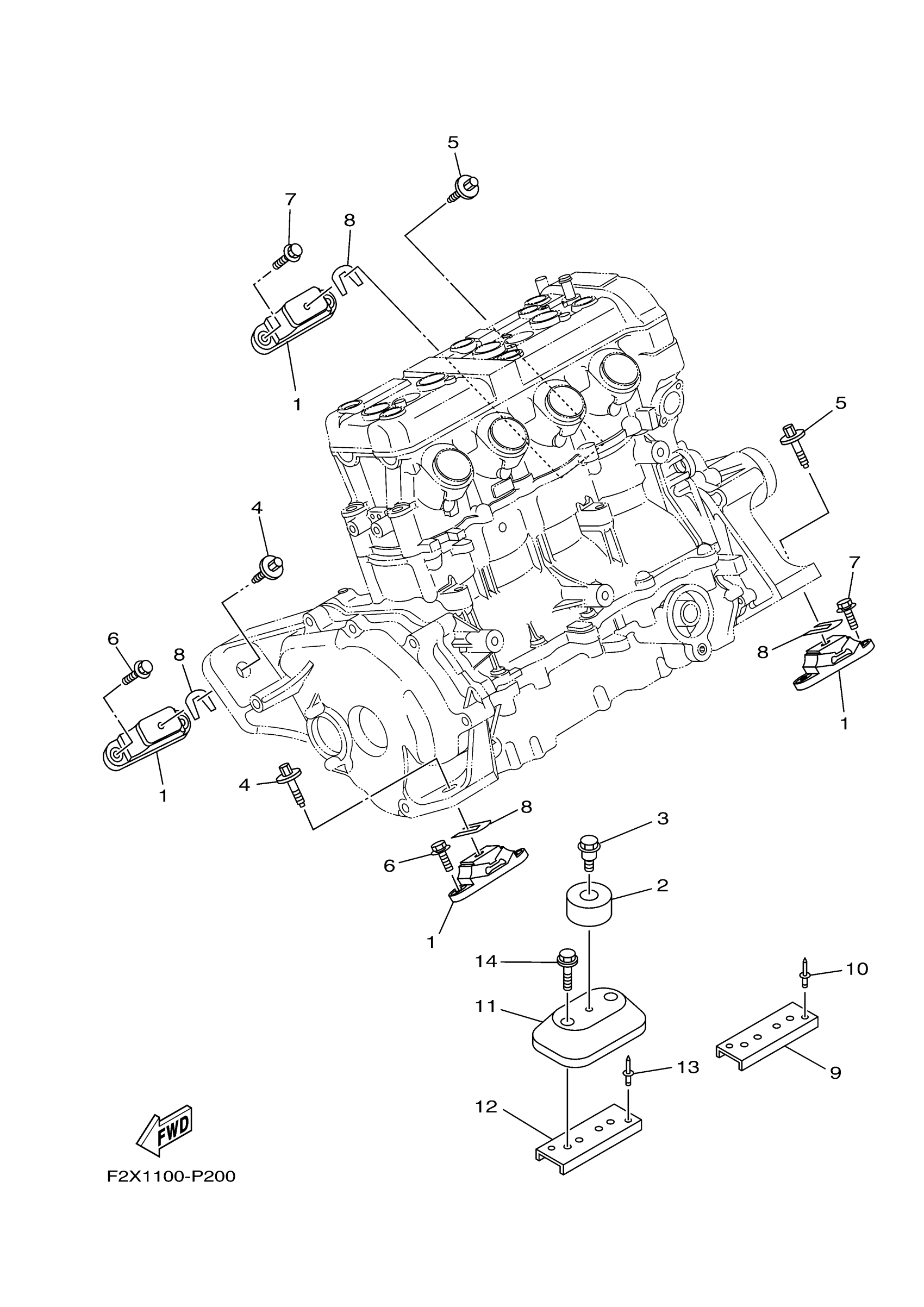

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 ENGINE MOUNT Diagram

#

Description

Price

1

MOUNT RUBBER

67X-44517-10-00

Unavailable

2

STOPPER, LOWER MOUNT RUBBER

6D3-44574-00-00

Unavailable

3

BOLT

90109-06M92-00

$7.49

4

BOLT, WITH WASHER

90119-08860-00

Unavailable

5

BOLT, WITH WASHER

90119-08860-00

Unavailable

6

BOLT, WITH WASHER

90119-08829-00

Unavailable

7

BOLT, WITH WASHER

90119-08829-00

Unavailable

8

SHIM (T=0.1)

EU0-67354-A0-00

Unavailable

8

SHIM (T=0.3)

EU0-67354-B0-00

Unavailable

8

SHIM (T=0.5)

EU0-67354-C0-00

Unavailable

8

SHIM (T=1.0)

EU0-67354-D0-00

Unavailable

8

SHIM (T=2.0)

EU0-67354-E0-00

Unavailable

9

PLATE

F2S-U732B-00-00

Unavailable

10

RIVET, BLIND

90267-489U2-00

Unavailable

11

SPACER,ENGINE MOUNT

F2N-U721B-00-00

Unavailable

12

PLATE

F2N-U732B-10-00

Unavailable

13

RIVET, BLIND

90267-489U2-00

Unavailable

14

BOLT, WITH WASHER

90119-06892-00

Unavailable
