CRANKSHAFT & PISTON

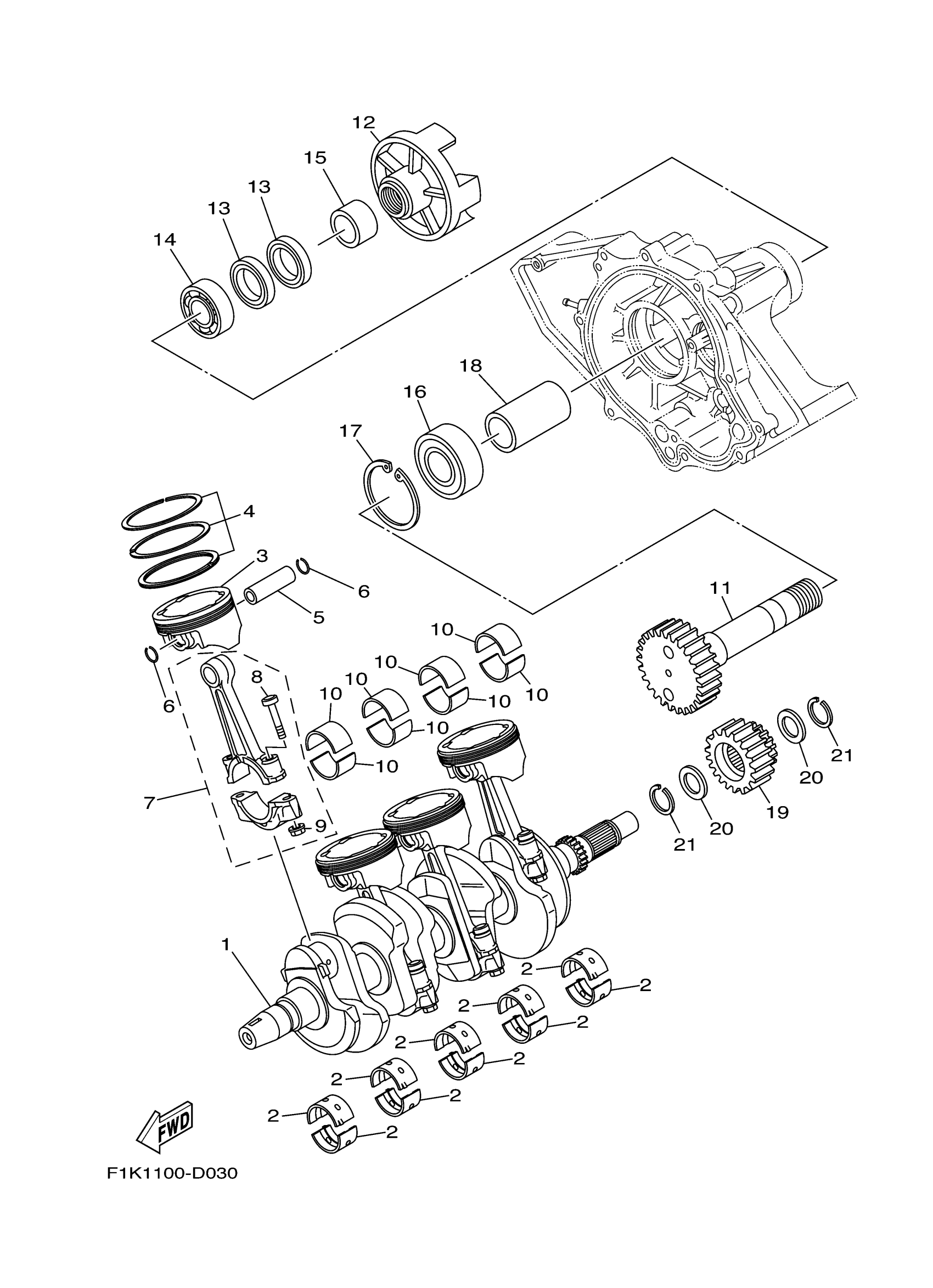

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 CRANKSHAFT & PISTON Diagram
#
1
CRANKSHAFT
60E-11411-11-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6D3-11416-00-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6D3-11416-10-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6D3-11416-20-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6D3-11416-30-00
Unavailable
2
PLANE BEARING, CRANKSHAFT 1
6D3-11416-A0-00
Unavailable
3
PISTON (STD)
6D3-11631-01-B0
Unavailable
4
PISTON RING SET (STD)
6D3-11603-01-00
Unavailable
5
PIN, PISTON
6D3-11633-00-00
Unavailable
6
CLIP (1J7)
90468-12069-00
$9.49
7
CONNECTING ROD ASSY
6D3-11650-00-00
Unavailable
8
BOLT, CONNECTING ROD
5JW-11654-00-00
$5.49
9
NUT (11H)
90179-08327-00
$9.49
10
PLANE BEARING, CONNECTING ROD
60E-11656-00-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
60E-11656-10-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
60E-11656-20-00
Unavailable
10
PLANE BEARING, CONNECTING ROD
60E-11656-30-00
Unavailable
11
SHAFT, TRANSFER
6D3-17572-00-00
Unavailable
12
FLANGE, COUPLING
6D3-45813-00-94
Unavailable
13
OIL SEAL
93101-35004-00
Unavailable
14
BEARING(55X)
93306-07801-00
Unavailable
15
COLLAR
6B6-11478-00-00
Unavailable
16
BRG. R-B 6306 72MM 352.5GK
93306-30610-00
Unavailable
17
CIRCLIP (70R)
93420-72065-00
Unavailable
18
COLLAR, GEAR
6B6-17585-00-00
Unavailable
19
GEAR, TRANSFER DRIVE
6B6-17586-00-00
Unavailable
20
WASHER
90209-25008-00
Unavailable
21
CIRCLIP (2H7)
93440-28062-00
Unavailable
