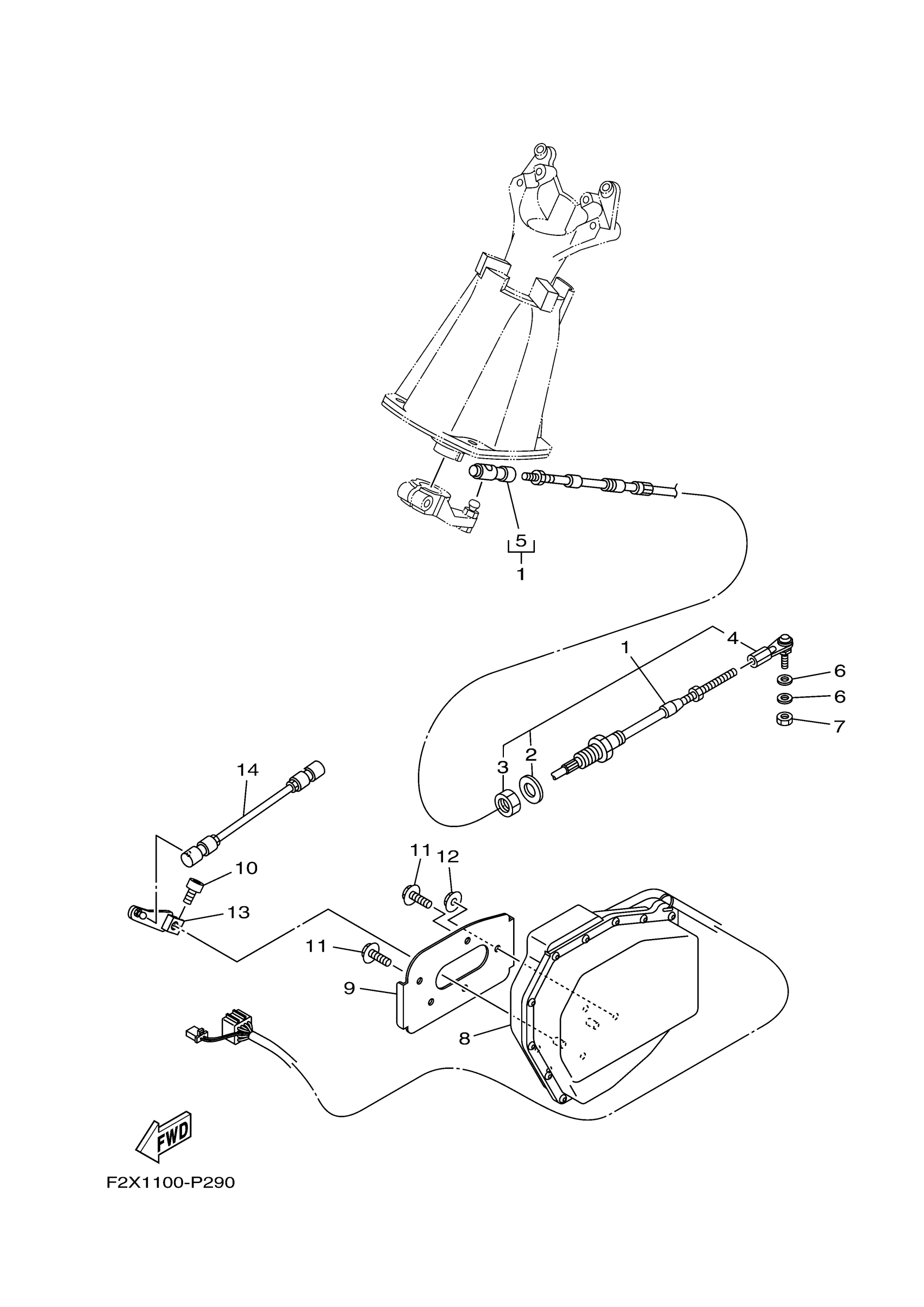

Yamaha VX1100BP (VX CRUISER_VX1100BP VX DELUXE) F2X4 2015 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F2N-61481-02-00

Unavailable

2

. PACKING C

F1B-61438-00-00

$2.72

3

NUT

F1B-6151S-01-00

$14.31

4

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

5

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.01

8

MOTOR ASSY.

F2X-6140B-05-00

Unavailable

9

PLATE

F3Y-U8285-00-00

$15.14

10

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

11

BOLT, WITH WASHER

90119-08852-00

$3.79

12

NUT, NYLON (6J8)

95780-08300-00

$10.55

13

SHIFT ARM ASSY

F3J-6150F-00-00

$68.17

14

ROD ASSY 2

F3J-6150D-00-00

$38.52
