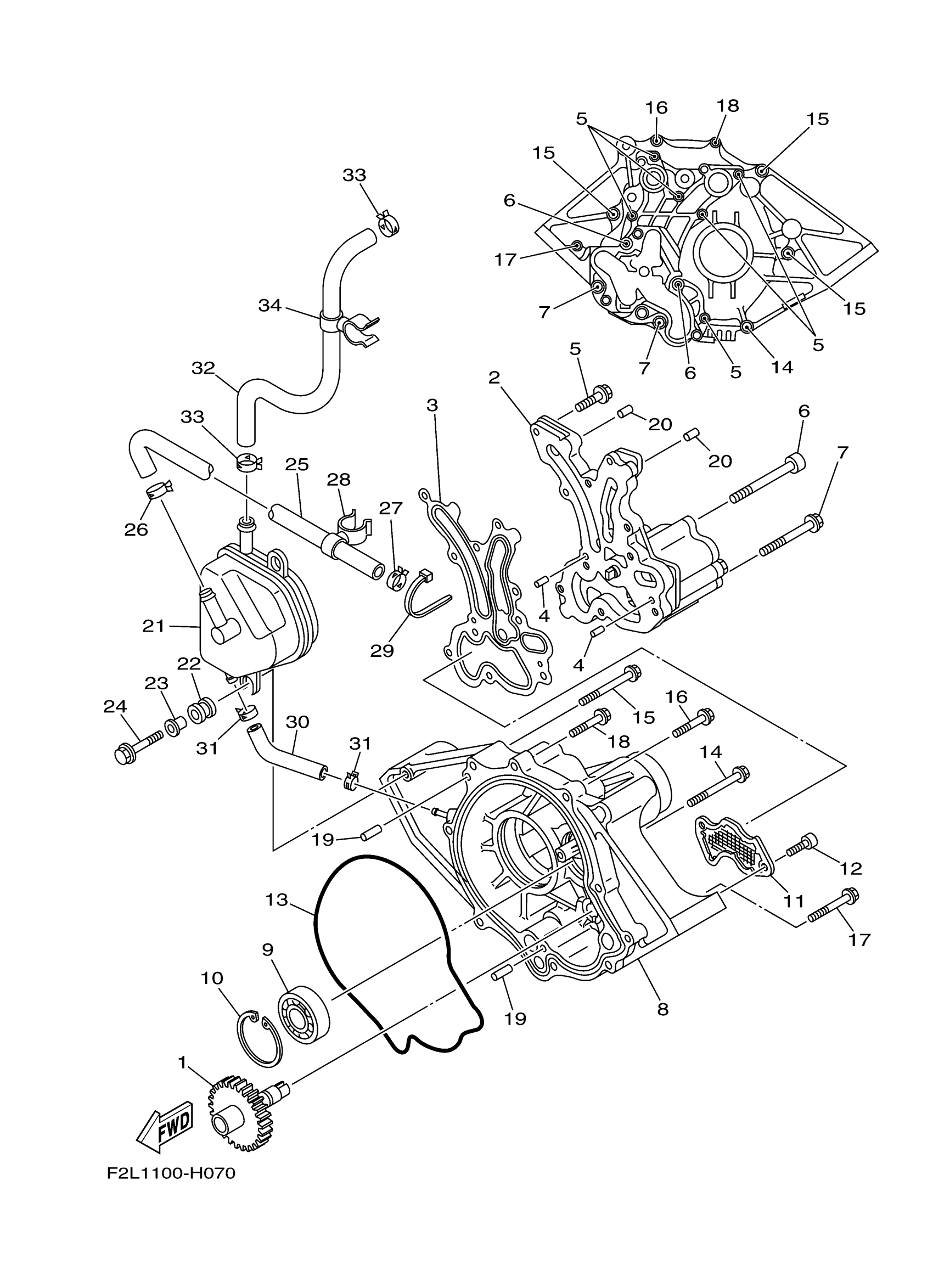

Yamaha VX1100BN (VX CRUISER_VX1100BN VX DELUXE) F2PD 2014 OIL PUMP Diagram

#

Description
Price

1

DRIVEN GEAR ASSY

6B6-13360-00-00

$133.32

2

OIL PUMP ASSY

6D3-13300-10-00

$463.62

3

GASKET

6B6-13563-01-00

$30.99

4

PIN, DOWEL

93603-12221-00

$0.91

5

BOLT, WITH WASHER(61B)

97513-06525-00

$1.75

6

BOLT, HEXAGON SOCKET HEAD

90110-08041-00

$5.80

7

BOLT, WITH WASHER

90119-08085-00

$5.00

8

COVER, PUMP GEAR

6B6-13327-02-94

$433.32

9

BEARING

93306-30441-00

$57.39

10

CIRCLIP(26H)

99009-52500-00

$10.02

11

STRAINER, OIL

6B6-13411-00-00

$46.95

12

BOLT,SOCKET

91317-06016-00

$1.15

13

GASKET

6B6-13475-01-00

$25.27

14

BOLT, WITH WASHER

90119-08045-00

$4.09

15

BOLT, WITH WASHER

90119-08034-00

$3.33

16

BOLT, WITH WASHER

90119-08043-00

$4.55

17

BOLT, WITH WASHER

97513-06555-00

$2.80

18

BOLT, WITH WASHER (62X)

97513-06535-00

Unavailable

19

PIN, DOWEL

93608-16M16-00

$2.41

20

PIN, DOWEL

93606-25M00-00

$1.82

21

SEPERATOR, OIL

6D3-11164-00-00

$130.29

22

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

23

. COLLAR

90387-06119-00

$4.37

24

BOLT, WITH WASHER

90119-06294-00

Unavailable

25

PIPE, BREATHER 3

6D3-11126-00-00

$30.99

26

CLIP

90467-170A4-00

$2.04

27

CLIP

90467-170A4-00

$2.04

28

CLAMP

90464-21001-00

$2.16

29

CLAMP

90464-18006-00

$10.99

30

PIPE, BREATHER 4

6D3-11125-00-00

$9.08

31

CLIP

90467-110A1-00

$4.07

32

PIPE, BREATHER 1

6D3-11166-00-00

$29.49

33

CLIP

90467-170A4-00

$2.04

34

CLAMP

90464-21001-00

$2.16
