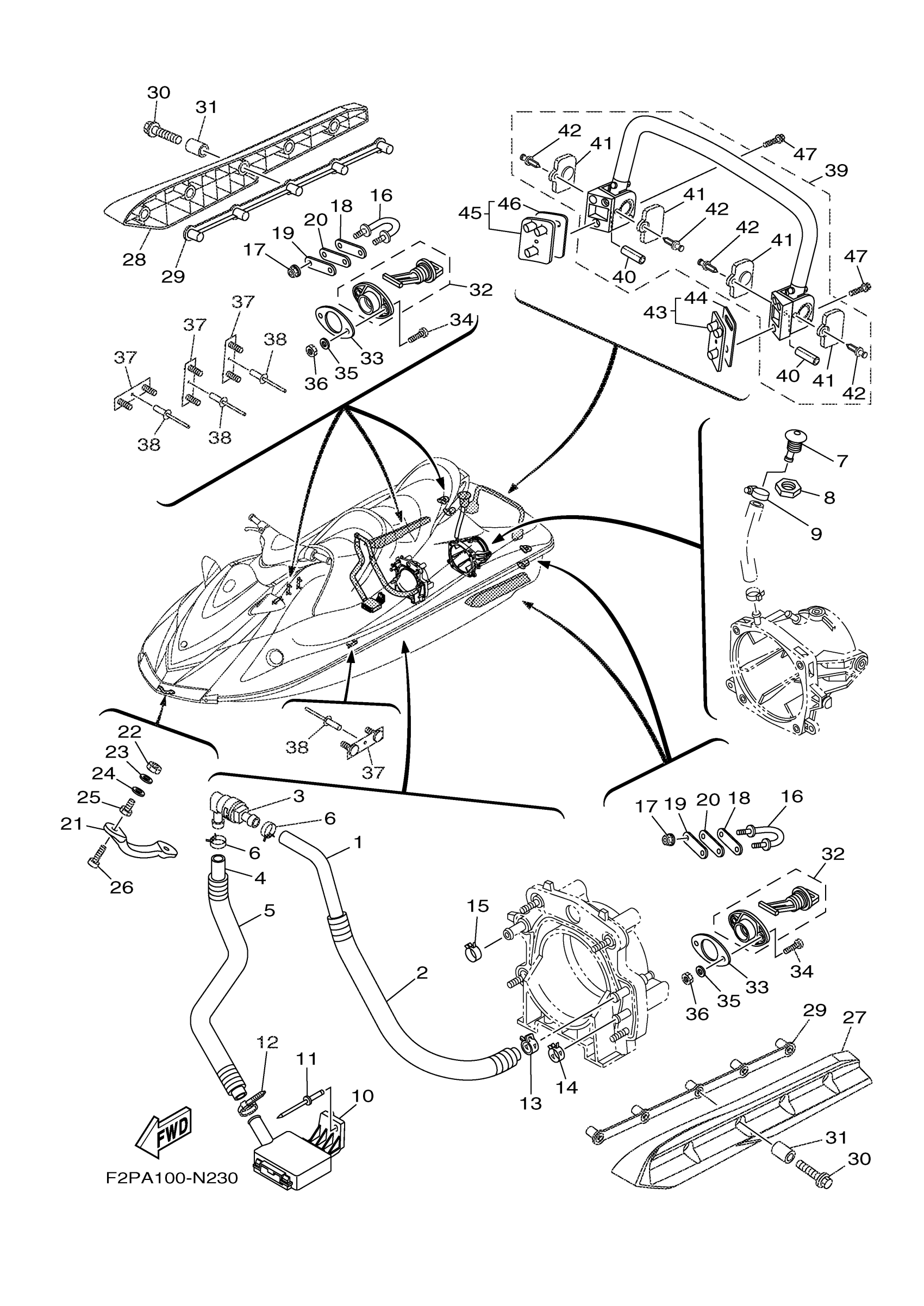

Yamaha VX1100BN (VX CRUISER_VX1100BN VX DELUXE) F2PD 2014 HULL & DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.86

2

HOSE

90446-27M73-00

$18.83

3

JOINT, HOSE

68N-5112T-00-00

$48.96

4

HOSE (L500)

90445-20800-00

$12.86

5

HOSE(63M)

90446-27M55-00

$14.36

6

CLIP

90467-18804-00

$2.72

7

SPOUT

F1W-U269B-00-00

$1.80

8

NUT

EU0-61652-00-00

$11.48

9

BAND, HOSE 18

90601-118UF-00

$2.07

10

STRAINER, BILGE

F1B-U761D-02-00

$5.15

11

RIVET, BLIND

90267-489U8-00

$0.99

12

CLAMP

90465-10098-00

$1.68

13

CLIP

90467-21800-00

$2.87

14

CLIP

90467-200A0-00

$7.40

15

CLIP

90467-210A0-00

$5.45

16

STERN EYE

F2N-U1628-02-00

$4.96

17

NUT, NYLON (6J8)

95780-08300-00

$10.55

18

PLATE A

GP7-U4953-10-00

$3.52

19

PLATE A

F2C-U4953-10-00

$5.61

20

PACKING

F1B-U1653-03-00

Unavailable

21

BOW EYE 1

F1K-61624-00-00

$42.60

22

NUT.HEX.(COARS)

99780-12600-00

$2.80

23

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

24

WASHER

F0X-61637-00-00

$1.29

25

NUT

F0X-61652-01-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.18

27

STABILIZER LH

F2N-U883N-00-00

$113.62

28

STABILIZER RH

F2N-U883P-00-00

$112.11

29

BRACKET,STABILIZER

F1X-U883T-02-00

$43.92

30

BOLT,WASHER BASED

90105-088F9-00

$2.91

31

SPACER

F2N-U8169-10-00

$1.15

32

DRAIN PLUG ASSY

F1S-U2280-02-00

$12.20

33

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

34

SCREW, PAN HEAD

9788R-05025-00

$2.52

35

WASHER

9299R-05200-00

$3.16

36

NUT, FLANGE

9572R-05300-00

$1.43

37

BRACKET

F1K-U826C-03-00

$12.86

38

RIVET (EU0)

90267-48938-00

$5.00

39

LADDER, STEP ASSY

F2N-U278A-01-00

$256.05

40

. SLEEVE 1

F1W-U771H-00-00

$22.97

41

. INNER, COVER SIDE 1

F2C-U377H-00-00

$3.29

42

. PIN

F2C-U1314-00-00

$2.44

43

BRACKET, LADDER LH

F2L-U278F-01-00

$33.32

44

. PACKING, BRKT 1

F2L-U278H-00-00

$6.29

45

BRACKET, LADDER RH

F2L-U278G-01-00

$33.32

46

. PACKING, BRKT 1

F2L-U278H-00-00

$6.29

47

BOLT, WITH WASHER

90119-08844-00

$1.29
