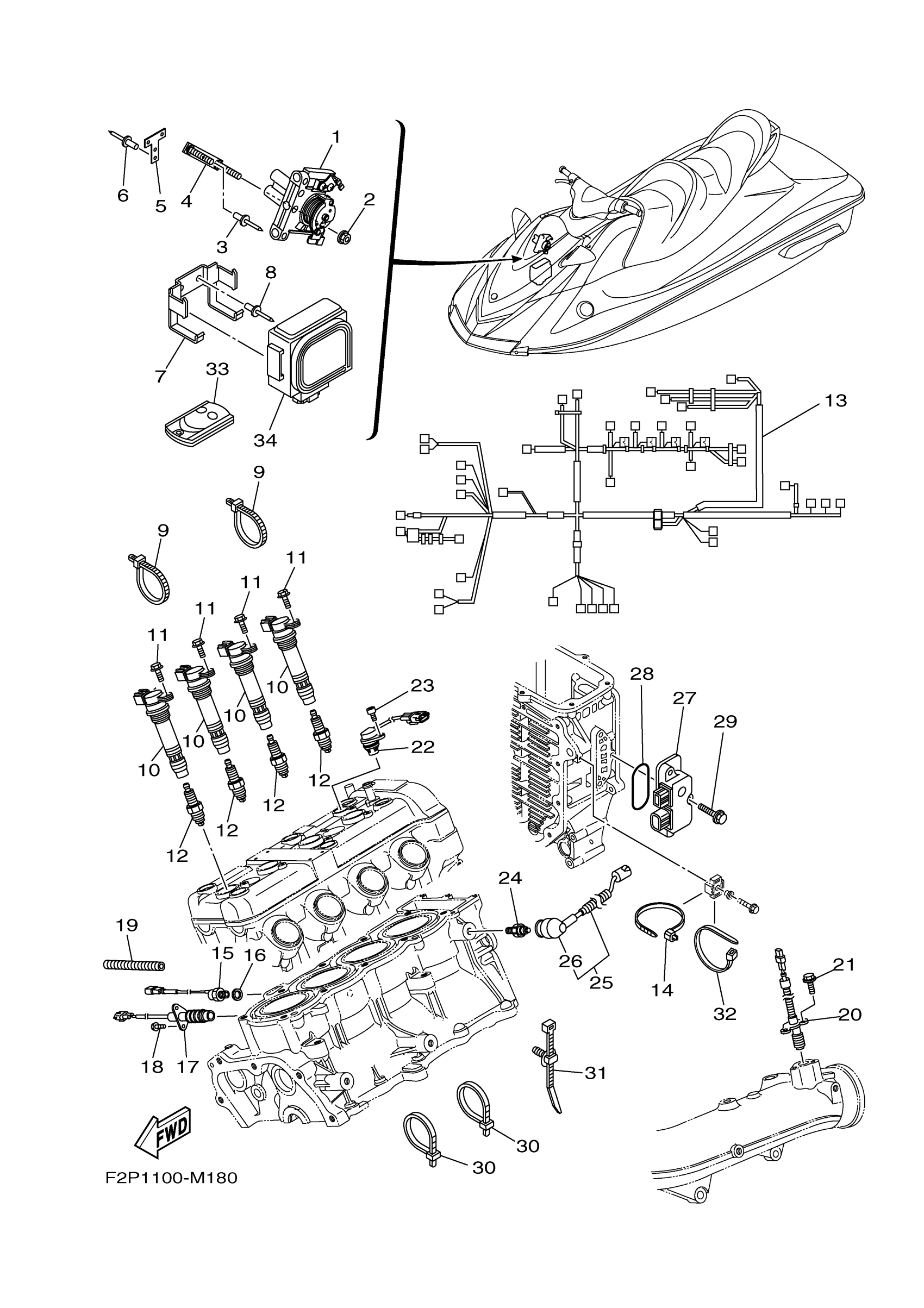

Yamaha VX1100BN (VX CRUISER_VX1100BN VX DELUXE) F2PD 2014 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

Unavailable

2

NUT, NYLON (6J8)

95780-08300-00

Unavailable

3

RIVET (EU0)

90267-48938-00

Unavailable

4

BRACKET, THROTTLE

F2N-U7254-00-00

Unavailable

5

PLATE

F2P-U8376-00-00

Unavailable

6

RIVET (EU0)

90267-48938-00

Unavailable

7

BRACKET

F1W-U826C-00-00

Unavailable

8

RIVET, BLIND(EU0,USA)

90267-489U9-00

$5.60

9

CLAMP(3XW)

90464-35132-00

$9.49

10

IGNITION COIL ASSY

6D3-82310-01-00

Unavailable

11

BOLT, FLANGE(JL8)

95880-06016-00

$4.55

12

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

13

WIRE HARNESS ASSY 1

6BU-8259L-C0-00

Unavailable

14

BAND, SWITCH CORD

437-83936-11-00

$4.63

15

THERMOSENSOR ASSY

61A-85790-01-00

Unavailable

16

WASHER, PLATE

92990-10600-00

Unavailable

17

THERMO SWITCH ASSY

60E-82560-A1-00

Unavailable

18

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

19

TUBE

EU0-67731-00-00

Unavailable

20

THERMO SWITCH ASSY

6D3-82560-01-00

Unavailable

21

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

Unavailable

22

SENSOR, CAM POSITION

6D3-85896-01-00

Unavailable

23

BOLT,SOCKET

91380-06016-00

Unavailable

24

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

Unavailable

25

LEAD WIRE ASSY

60E-81315-01-00

Unavailable

26

CAP

60E-82532-01-00

Unavailable

27

EARTH PLATE COMP.

6D3-8273J-02-00

Unavailable

28

O-RING

93210-60ME8-00

Unavailable

29

BOLT, WITH WASHER

90119-06048-00

Unavailable

30

CLAMP

90465-13M18-00

Unavailable

31

CLAMP

90464-45002-00

Unavailable

32

BAND

1UA-82591-00-00

Unavailable

33

XMTR. COMP.

6B6-86261-00-00

Unavailable

34

RECEIVER COMPLETE

6B6-86265-00-00

Unavailable
