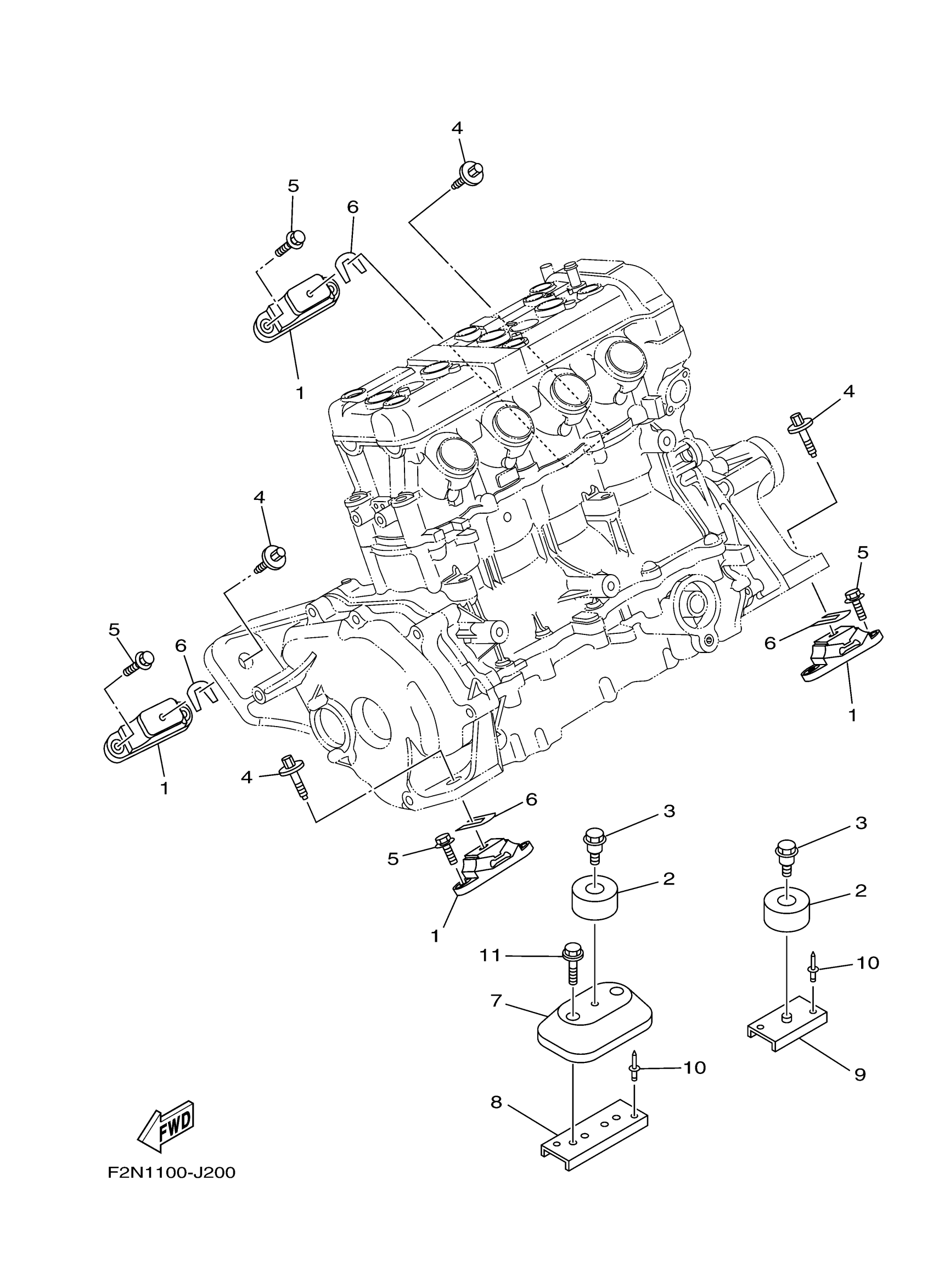

Yamaha VX1100BM (VX CRUISER_VX1100BM VX DELUXE) F2P4 2013 ENGINE MOUNT Diagram

#

Description
Price

1

MOUNT RUBBER

67X-44517-10-00

$101.50

2

STOPPER, LOWER MOUNT RUBBER

6D3-44574-00-00

$21.95

3

BOLT

90109-06M92-00

$5.03

4

BOLT, WITH WASHER

90119-08860-00

$3.88

5

BOLT, WITH WASHER

90119-08829-00

$3.88

6

SHIM (T=0.1)

EU0-67354-A0-00

$4.51

6

SHIM (T=0.3)

EU0-67354-B0-00

$5.45

6

SHIM (T=0.5)

EU0-67354-C0-00

$4.55

6

SHIM (T=1.0)

EU0-67354-D0-00

$4.09

6

SHIM (T=2.0)

EU0-67354-E0-00

$4.09

7

SPACER,ENGINE MOUNT

F2N-U721B-00-00

$27.26

8

PLATE

F2N-U732B-10-00

$6.21

9

PLATE

F2N-U732B-01-00

$3.79

10

RIVET, BLIND

90267-489U2-00

$1.43

11

BOLT, WITH WASHER

90119-06892-00

$3.79
