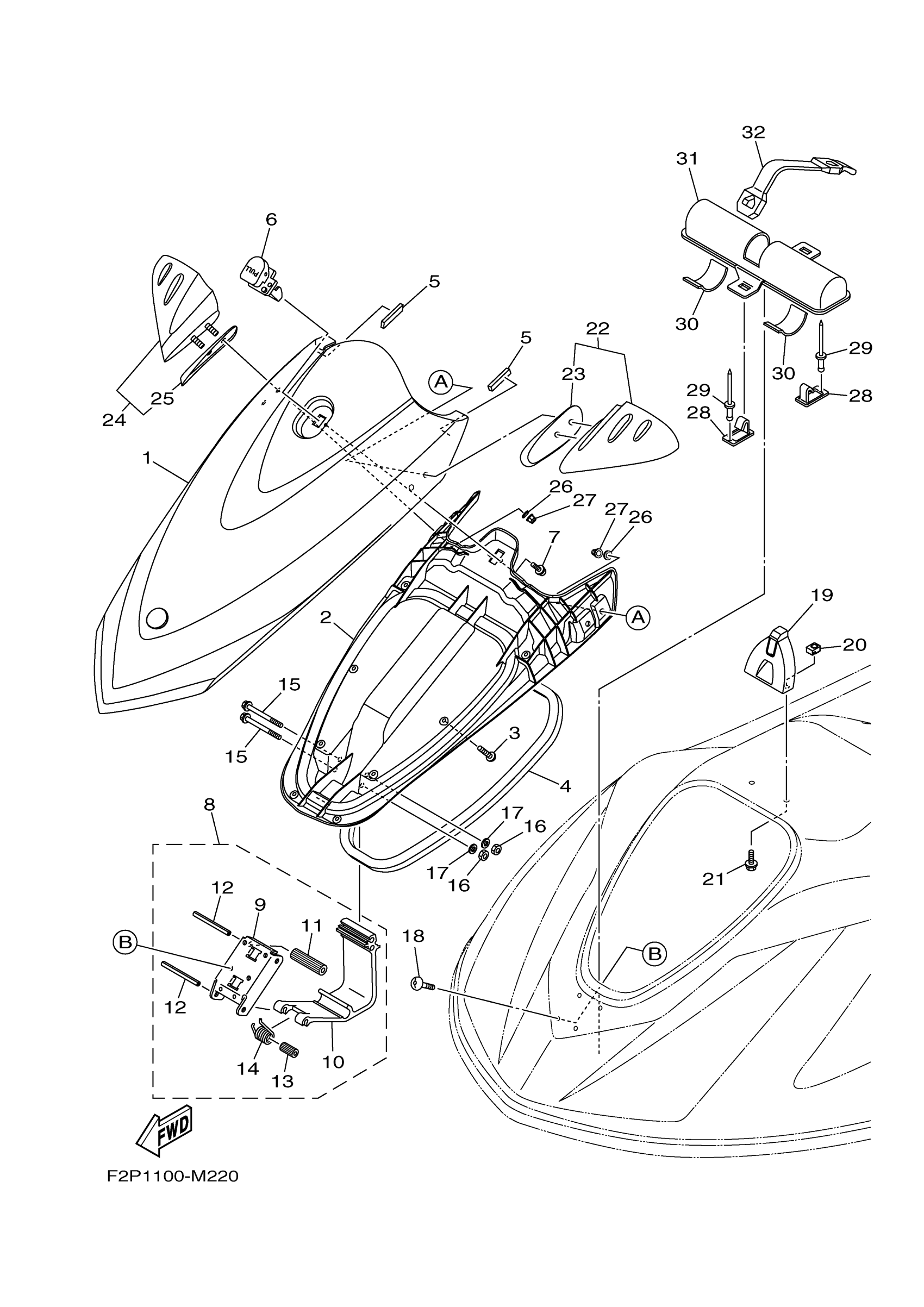

Yamaha VX1100BM (VX CRUISER_VX1100BM VX DELUXE) F2P4 2013 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (DPBM11)

F2N-U517B-10-P4

$209.08

1

LID, ENGINE ROOM (LNMP)

F2N-U517B-10-P8

$216.65

2

COVER, VENTILATOR 1

F2N-U213B-01-00

$124.23

3

SCREW(GH1)

90149-05903-00

$2.31

4

PACKING 1

F2N-U2663-01-00

$44.50

5

. PACKING 3

F1K-U266B-00-00

$1.15

6

LOCK, LID

F1K-6517C-00-00

$74.23

7

BOLT, WITH WASHER (EW3)

90119-05912-00

$4.09

8

HINGE ASSY.

F1K-U515A-00-00

$315.14

9

. PLATE, HINGE LID

F1K-U518E-04-00

$42.41

10

. HINGE, LID

F1K-U517D-05-00

$315.14

11

. ROLLER, DETENT

F1K-U135C-01-00

$9.08

12

PIN, HINGE

F1K-U517R-01-00

$3.23

13

. SPACER 1

F1K-U471E-03-00

$13.62

14

. SPRING, TORSION

F1K-U283B-02-00

$5.67

15

BOLT, FLANGE

90105-06826-00

$3.02

16

NUT, NYLON

9572R-06300-00

$2.80

17

WASHER

9299R-06200-00

$0.43

18

SCREW

F2N-67823-10-00

$2.02

19

HOOK,LID LOCK

F2N-U517F-00-00

$6.82

20

NUT

F1X-U517E-01-00

$7.11

21

BOLT, WITH WASHER

90119-06880-00

$3.52

22

MIRROR LH

F2N-U596B-00-00

$43.06

23

. SPACER 1

F2N-U471E-00-00

$18.17

24

MIRROR RH

F2N-U596C-00-00

$43.06

25

. SPACER 2

F2N-U471F-00-00

$18.92

26

WASHER

9299R-08200-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

$10.55

28

HOOK A

F1K-U5772-04-00

$6.29

29

RIVET (EU0)

90267-48938-00

$5.00

30

MAT 2

F1K-U759C-00-00

$1.72

31

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

$17.94

32

BAND 1

F2P-U828K-00-00

$5.87
