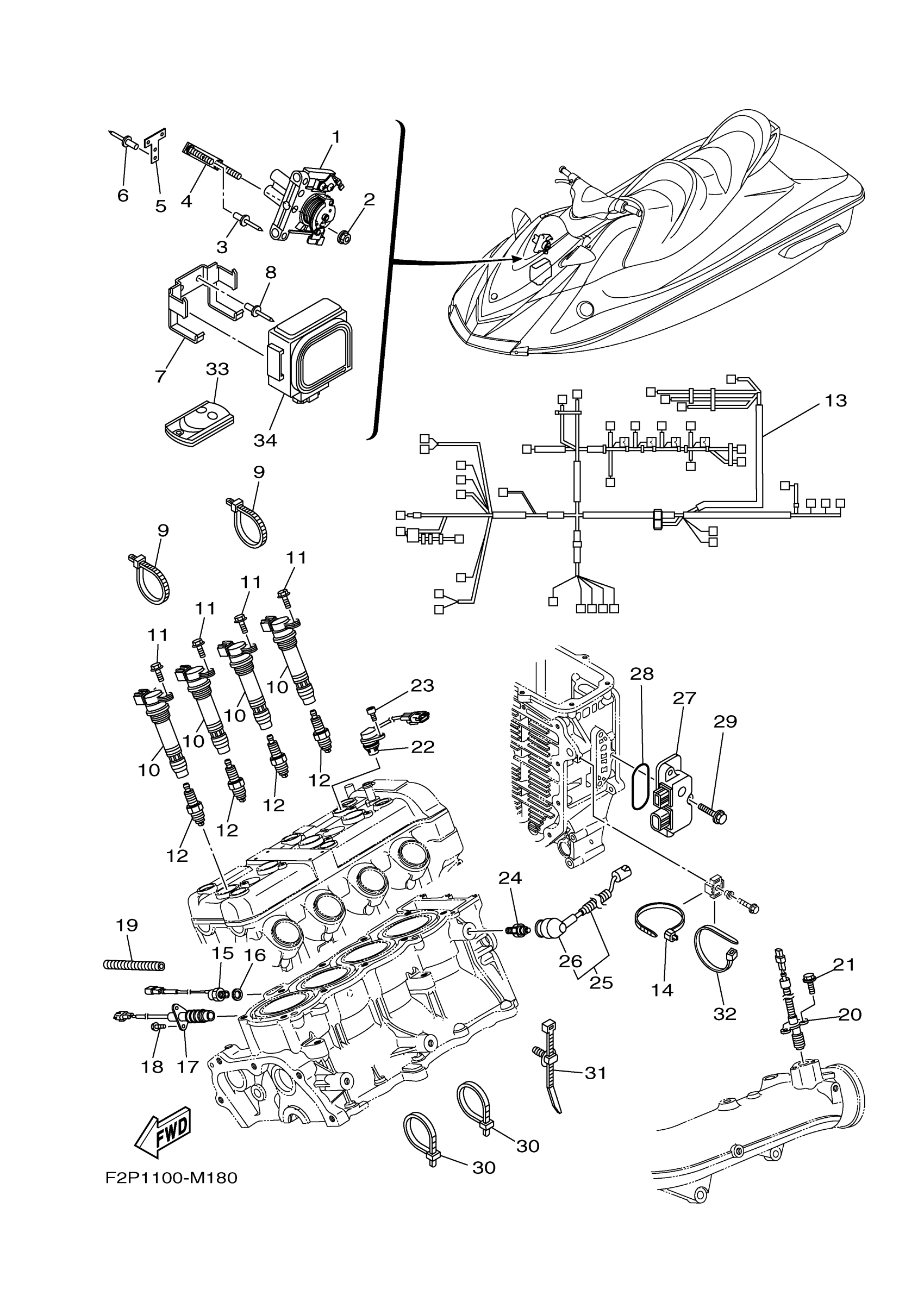

Yamaha VX1100BM (VX CRUISER_VX1100BM VX DELUXE) F2P4 2013 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

$437.30

2

NUT, NYLON (6J8)

95780-08300-00

$11.48

3

RIVET (EU0)

90267-48938-00

$4.72

4

BRACKET, THROTTLE

F2N-U7254-00-00

$11.18

5

PLATE

F2P-U8376-00-00

Unavailable

6

RIVET (EU0)

90267-48938-00

$4.72

7

BRACKET

F1W-U826C-00-00

$17.90

8

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

9

CLAMP(3XW)

90464-35132-00

$6.67

10

IGNITION COIL ASSY

6D3-82310-01-00

$196.77

11

BOLT, FLANGE(JL8)

95880-06016-00

$3.57

12

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$9.59

13

WIRE HARNESS ASSY 1

6BU-8259L-C0-00

$1,501.48

14

BAND, SWITCH CORD

437-83936-11-00

$3.34

15

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

16

WASHER, PLATE

92990-10600-00

$2.66

17

THERMO SWITCH ASSY

60E-82560-A1-00

$99.09

18

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.86

19

TUBE

EU0-67731-00-00

Unavailable

20

THERMO SWITCH ASSY

6D3-82560-01-00

$112.01

21

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.86

22

SENSOR, CAM POSITION

6D3-85896-01-00

Unavailable

23

BOLT,SOCKET

91380-06016-00

Unavailable

24

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$30.45

25

LEAD WIRE ASSY

60E-81315-01-00

$40.19

26

CAP

60E-82532-01-00

Unavailable

27

EARTH PLATE COMP.

6D3-8273J-02-00

Unavailable

28

O-RING

93210-60ME8-00

$10.43

29

BOLT, WITH WASHER

90119-06048-00

$2.24

30

CLAMP

90465-13M18-00

$1.79

31

CLAMP

90464-45002-00

$5.37

32

BAND

1UA-82591-00-00

Unavailable

33

XMTR. COMP.

6B6-86261-00-00

$272.07

34

RECEIVER COMPLETE

6B6-86265-00-00

$420.88
