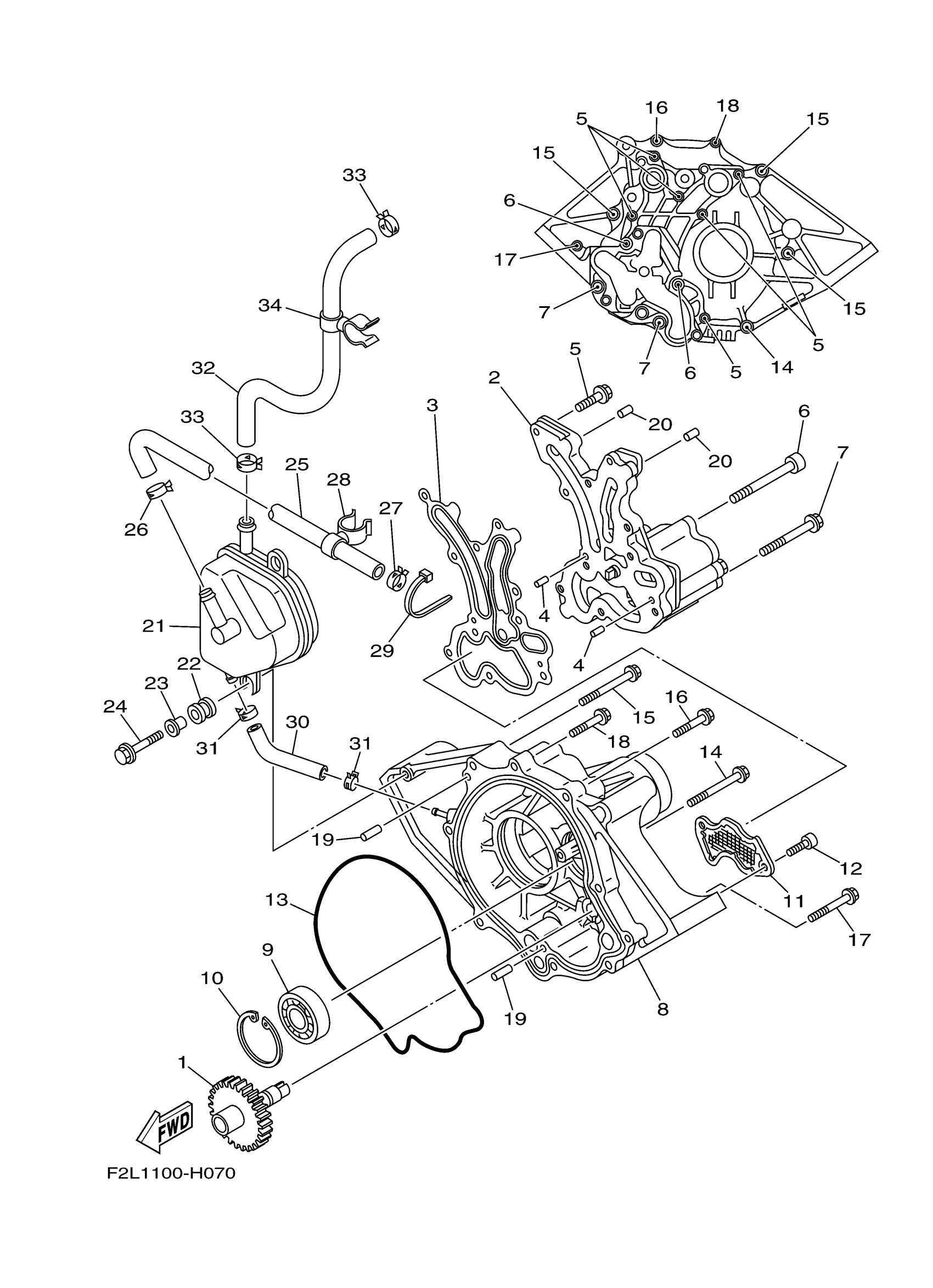

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 OIL PUMP Diagram

#

Description
Price

1

DRIVEN GEAR ASSY

6B6-13360-00-00

Unavailable

2

OIL PUMP ASSY

6D3-13300-10-00

Unavailable

3

GASKET

6B6-13563-01-00

Unavailable

4

PIN, DOWEL

93603-12221-00

Unavailable

5

BOLT, WITH WASHER(61B)

97513-06525-00

$1.49

6

BOLT, HEXAGON SOCKET HEAD

90110-08041-00

Unavailable

7

BOLT, WITH WASHER

90119-08085-00

Unavailable

8

COVER, PUMP GEAR

6B6-13327-02-94

Unavailable

9

BEARING

93306-30441-00

$63.99

10

CIRCLIP(26H)

99009-52500-00

$12.49

11

STRAINER, OIL

6B6-13411-00-00

Unavailable

12

BOLT,SOCKET

91317-06016-00

$1.25

13

GASKET

6B6-13475-01-00

Unavailable

14

BOLT, WITH WASHER

90119-08045-00

Unavailable

15

BOLT, WITH WASHER

90119-08034-00

Unavailable

16

BOLT, WITH WASHER

90119-08043-00

Unavailable

17

BOLT, WITH WASHER

97513-06555-00

Unavailable

18

BOLT, WITH WASHER (62X)

97513-06535-00

Unavailable

19

PIN, DOWEL

93608-16M16-00

Unavailable

20

PIN, DOWEL

93606-25M00-00

Unavailable

21

SEPERATOR, OIL

6D3-11164-00-00

Unavailable

22

DAMPER, IGNITION C

6A0-82317-01-00

Unavailable

23

. COLLAR

90387-06119-00

Unavailable

24

BOLT, WITH WASHER

90119-06294-00

Unavailable

25

PIPE, BREATHER 3

6D3-11126-00-00

Unavailable

26

CLIP

90467-170A4-00

Unavailable

27

CLIP

90467-170A4-00

Unavailable

28

CLAMP

90464-21001-00

Unavailable

29

CLAMP

90464-18006-00

Unavailable

30

PIPE, BREATHER 4

6D3-11125-00-00

Unavailable

31

CLIP

90467-110A1-00

Unavailable

32

PIPE, BREATHER 1

6D3-11166-00-00

Unavailable

33

CLIP

90467-170A4-00

Unavailable

34

CLAMP

90464-21001-00

Unavailable
